Год начала выпуска: 1984
Регион: Америка

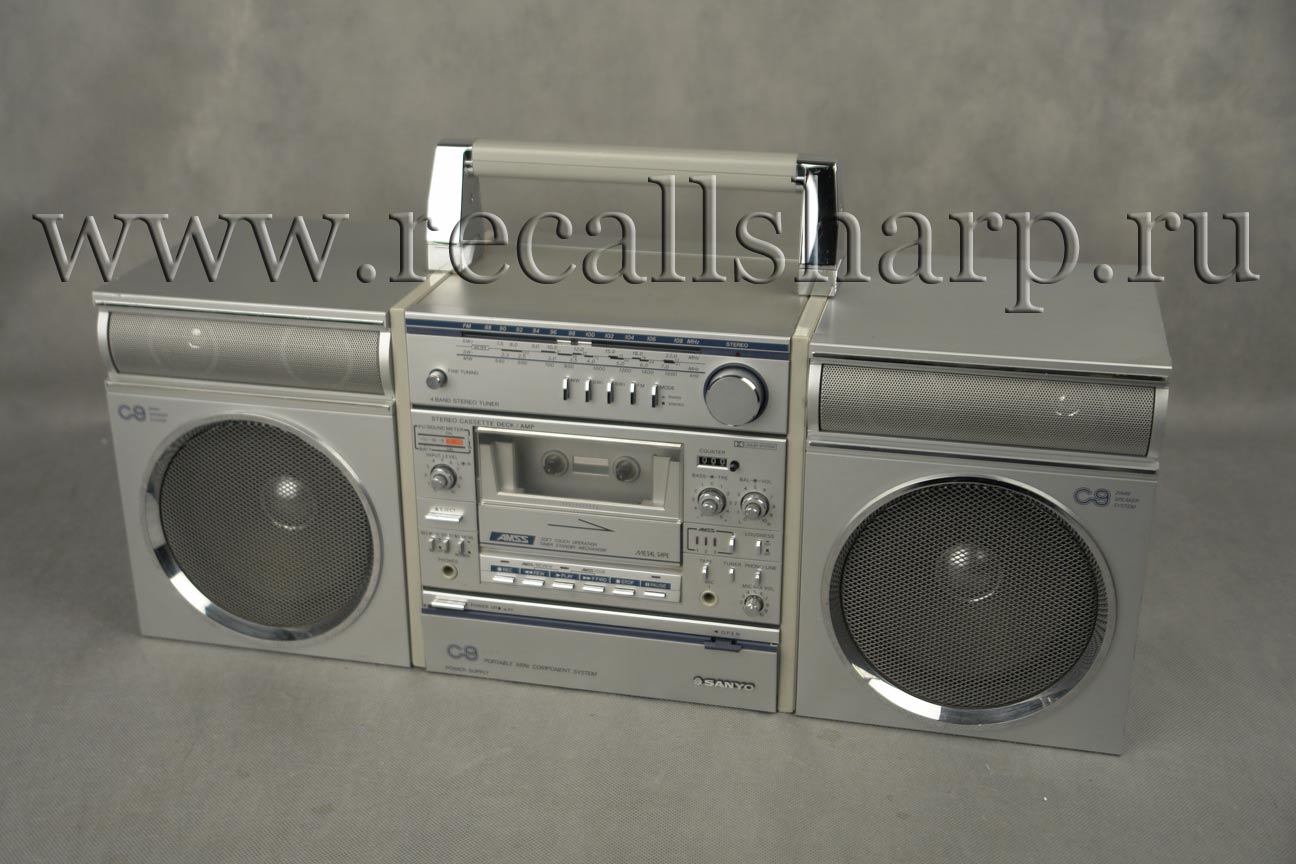

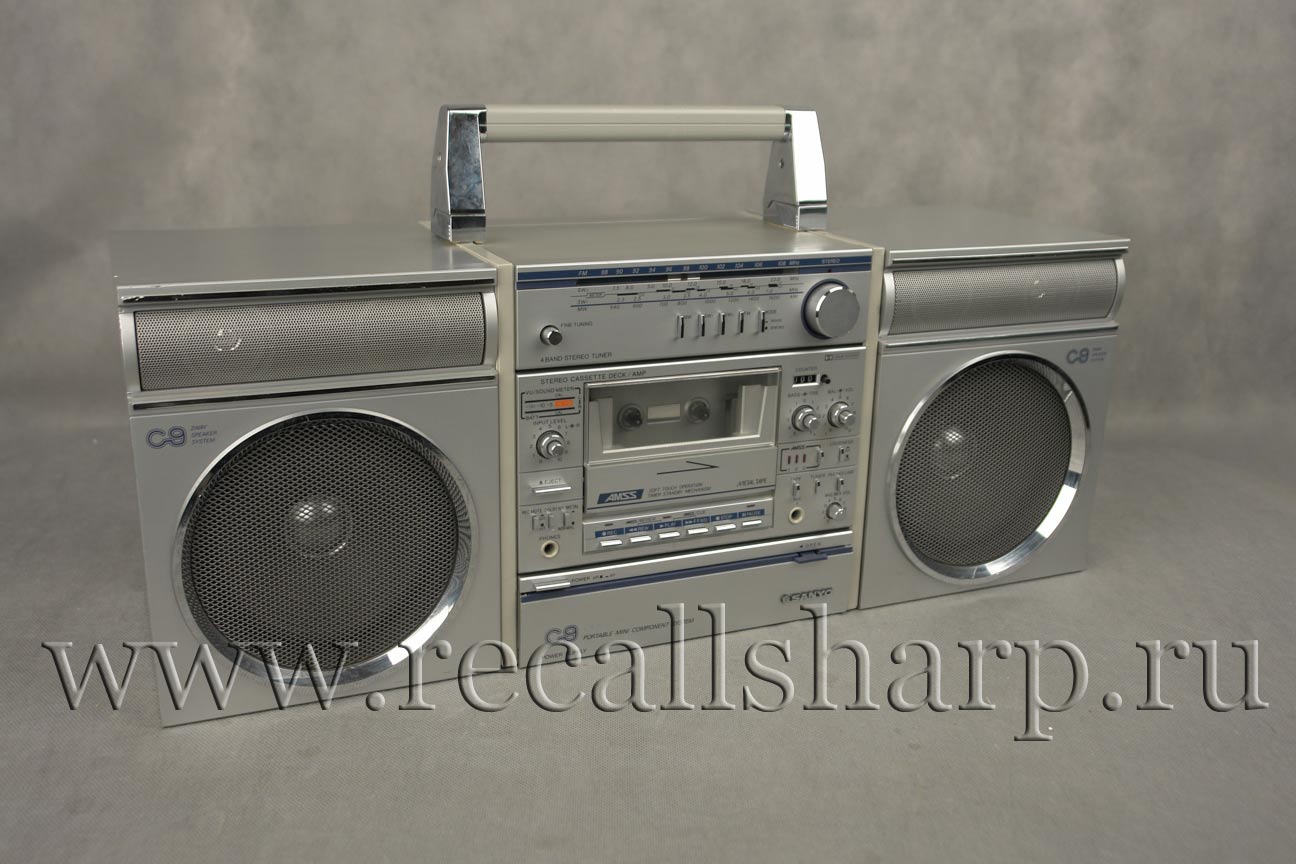

Specifications Sanyo C-9

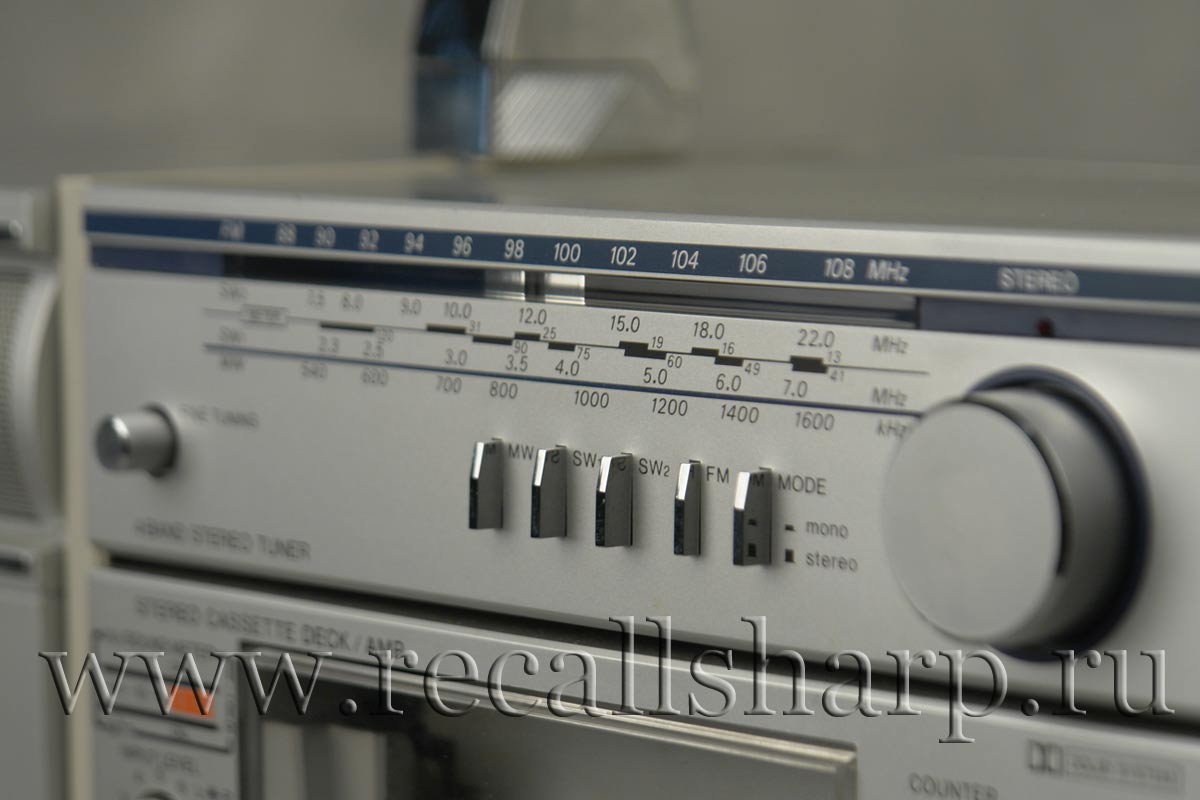

C9T TUNER SECTION
FM section Frequency range.............. 87.5 - 108 MHz
Usable sensitivity .............. 2.0μV/300Ω(mono)
Signal to noise ratio (1 μ V ANT.) .... 80 dB (mono)
Harmonic distortion (1 kHz) ....... 0.5% (mono)
Aerial input ................. 300 ohms balanced
MW/SW1/SW2 section
Frequency ranqe ....... MW: 530 - 1605 kHz ,
SW1:2.3 -7.3 MHz ,
SW2: 7.3 - 22 MHz
Sensitivity .............. 300 μ V/m (MW) . .
250 μ V/m (SW1) .
. ........... 10μ V (SW2)
Signal to noise ratio (10 mV/m)...... 50 dB (MW)
Aerial..................... Ferrite bar aerial and external aerial terminal
Dimensions (Approx.)...........215(W) x 205(D) x 58(H) mm
(8-1/2" x 8-1/16" x 2-5/16")
Weight (Approx) ............ 1.15 kg (2 lbs. 9 ozs.)

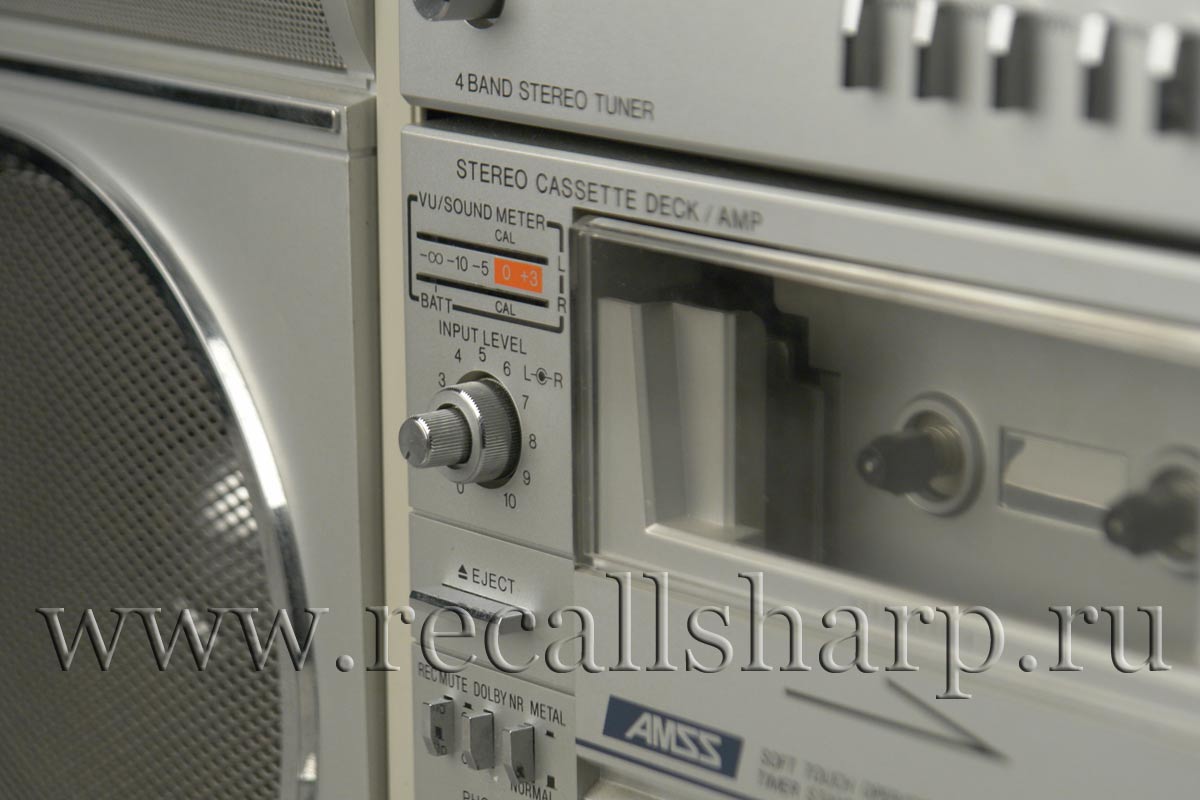

C9D CASSETTE DECK/AMPLIFIER SECTION

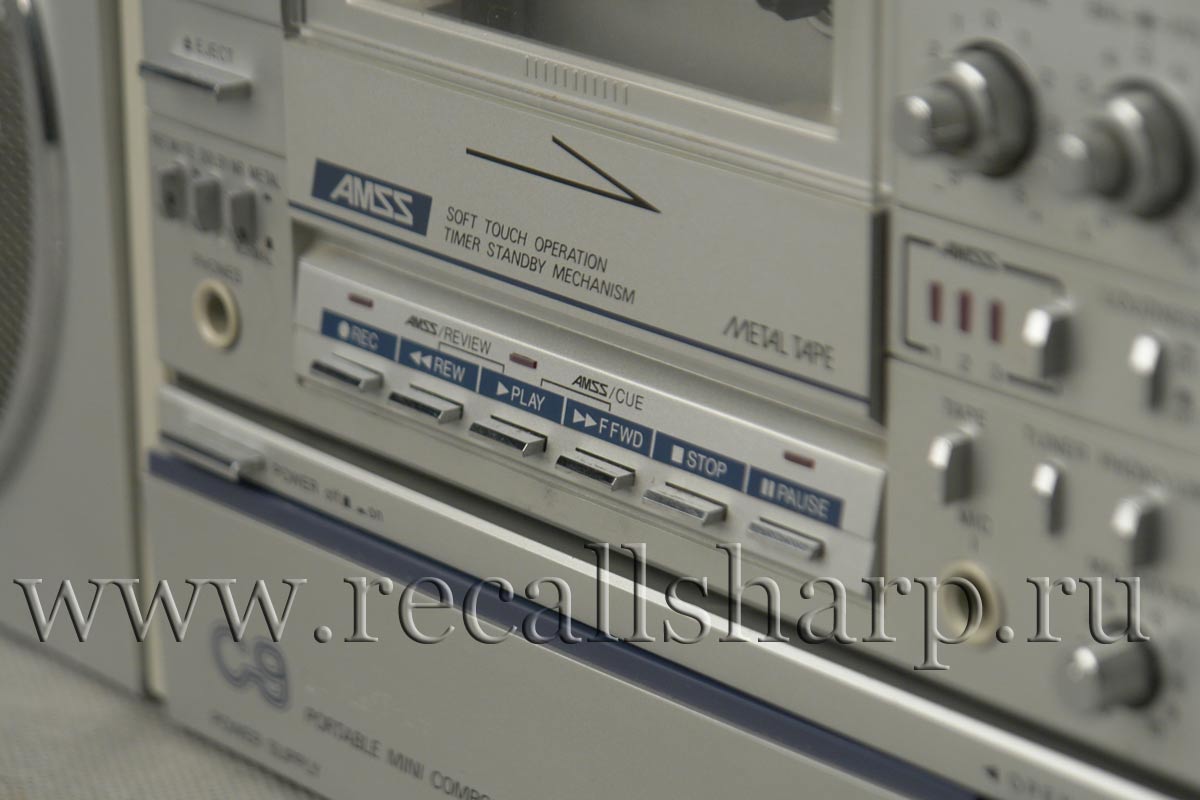

Cassette deck section
Tape ..................... Metal, normal tape
Recording system............. AC bias, 4-track stereo
Erasing system.................. AC erasing, 2-track
Tape speed ................. 4.75 cm/sec. (1-7/8 i.p.s.)
Rewind and fast forward time....... Approx. 110 sec. (C—60)
Wow and flutter ............. 0.05% (WRMS)
Frequency response ............. 30- 17,000 Hz (metal)
. . . 30- 14,000 Hz (normal)
Signal to noise ratio(metal tape) ..... 64 dB (Dolby NR on)
. . . ... 56 dB (Dolby NR off)

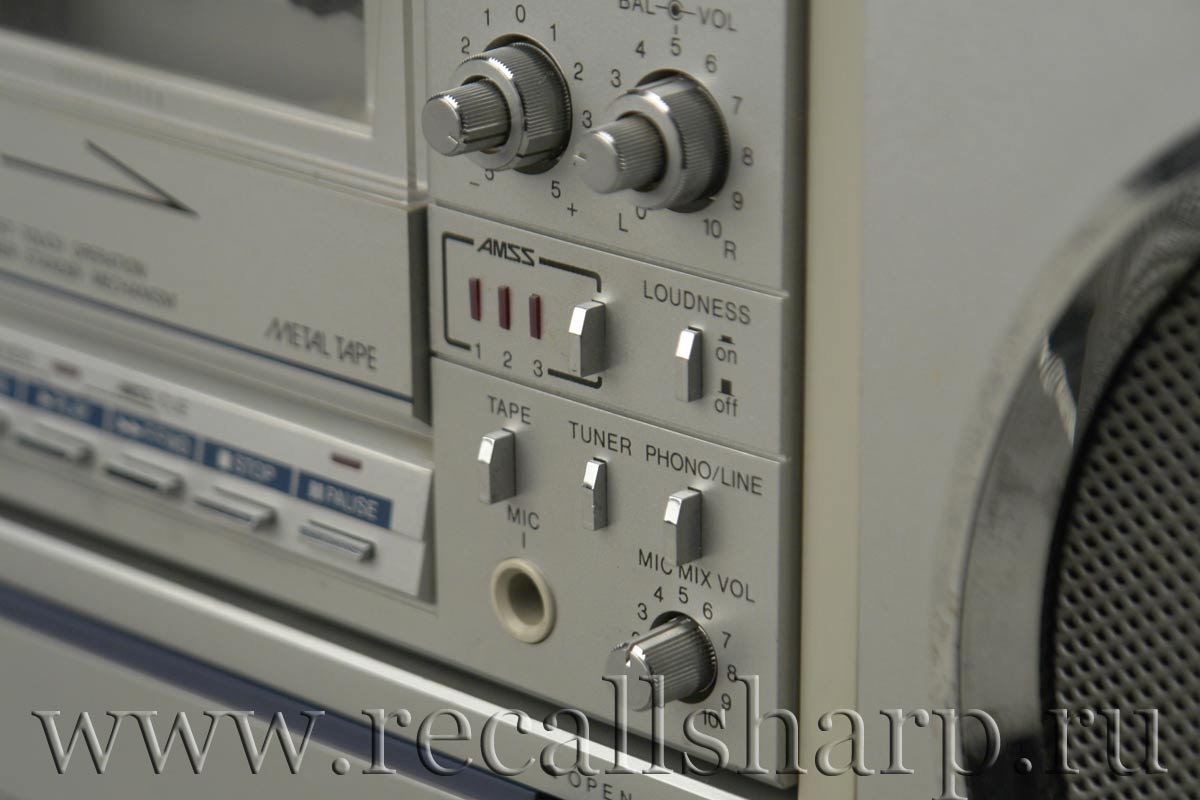

Amplifier section
Output power ............. 30 W x 2 maximum music
power (at 6 ohms Ioad, AC)
Inputs . . .......MIC: 1.5 m/10 kohms
PHONO: 3.5mV/47 kohms .
.............. LINE IN: 350mV/20 kohms
Outputs ....... LINE OUT: 0.3V
.................... SPEAKER: 6-8 ohms
.................... PHONES: 8 ohms to 10 kohms
Tone control response
BASS . ..... ± 8 dB (at 100 Hz)
TREBLE . .............. ± 8dB (at 10 kHz)
Loudness control response
100 Hz/10 kHz ........... +8dB/+4dB
Signal to noise ratio ........... 76 dB (phono)
General
Dimensions (Approx.)...........215 (W) x 206 (D) x 120.5 (H) mm
(8-1/2" x 8-1/8" x 4-3/4")
Weight (Approx.) .............2.9 kg (6 lbs. 6 ozs.)

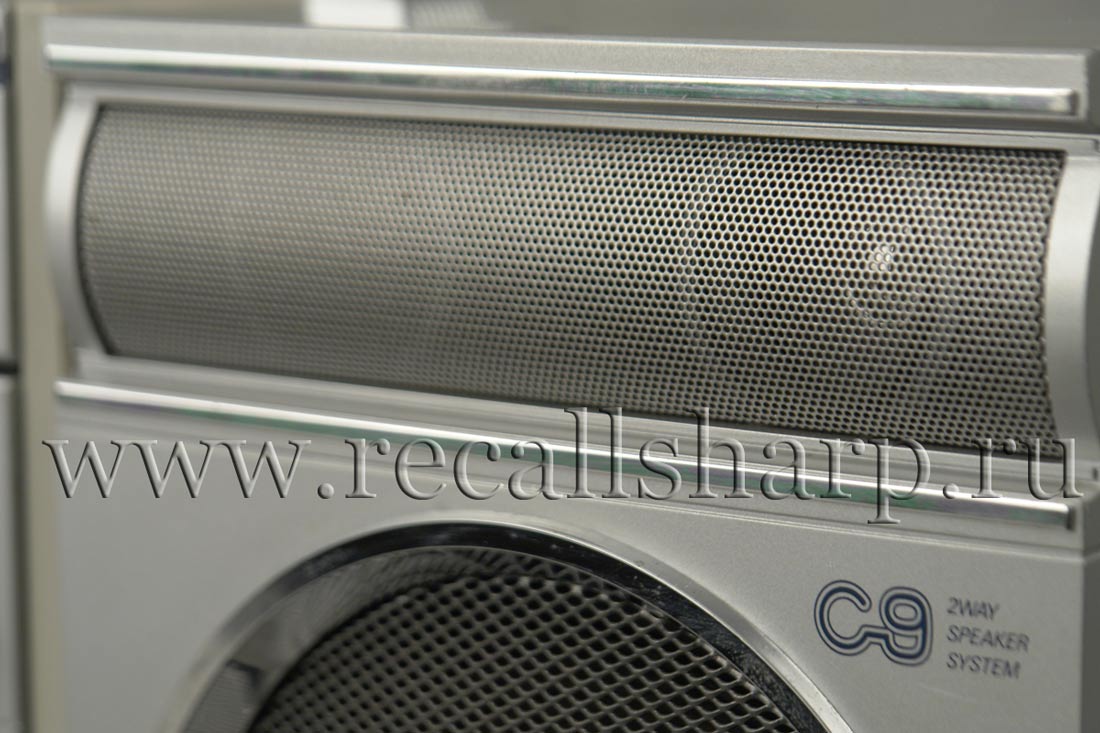

C9S SPEAKER SYSTEM
Type................... 2 way speaker system,
Tweeter 4 cm, Woofer 16 cm
Impedance ..................6 ohms
input power ............30 W (maximum)
Dimensions (Approx.)...........180 (W) x 180 (D) x 231 (H) mm
(7-1/16" x 7-1/16" x 9-1/8")
Weight (Approx.) ..............2.1 kg. (4 lbs. 10 ozs.) x 2

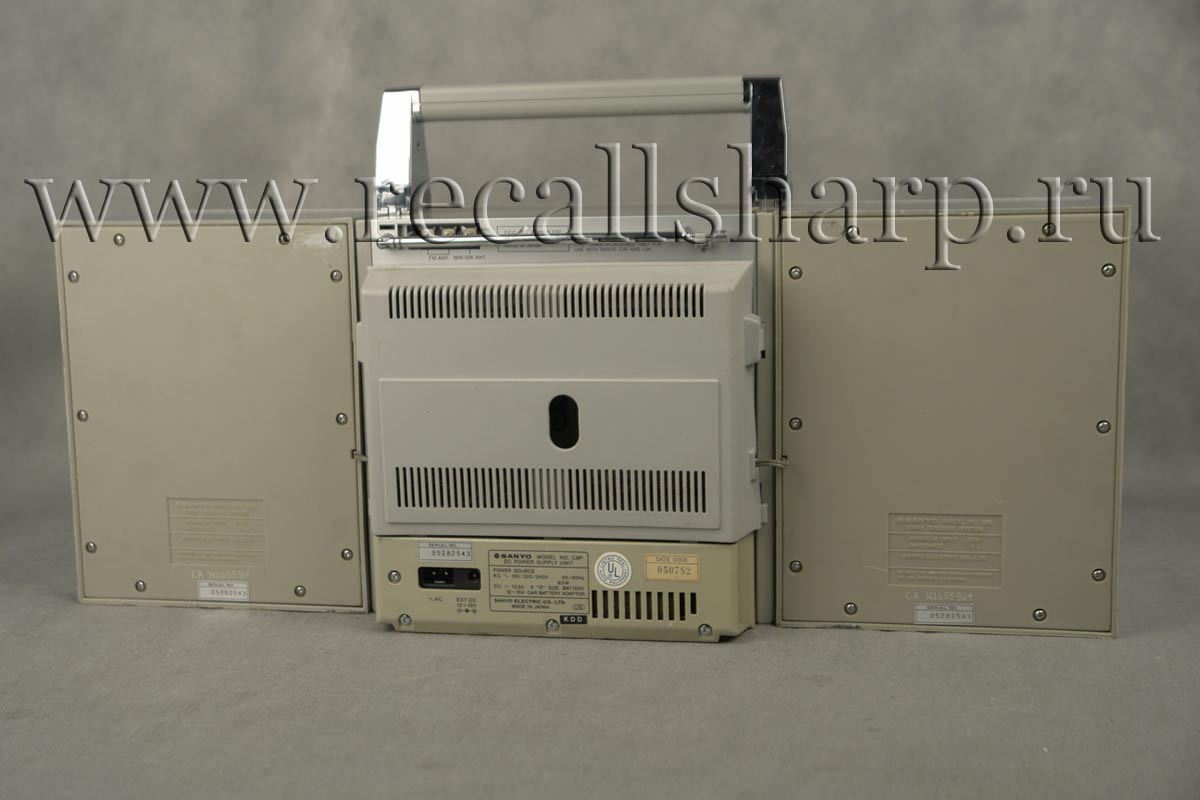

C9P POWER SUPPLY UNIT
Power requirements.............AC: 120/220/240V, 50/60 Hz
. ..................DC: 12- 15V
car battery adaptor
....................DC: 13.5 V "D" (UM-1) x 9
Power consumption.............40 W
Dimensions (Approx.)...........215 W) x225 (D) x 62.5 (H) mm
(8-1/2" x 8-7/8" x 2-7/16")
Weight (Approx.) ..............3.3 kg. (7 lbs. 5 oxs.) including batteries
Total dimensions of the system C9 . . . . 597 (W) x 232 (D) x 306.5 (H) mm
(23-1/2" x 9-1/8" x 12-1/16")
Total weight of the system C9.......12.4 kg. (27 lbs. 5 ozs.) including batteries
* Specifications subject to change without notice.
|
