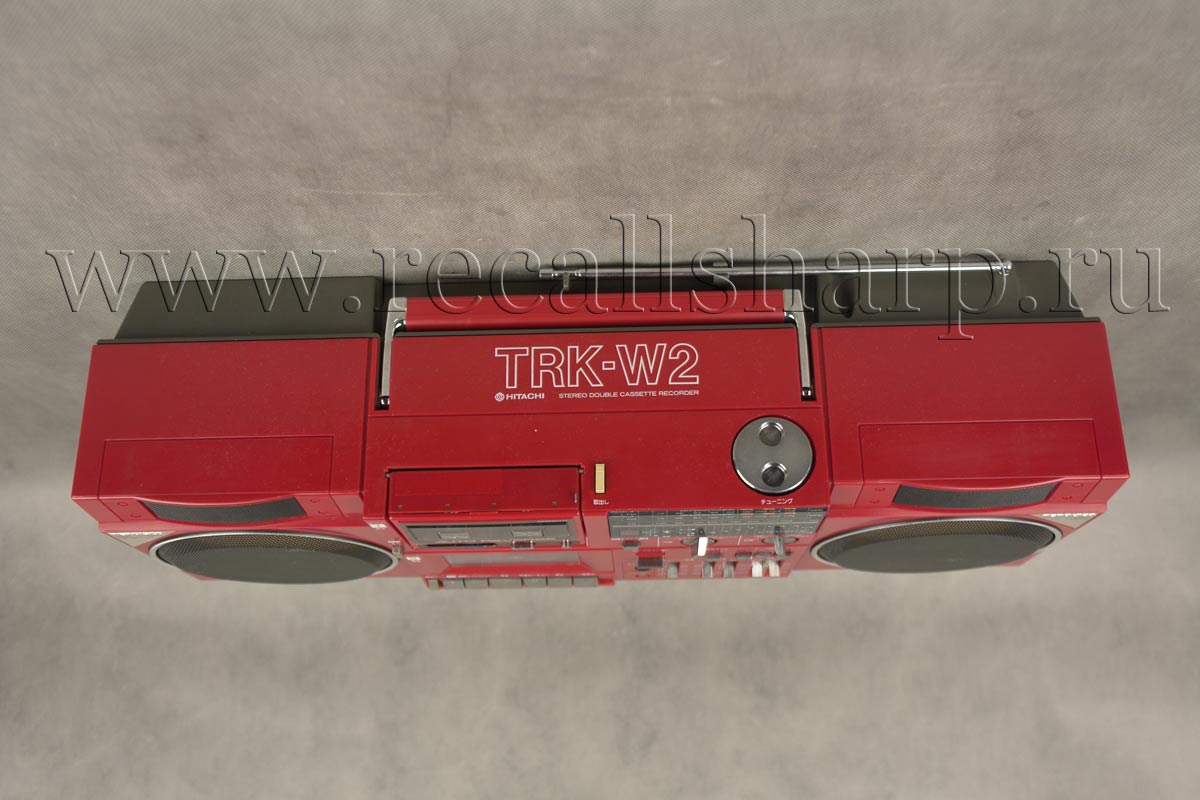

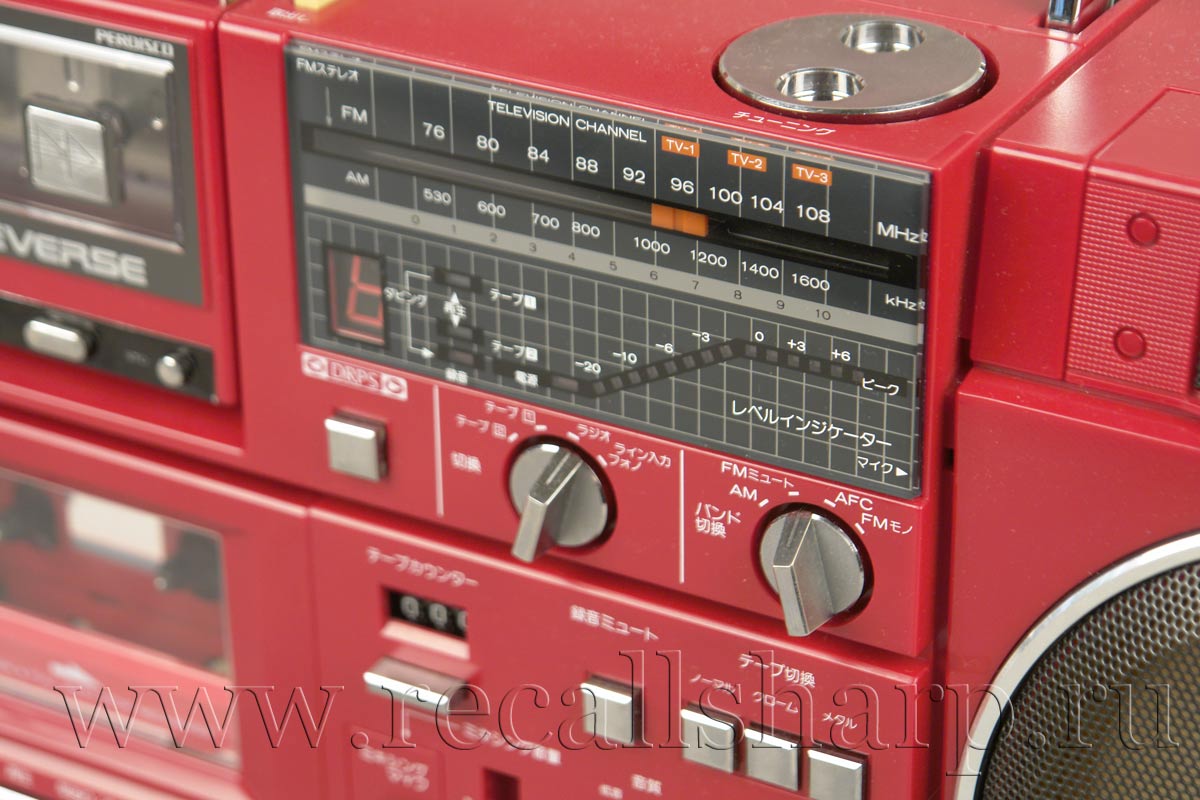

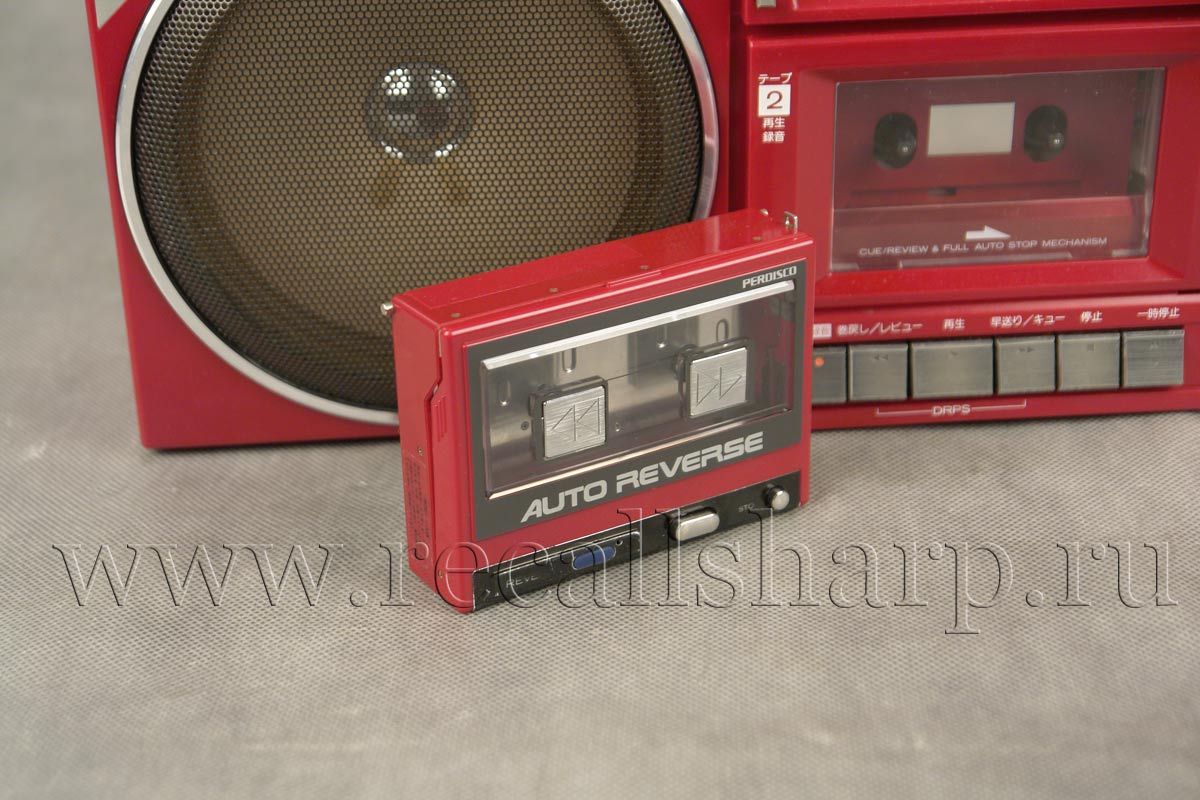

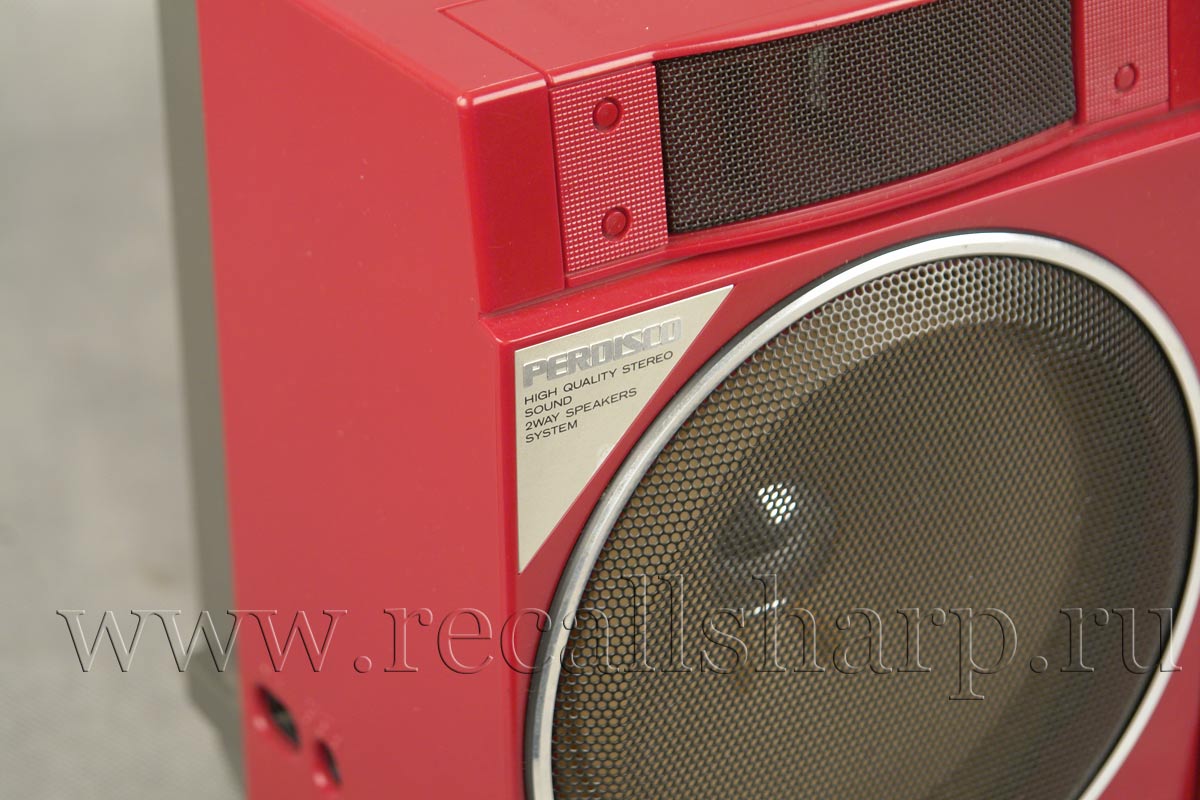

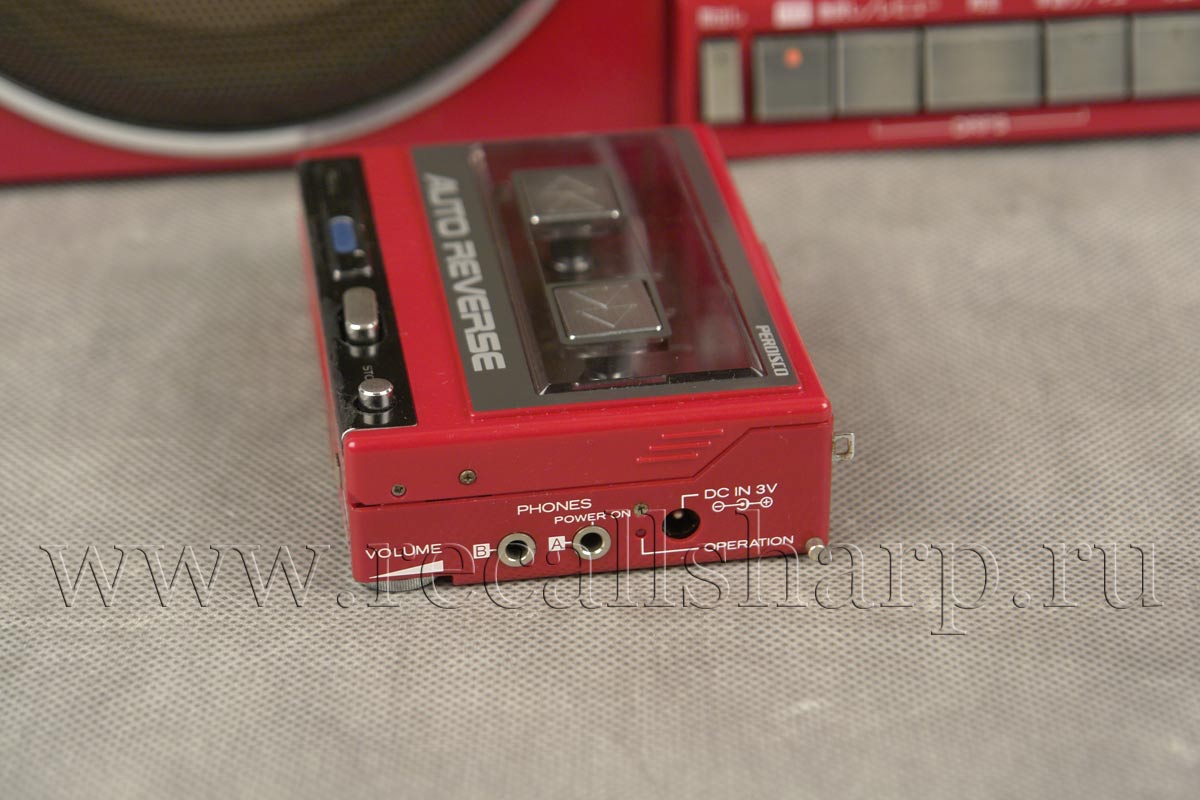

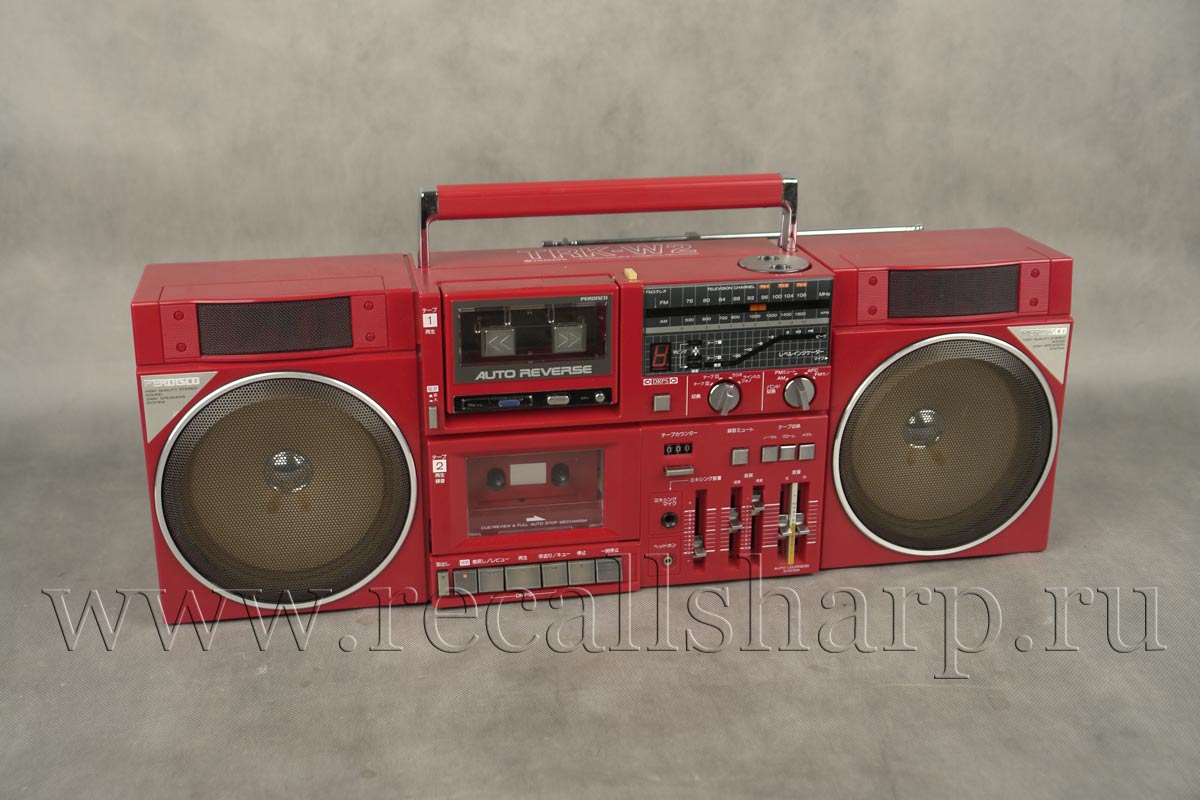

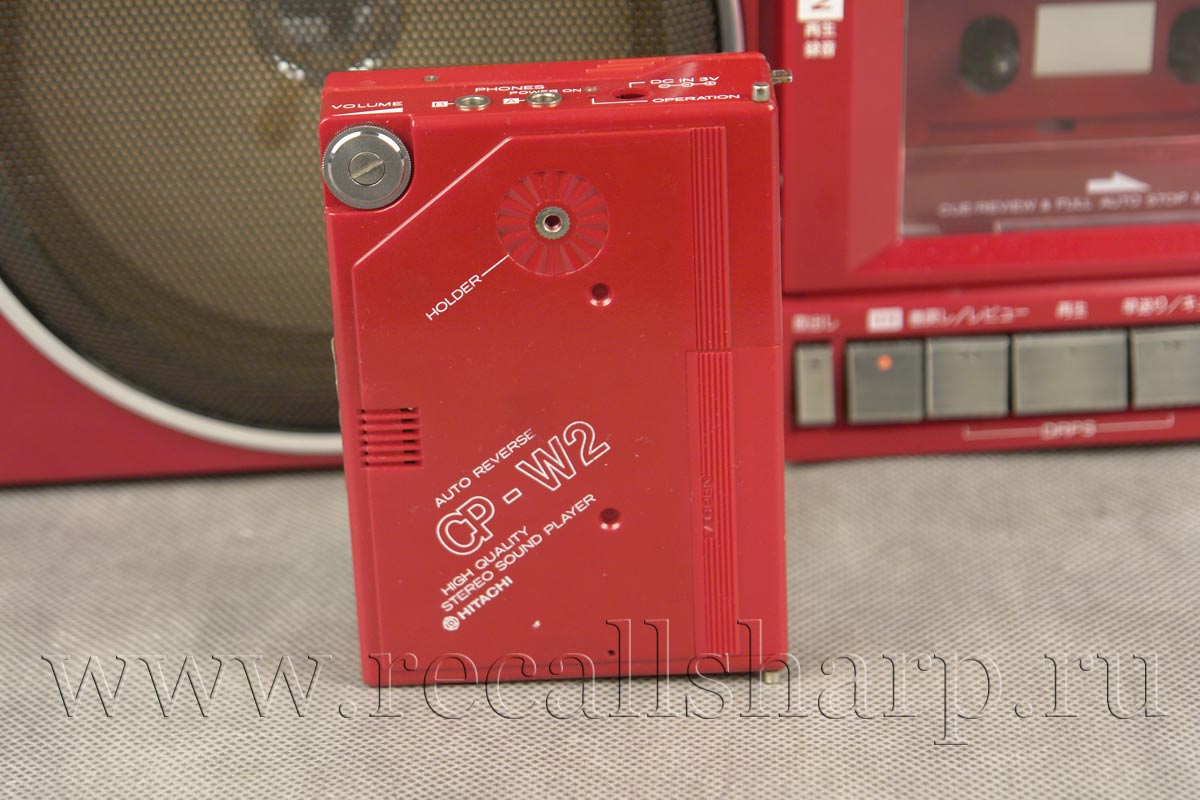

Hitachi TRK-W2 (Perdisco) red



: 1983


Specification

Power(Mains) Supply: AC: 100V. 50/60Hz
DC:12V(IEC R20x8)
Car: Use car battery adaptor
Power (Mains) Consumption: 15 W

Dimensions: 600(W)x215(H)x169(D)mm
Weight: 6.5kg
Power output: 15W/CH (PMPO)
Speaker: 16 cm, 3.2 ohms x 2
5 cm, 4 ohms x 2
TUNER SECTION
Circuit System: FM/AM 2-band superheterodyne
Tuning Range: FM: 76 to 108 MHz

AM: 530 to 1605 kHz

Sensitivity: FM: 10 dB (pra.) 2dB (max.)
MW: 42 dB (pra.) 30 dB (max.)

Intermediate Frequency: FM: 10.7 MHz
SW/MW/LW: 468 kHz
Antennas (Aerials):
FM/SW: Telescopic antenna or
External antenna MW/LW: Ferrite-core antenna

TAPE RECORDER
Tape: Cassette tape (C-30, 60, 90)
Tape Speed: 4.75 cm/s
Recording System: AC bias, 57 kHz
Erasing System: AC erasing
Frequency Response: Normal: 50 ~ 13,000 Hz
Cr02: 50 ~ 14,000 Hz
Metal 50 - 15,000 Hz
Fast Forward or
Rewinding Time: 100 sec (Using C-60)
Distortion: 0.08%WRMS
S/N(Signal to Noise Ratio): 50 dB (Dolby NR OFF)
60 dB (Dolby NR ON)
Cross Talk: 50 dB
Erase Ratio: 65 dB

:
Hitachi TRK-W2 (Perdisco)
Hitachi TRK-W1 W
Hitachi TRK-W1(Perdisco)
