SHARP 15 1912 ., . "". 1915 . " " , . 1923 . . , Haykawa Metal Works, - Sharp Corparation.

1925 . , , . , . , SHARP. , SHARP .

1926 . , . 1951 . , 1952 . RCA. SHARP TV3-14T.

1952 . . 1961 . .

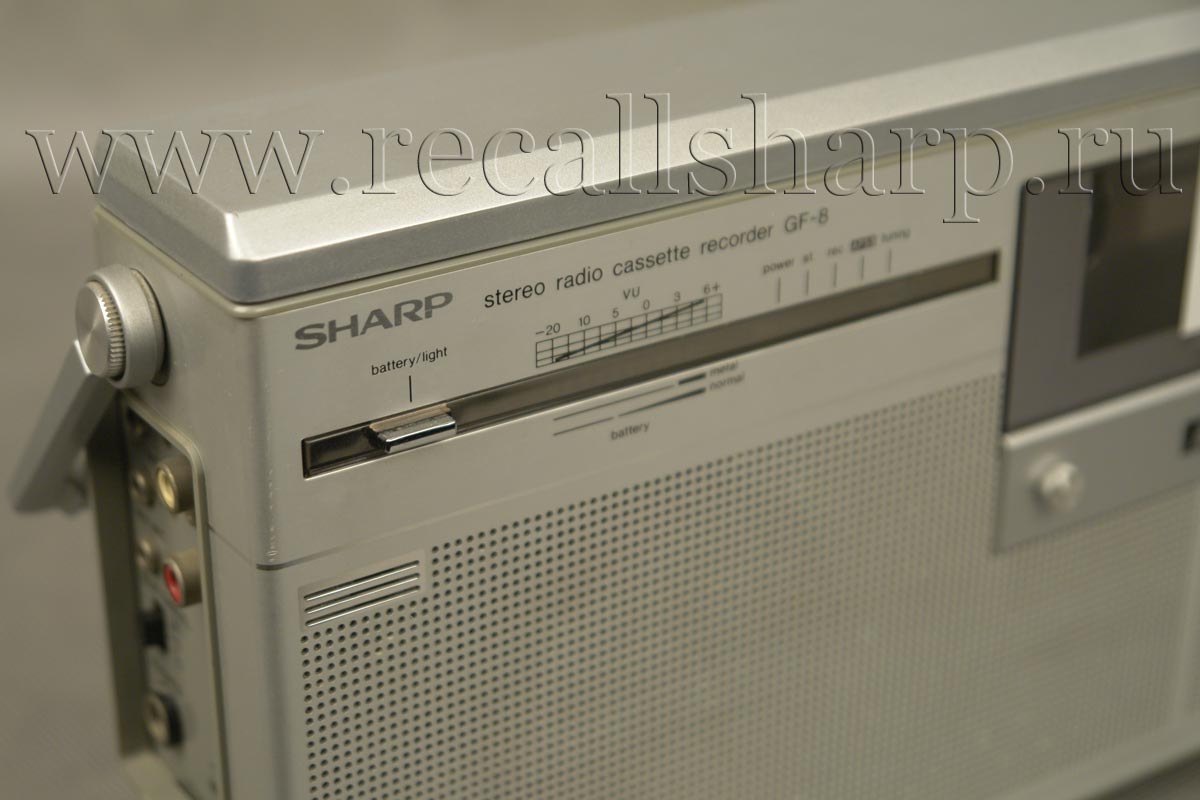

Sharp GF-8



: 1980


SPECIFICATIONS (SHARP GF-8)

GENERAL
Power source: DC 9V (6 UM/SUM-1, R20, HP-2, "D" batteries or external DC supply)

DC 3V (2 UM/SUM-3 R6 or HP-7 batteries for microprocessor)

Speakers: 9.2cm (Woofer) 2 Cone Type;


Output power: MPO 8.4W(4.2W+4.2W) using AC adaptor
Semiconductors: 1-LSI

13-IC's (Integrated circuits)

1 Hall IC

37-Transistors

3-FET's

45-Diodes

11-LED's
Dimensions: Width; 396mm

Depth; 69.5mm

Height; 165mm
Weight: 2.8kg. (without batteries)

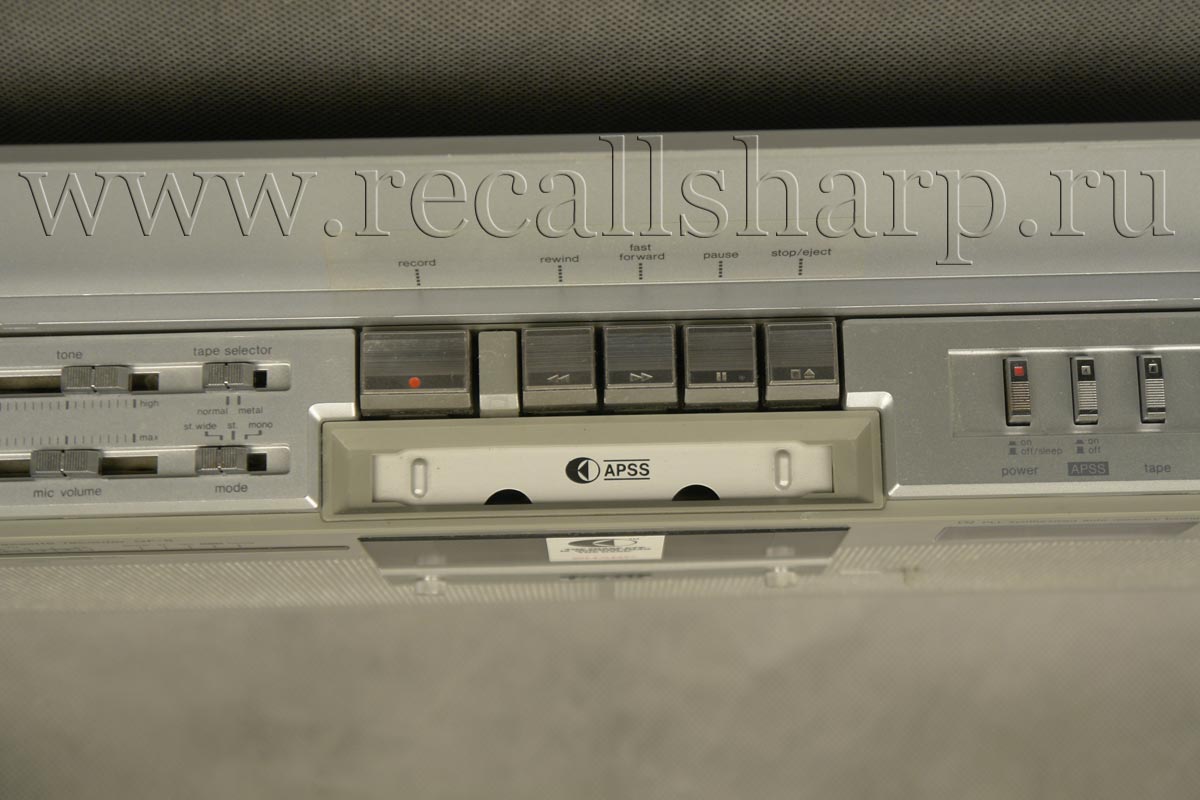

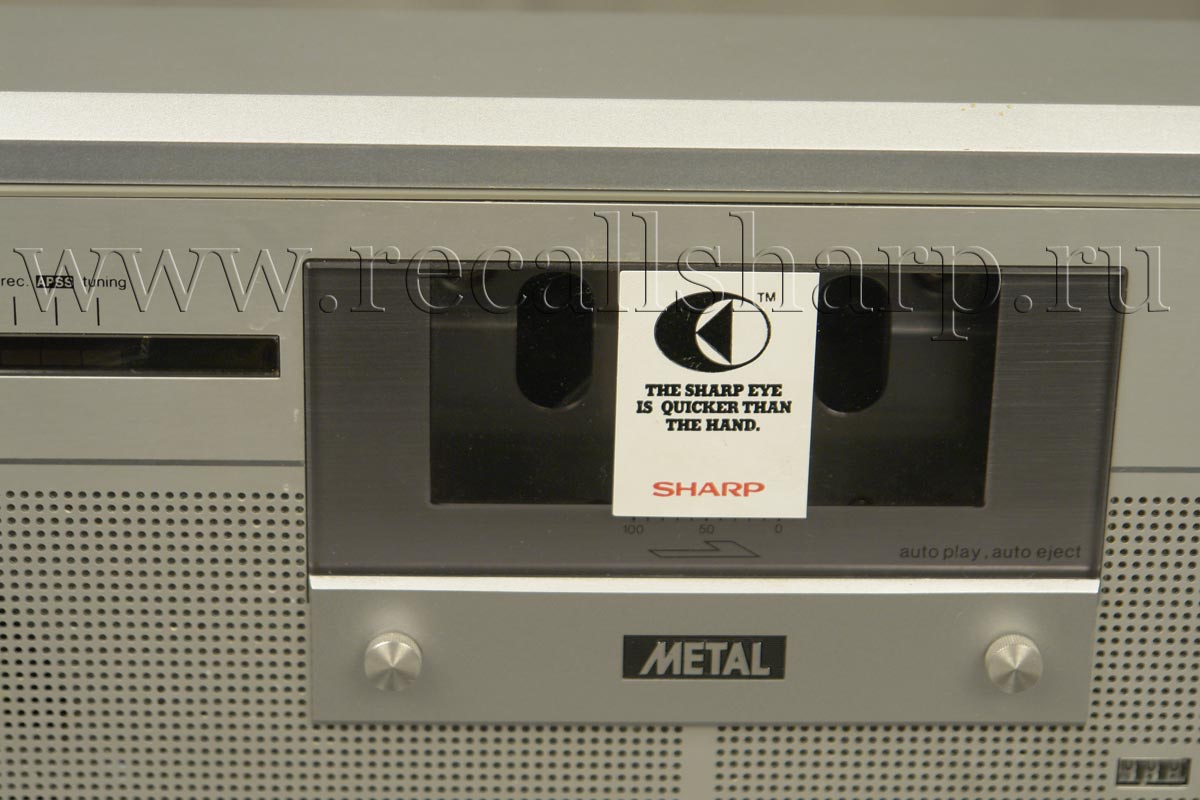

TAPE RECORDER/PLAYER
Tape: Philips-type compact cassette tape
Frequency response:

40Hz- 16000Hz (CrO2 tape)

40Hz- 12000HZ (normal tape)
S/N ratio: 50 dB

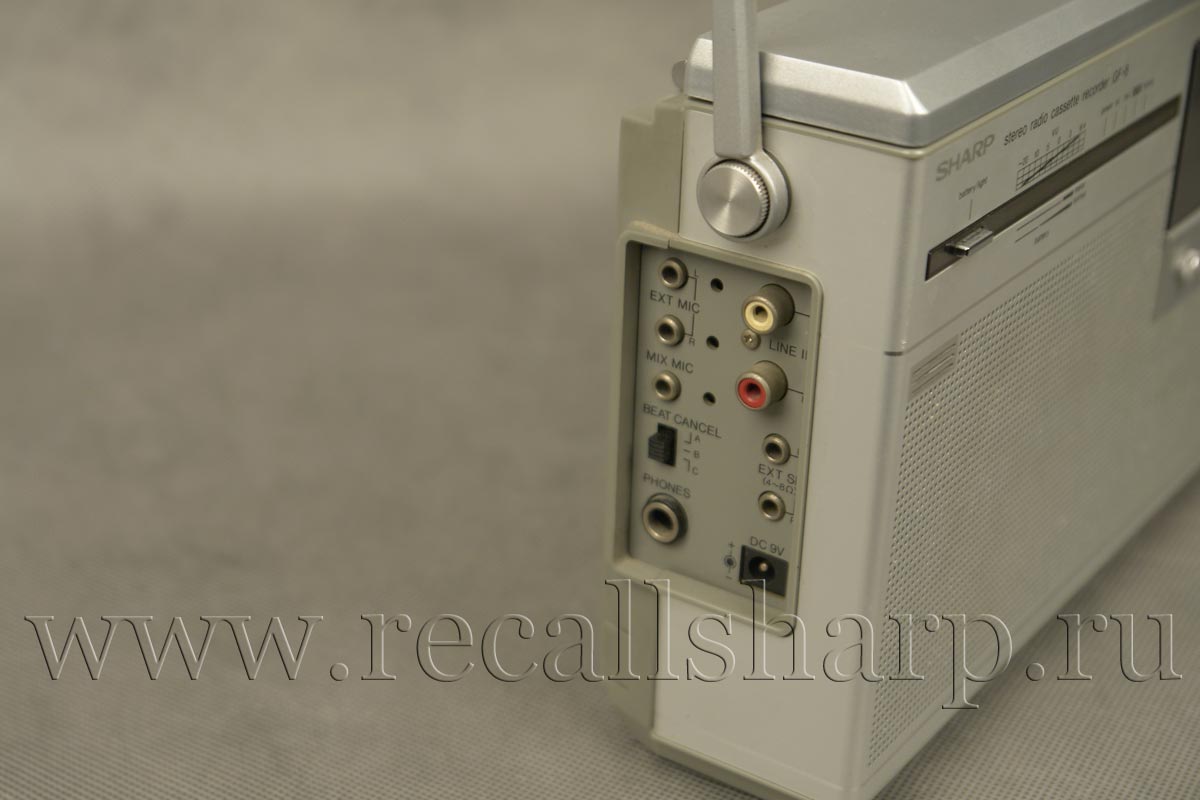

Input sensitivity and input impedance:

Ext. Mic; 600 ohms

Mixing Mic; 600 ohms

Line in; 0.1 mV/100k Ohms
Output level and loaded impedance:

Headphones; 8 ohms to 25 ohms

External speaker; 4 ohms to 8 ohms


RADIO
Frequency range: AM;530 kHz-1600 kHz

(10kHz intervals)

or 531 kHz-1602 kHz

(9kHz intervals)

FM; 87.5 MHz - 108MHz (0,1MHz intervals)



:
Sharp GF-8 H
Sharp GF-8 S
