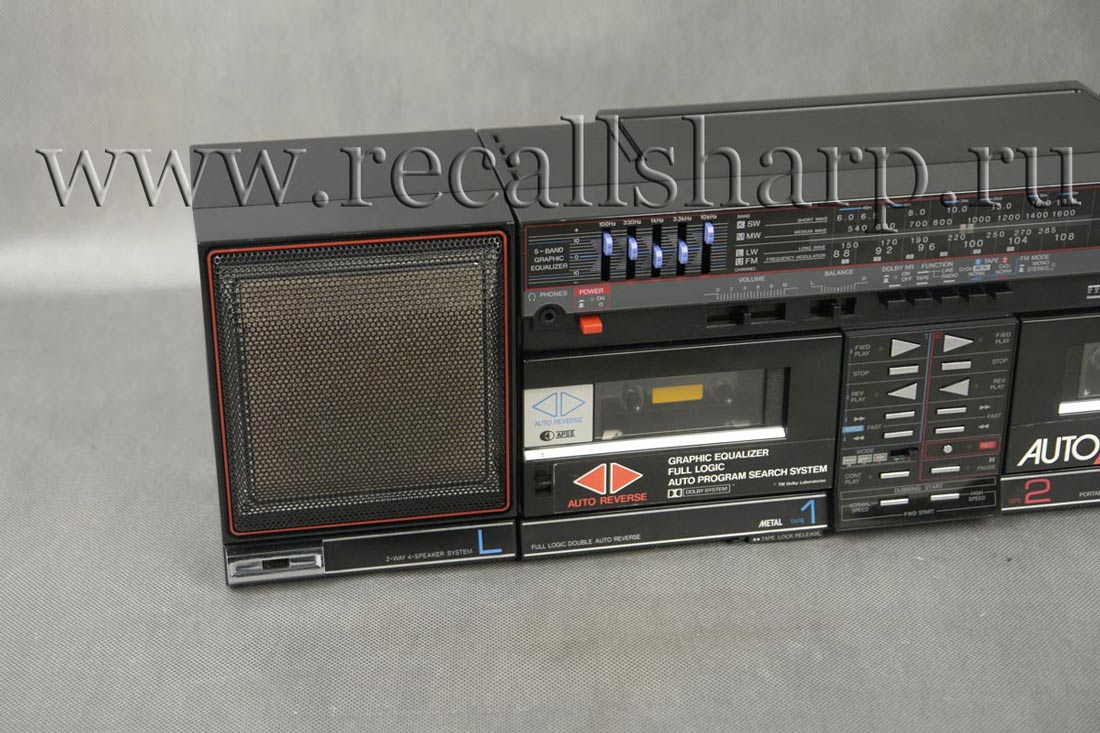

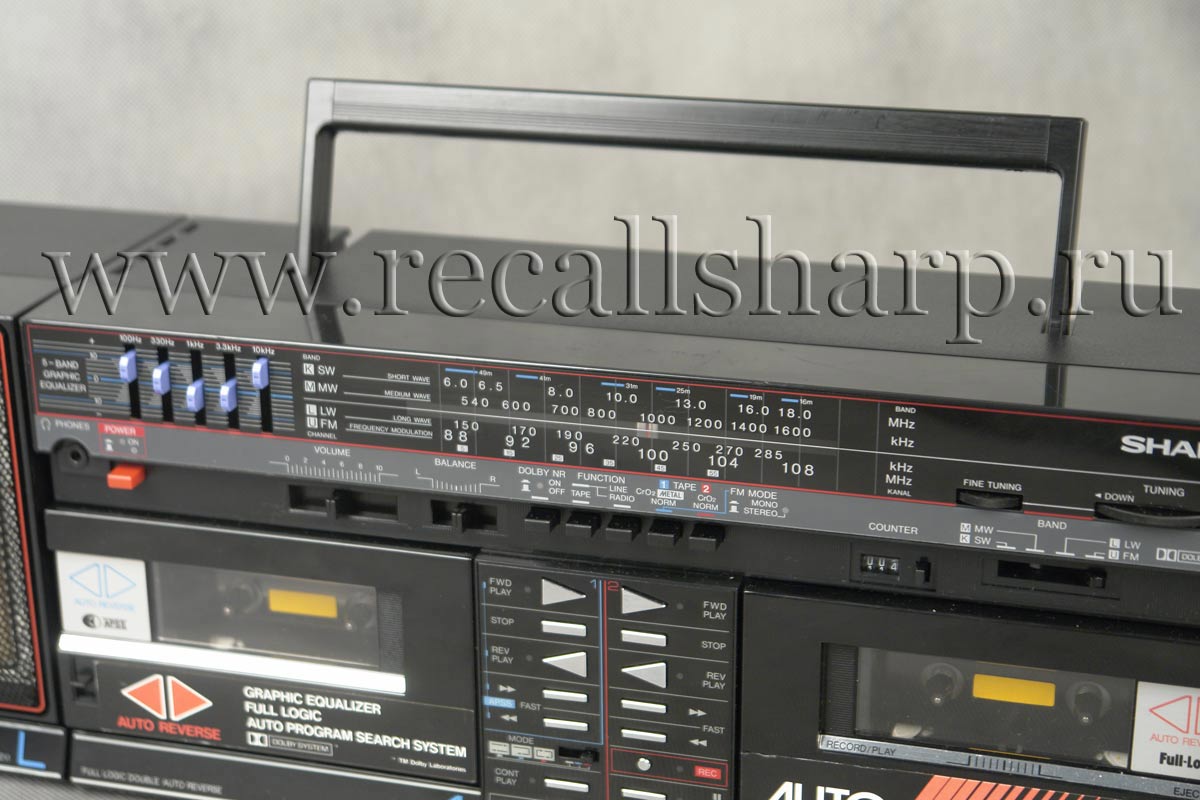

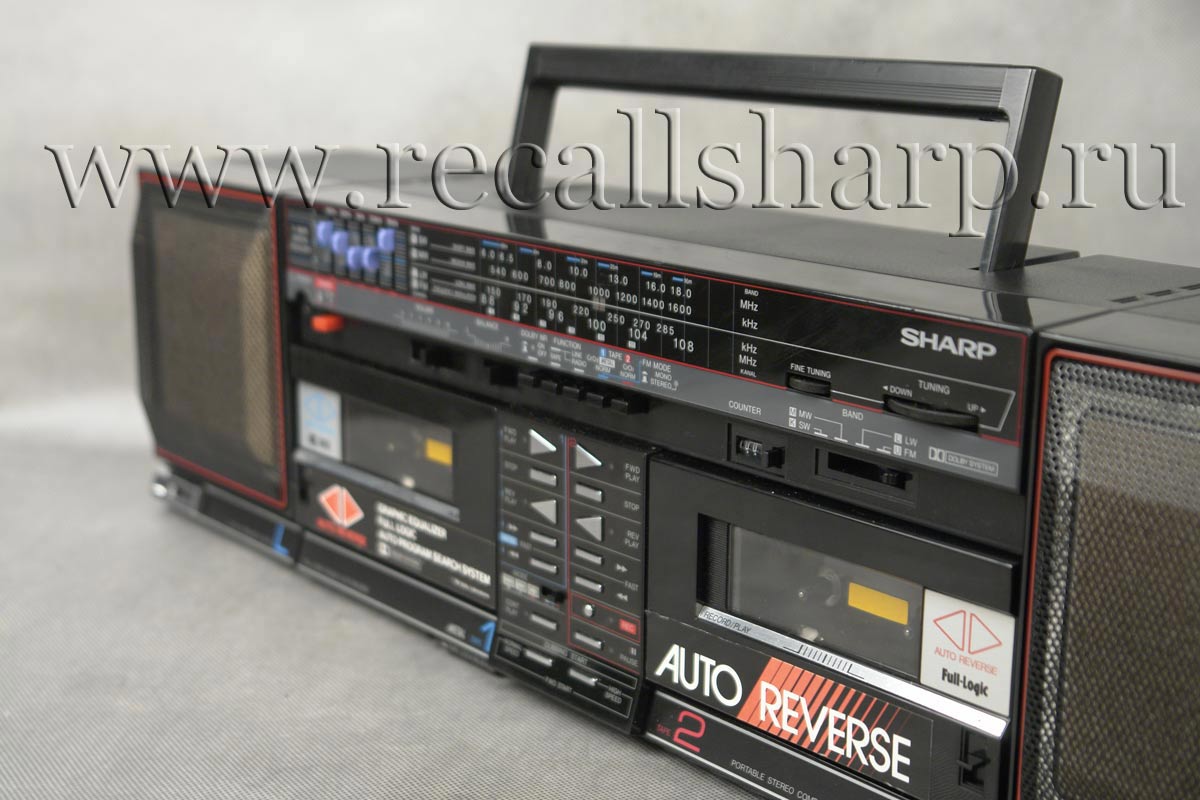

Sharp QT-95 H (BK)



: 1985




GENERAL

Power source; AC 110 -120 V and 220 - 240 V, 50/60 Hz 35W

DC 12 V (UM/SUM-1 or R20 type x 8, )

Output power: MPO; 12 W ( 6 W + 6 W) (AC operation)

RMS; 10 W (5 W + 5 W) (DC operation, 10% distortion)

Semiconductors 16ICs

68 Transistors

68 Diodes

10 LED

Input impedance: Mixing mic; 600 ohms

line in; 180 kohms
Loaded impedance: Headphones; 8 - 32 ohms

External speakers; 3-8 ohms

Dimensions: Width; 642 mm

Height; 170 mm

Depth; 172 mm

Weight: 5.5 kg without batteries

TAPE RECORDER
Tape: Compact cassette tape
Frequency response: Deck1

40 - 14,000 Hz (normal tape)

40 - 15,000 Hz (Cr02 tape)

40 - 16,000 Hz (metal tape)

Deck2

40 - 14,000 Hz (normal tape)

40 - 15,000 Hz (Cr02 tape)

Signal/noise ratio: 55 dB (Tape 1, playback)

50 dB (Tape 2,CrO2 tape recording Dolby NR off)

60 dB (Tape 2,CrO2 tape recording Dolby NR on)
RADIO
Frequency range: MW; 526.5 - 1606.5 kHz

LW150 - 285 kHz

SW; 5.95 - 18 MHz

FM; 87,6 -108 MHz

SPEAKER
Speakers: 10 cm
² free-edge woofer x 2;

Horn type tweeter x 2
Impedance: 3 ohms
Input: 13 W (maximum)


:
