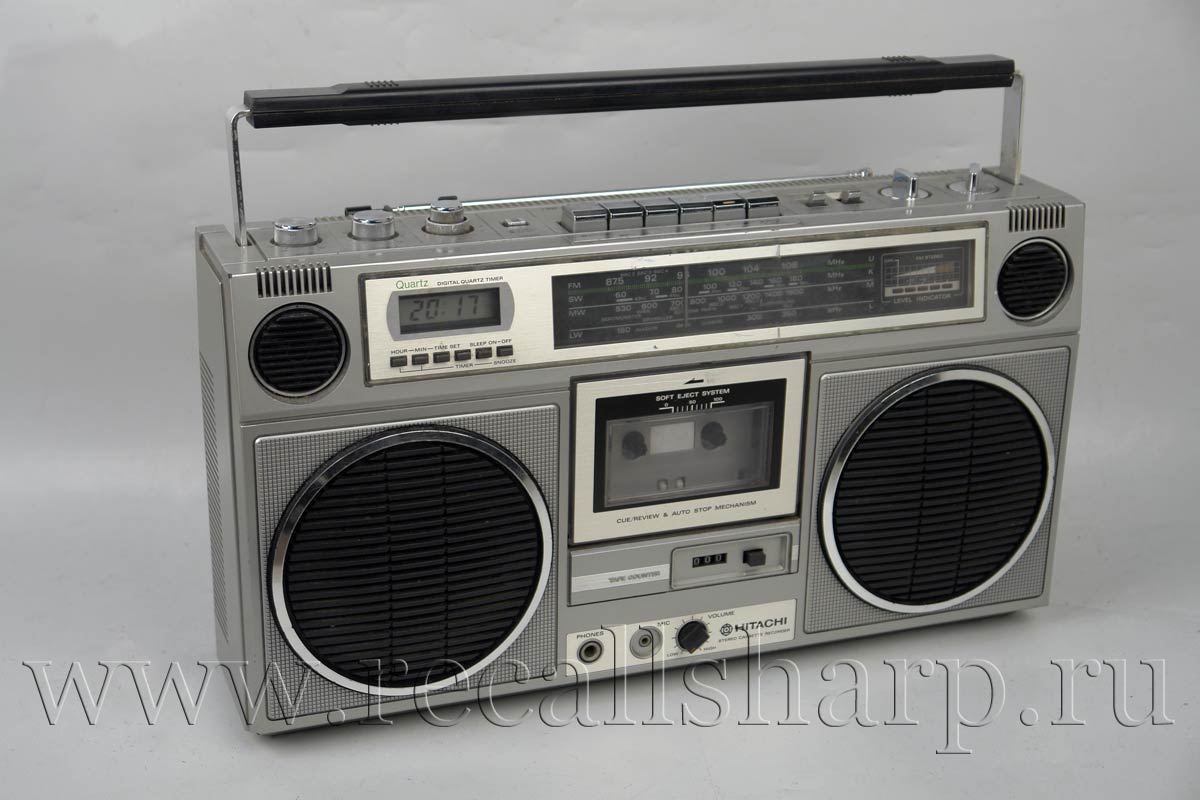

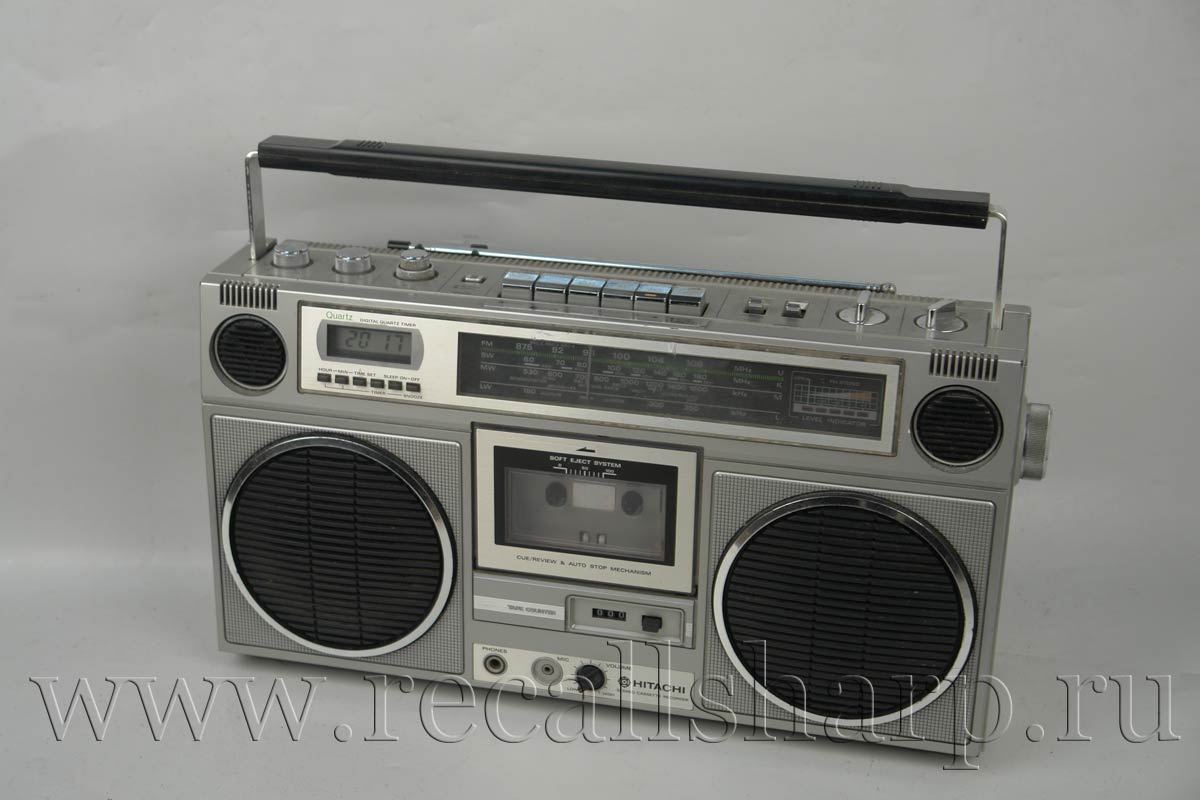

Hitachi TRK-8110 E



: 1979


Powersupply AC: 220v\50Hz(for E)

240v \50Hz (for E (BS))

DC : 12 V (R20 8x1,5 v batteries)

Consumption: 18W

Speakers: 2x12cm 3.2 Ohms,

2 x 5cm 8 Ohms,

Power Output: 4 W/CH (10% THD DC)

Dimensions: 255(H) x 455(W) x 148(D) mm

Weights: 5.2 kg (with batteries)

RADIO SECTIONS

Circuit System: FM 87.5-108Mhz

MW 530-1605kHz

LW 150- 350 kHz

SW 6-18 MHz

TAPE RECORDER SECTION

Tape: Cassette tape

Tape Speed: 4.75 cm/s

Playback Frequency Range: 50 to 10,000 Hz (Normal tape)

50 to 12,000 Hz (Chrome tape)

Wow&flutter 0.1%WRMS

S\N 45dB

Input Sensitivity and Impedance:

External microphone: 2 mV, 10 kohms

Line in: 400 mV, 50 kohms

Output Level and Load Impedance:

Headphones: 8 to 100 ohms

External speaker: 3.2 ohms
