PIONEER Nozomu Matsumoto 1937 -8

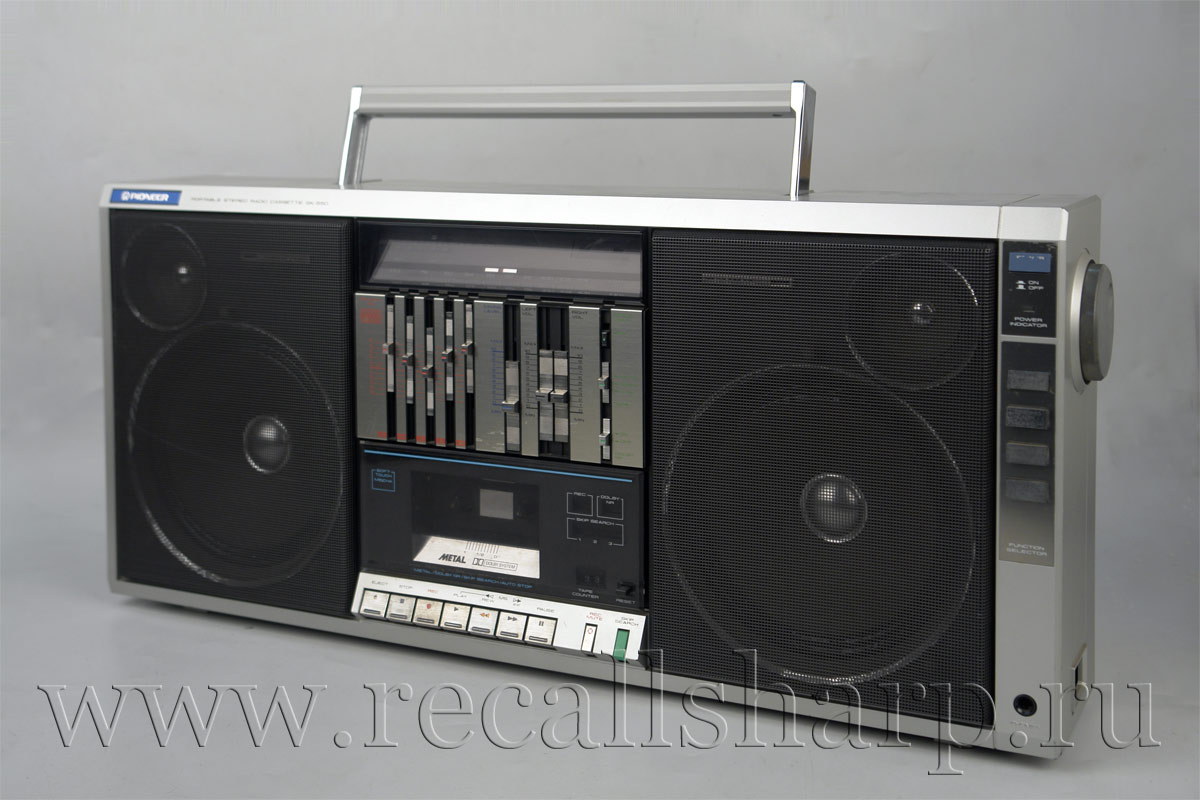

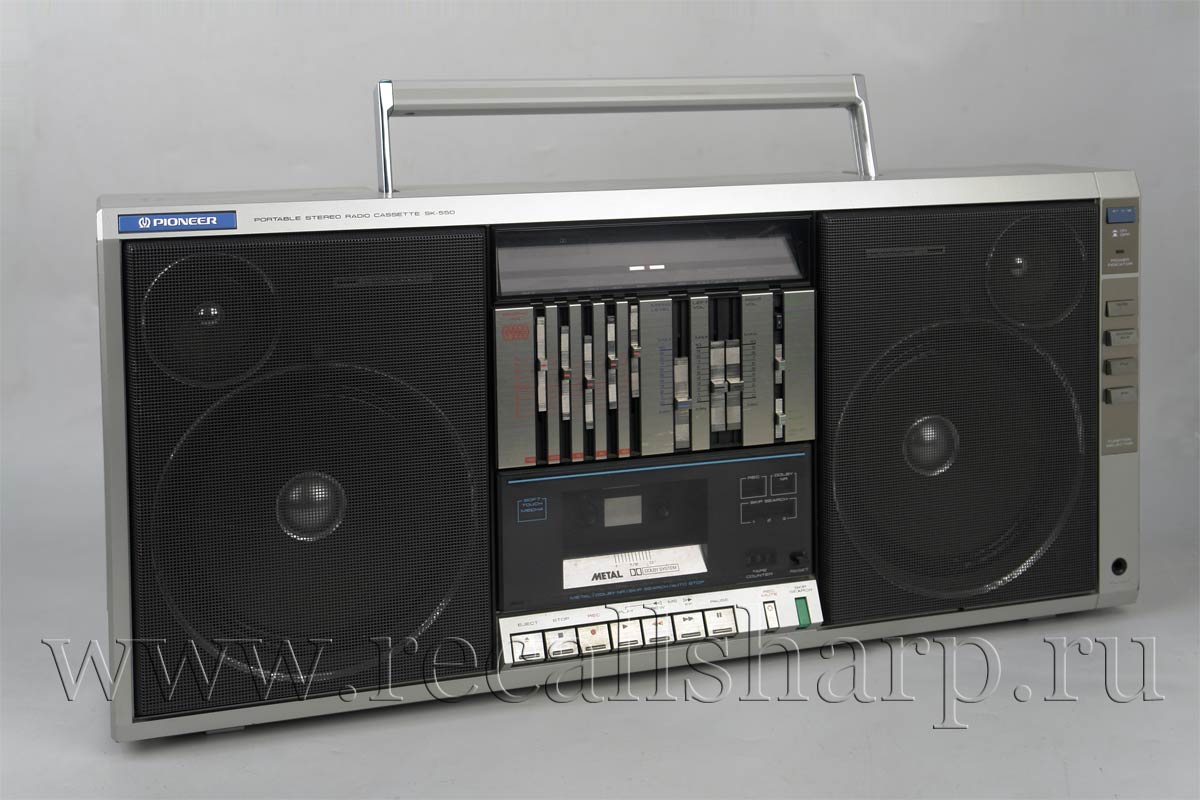

Pioneer SK-550



: 1982


Specifications

Max. music power21W (total music power)

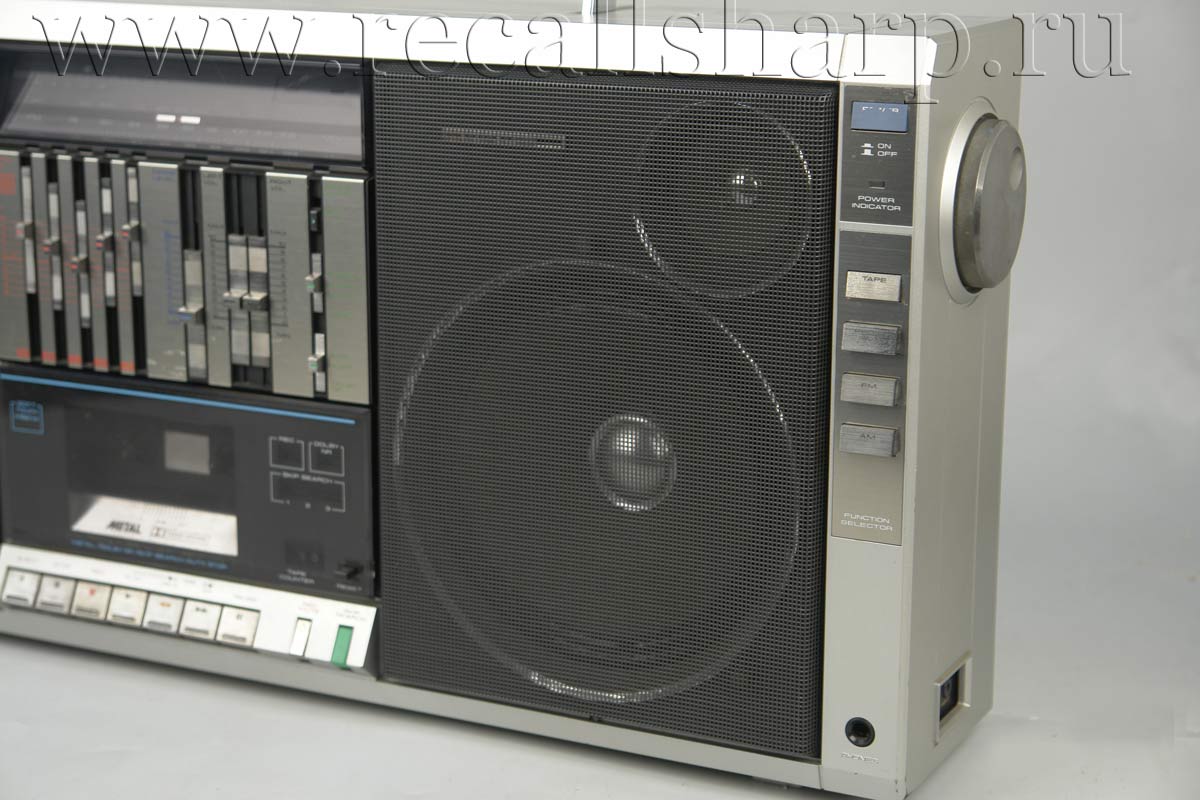

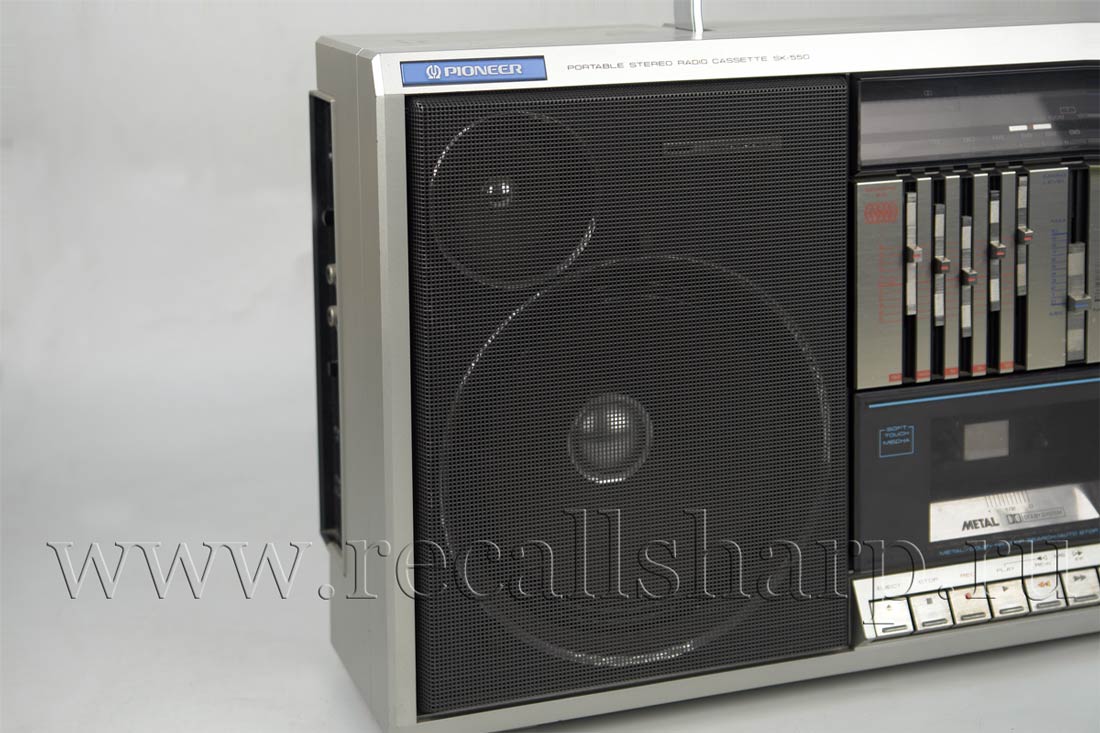

Speakers16cm 2-way


Frequency responseNormaltape: 30Hz~14kHz

CrO2 tape: 30Hz~15kHz

Metal tape: 30Hz~16kHz


Frequency rangeFM : 76~108MHz

MW : 525 ~ 1,630kHz


Input jacksMIX MIC, PHONO/AUX, EXT

MIC, EXT FM ANT

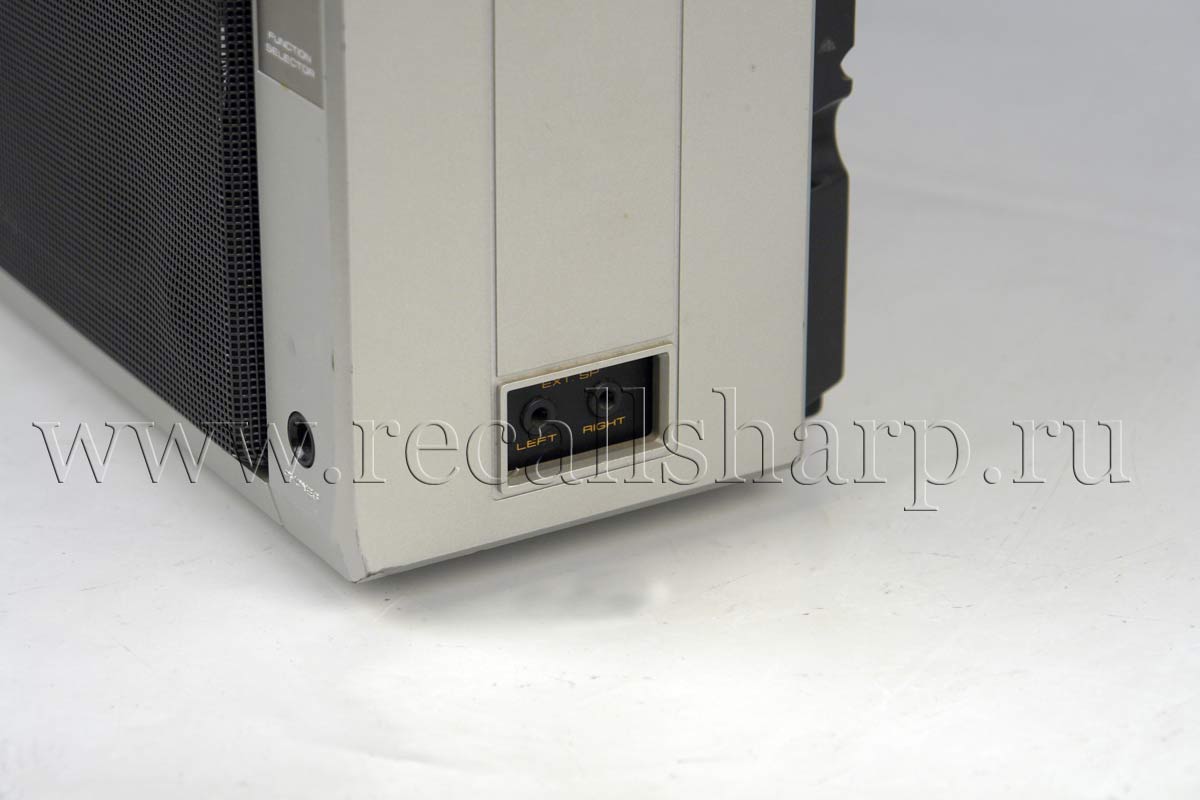

Output jacks LINE OUT, EXT SP, PHONES

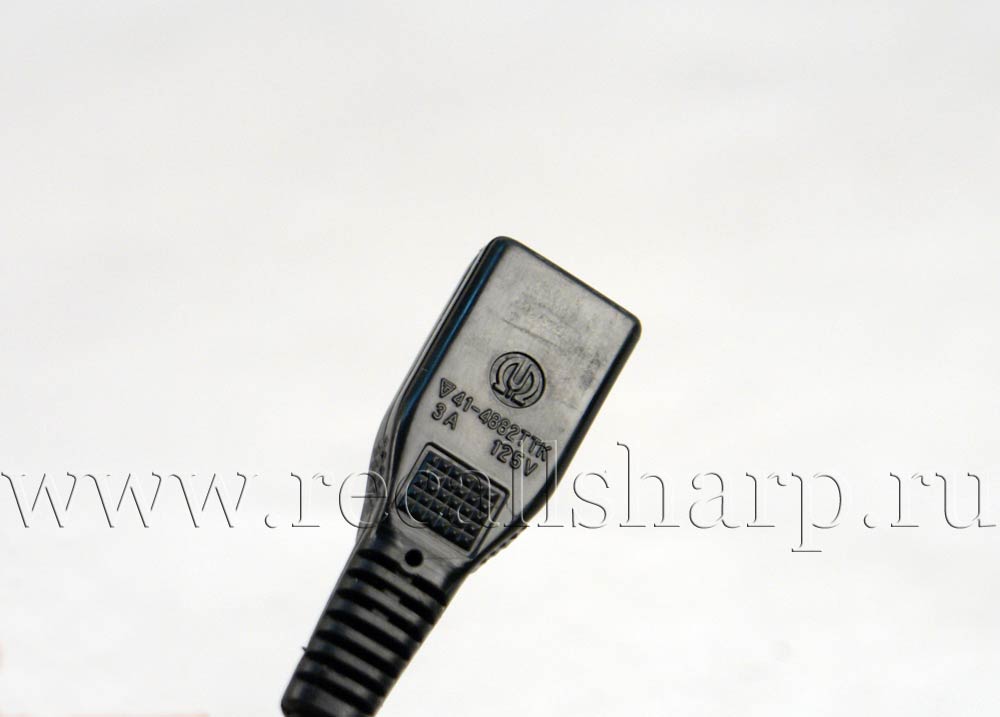

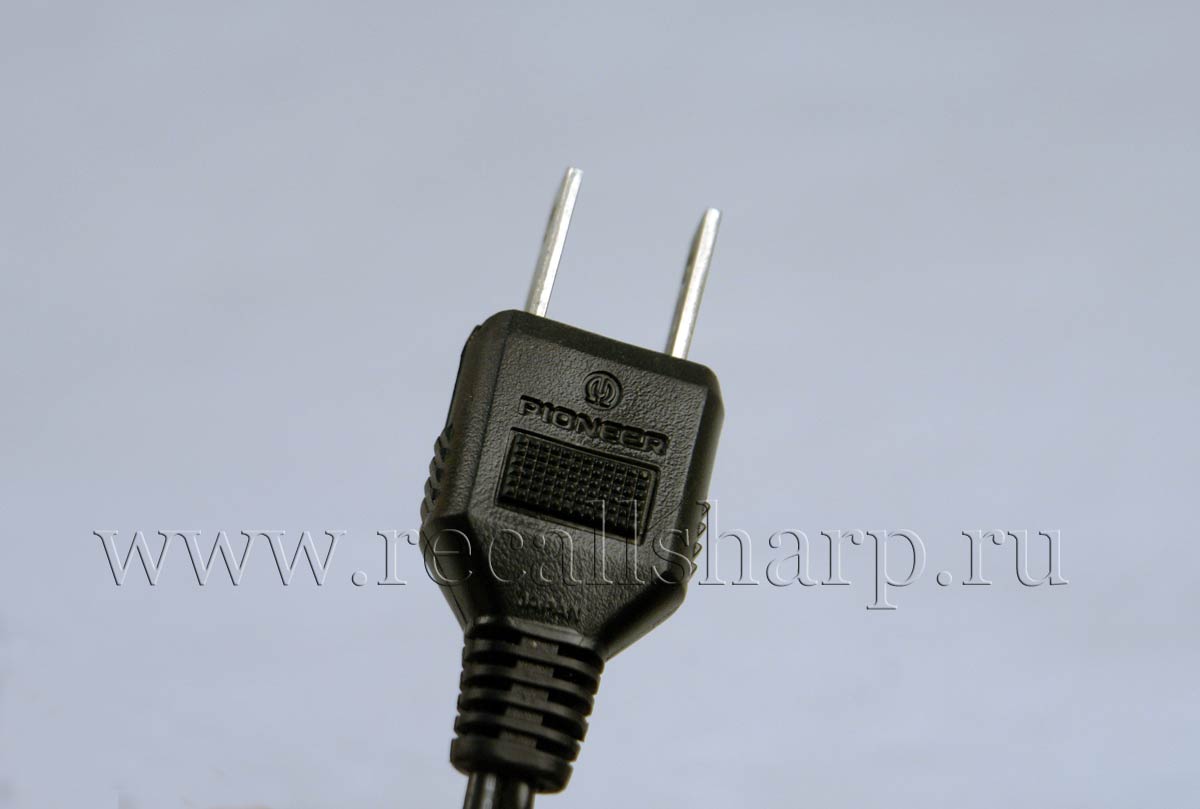

Power source 100V AC 50/60Hz, 22 W

13.5V DC (nine 1.5V "D" batteries), EXT 12V DC


Dimensions (W X H X D). . . 590 X 274 X 138mm (23 1/8 X 10 ¾ X 5 7/8in )


Weight 7.0kg (15.4 lbs., without batteries)

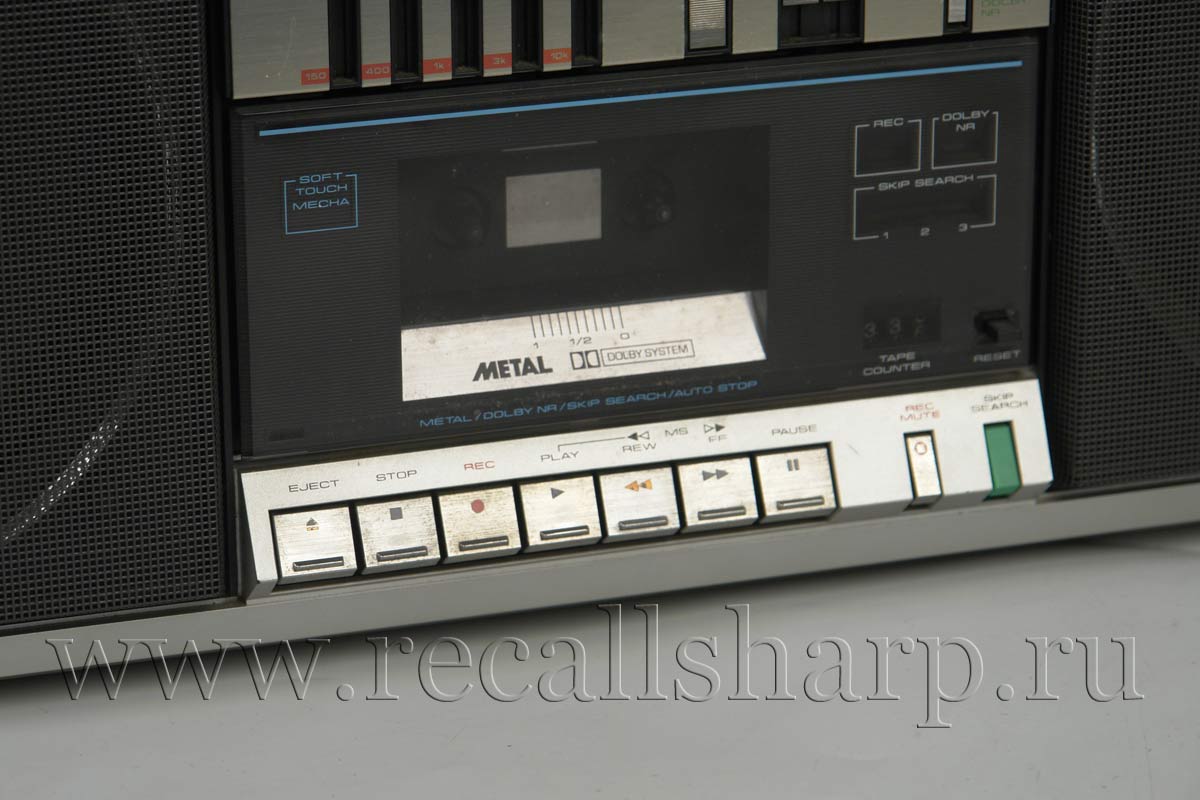

(Subfunctions)Dolby NR,

tape selector (METAL/CrO2/NORMAL),

three music Skip Searcher,

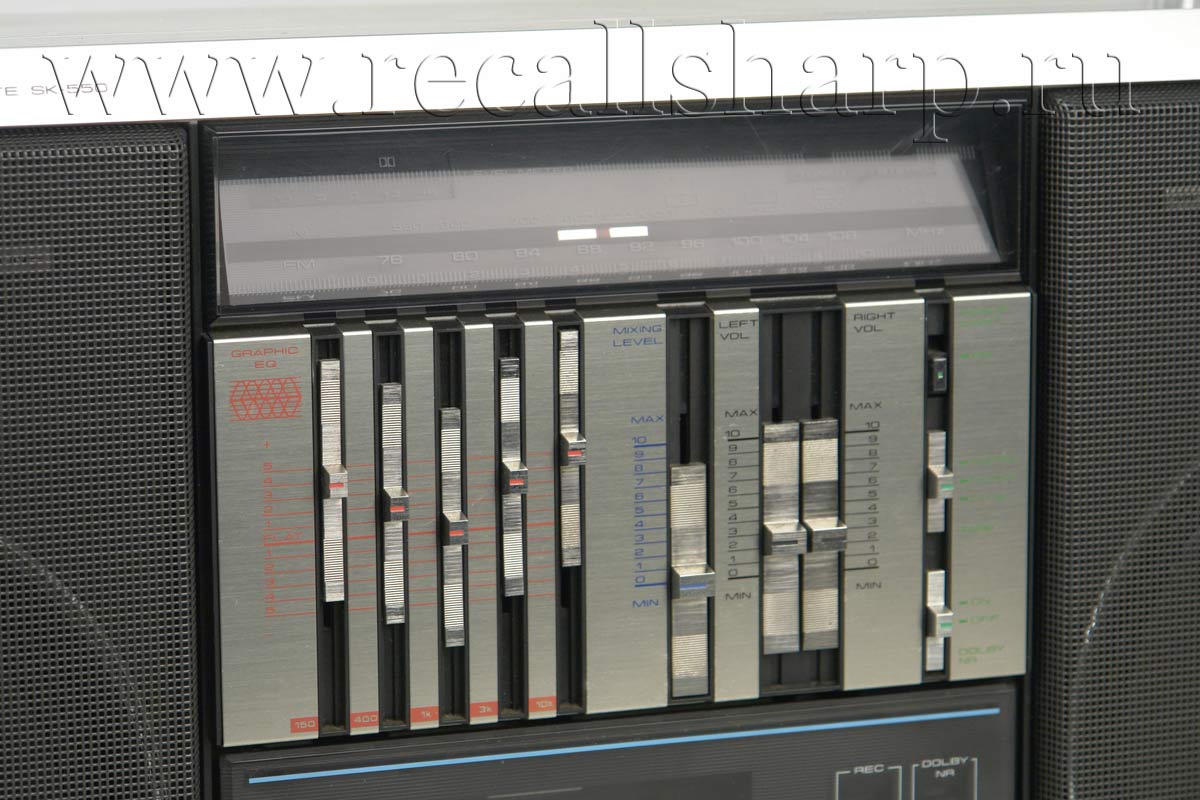

five band Graphic Equalizer (150Hz,400Hz,1kHz,3kHz,10kHz)

Dial Light, microphone mixing,BFC

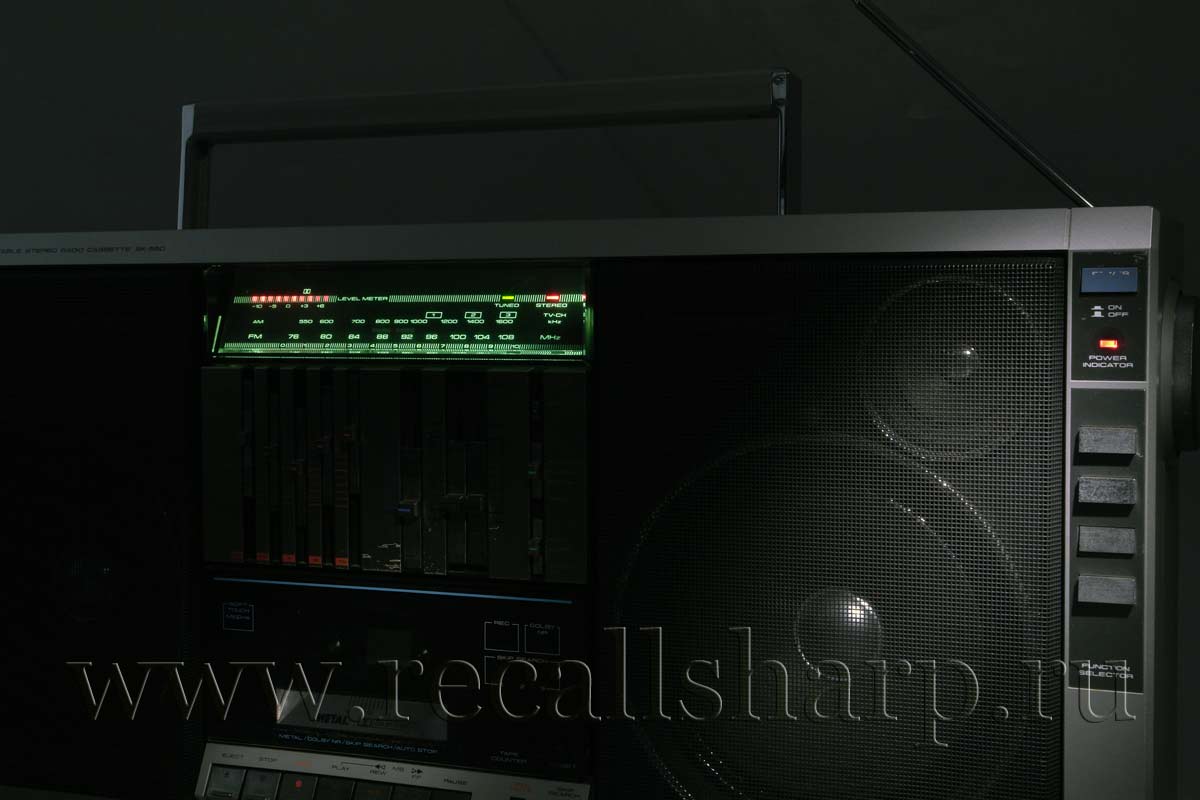

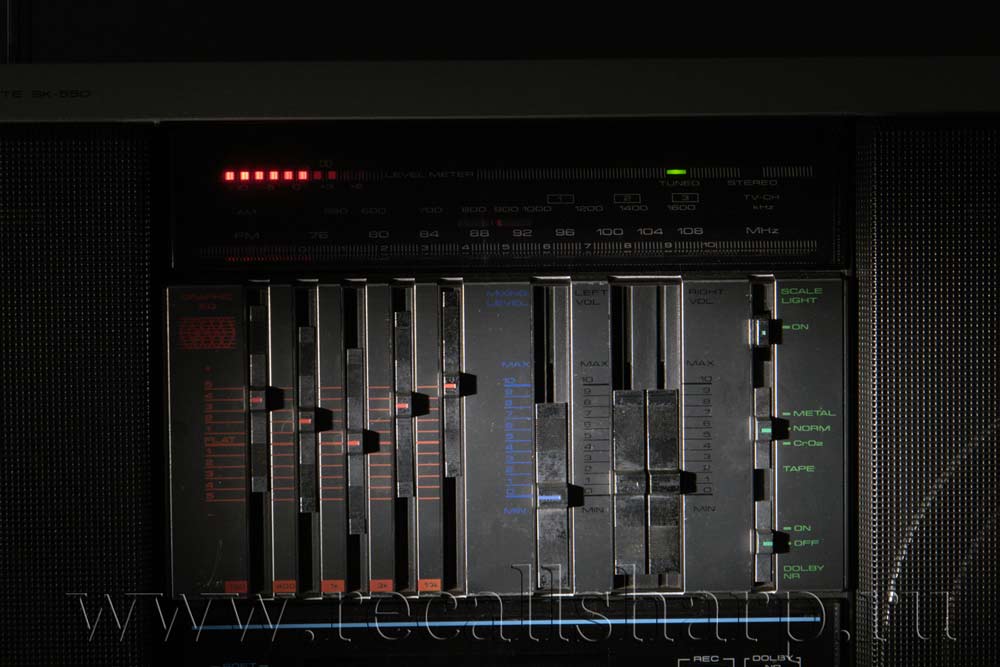

(Indicators)POWER (red LED),

level meter (5 point red LED)

FM (green LED),

AM (green LED),

REC (red LED),

SKIP SEARCH (red LED X 3),

DOLBY NR (green LED),

TUNED (green LED),

STEREO (red LED)
