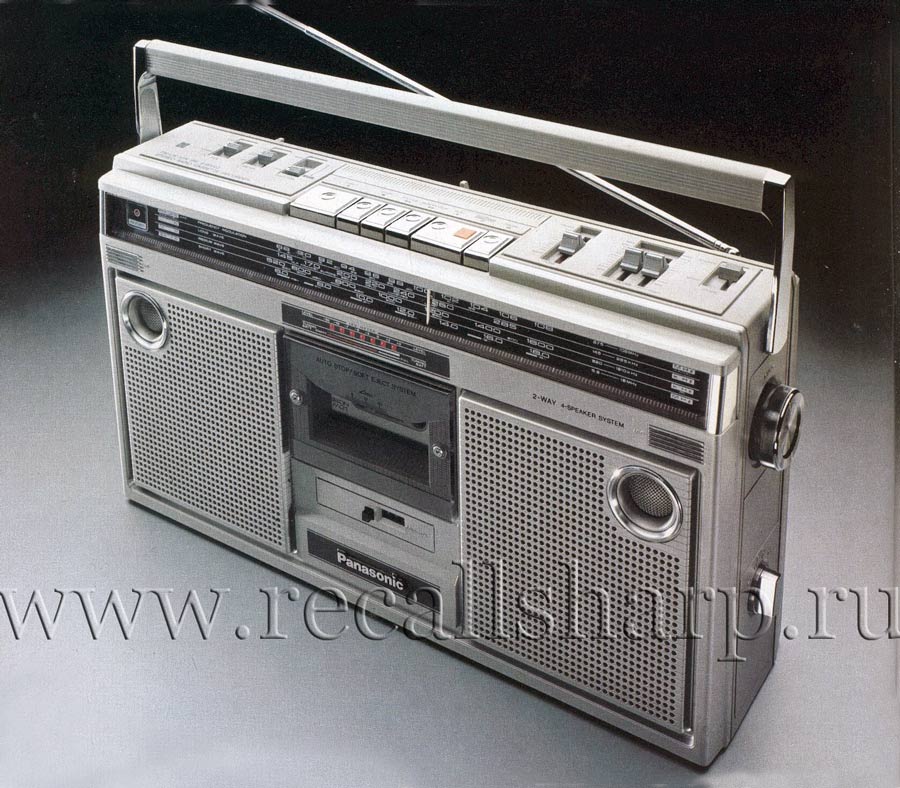

Panasonic RX-5120 LS



: 1979


SPECIFICATIONS

<RADIO>
Radio Frequency Range:
FM; 87.5-108 MHz
LW; 150-285 kHz
MW; 520-1610 kHz
SW; 5.9-18.0 MHz

Frequency Range:
70-11000 Hz (with normal tape)
70- 13000Hz(with CrO2)
70-13000Hz(with FeCr)
Recording System: DC bias,

Erasing system Magnet erase
Track System: 4-track 2-channel stereo recording and playback

Tape speed: 4.8 cm/s


PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME: Approx. 110 seconds with C-60 cassette tape

Power Requirement:
<GENERAL>
Power Requirement:
AC; 110-127/200-220/230-250 V, 50/60 Hz

Power consumption; 27W

Battery; 12 V (eight "UM-1", D size batteries)

Car Battery; with optional car battery cord RP-952

Power Output: 10W (5Wx2)...(DC max)
Speaker: Woofer;12cm PM dynamic speaker 3Ω
Tweeter; 3cm PM dynamic speaker(200Ω)

Jacks:
Input;
MIC; sensitivity 0.45 mV/applicable microphone impedance

200-600 Ohm (recommended microphone RP-8135)

LINE IN; sensitivity 450 mV/47 kOhm.

Output; EXT SP; 3 Ohm
HEADPHONES; 8 Ohm

Dimensions: (WxHxD)467x267x148 mm

Weight: 5.2 kg without batteries
(not included)


:
National RX-5200
National Panasonic RX-5120 F
