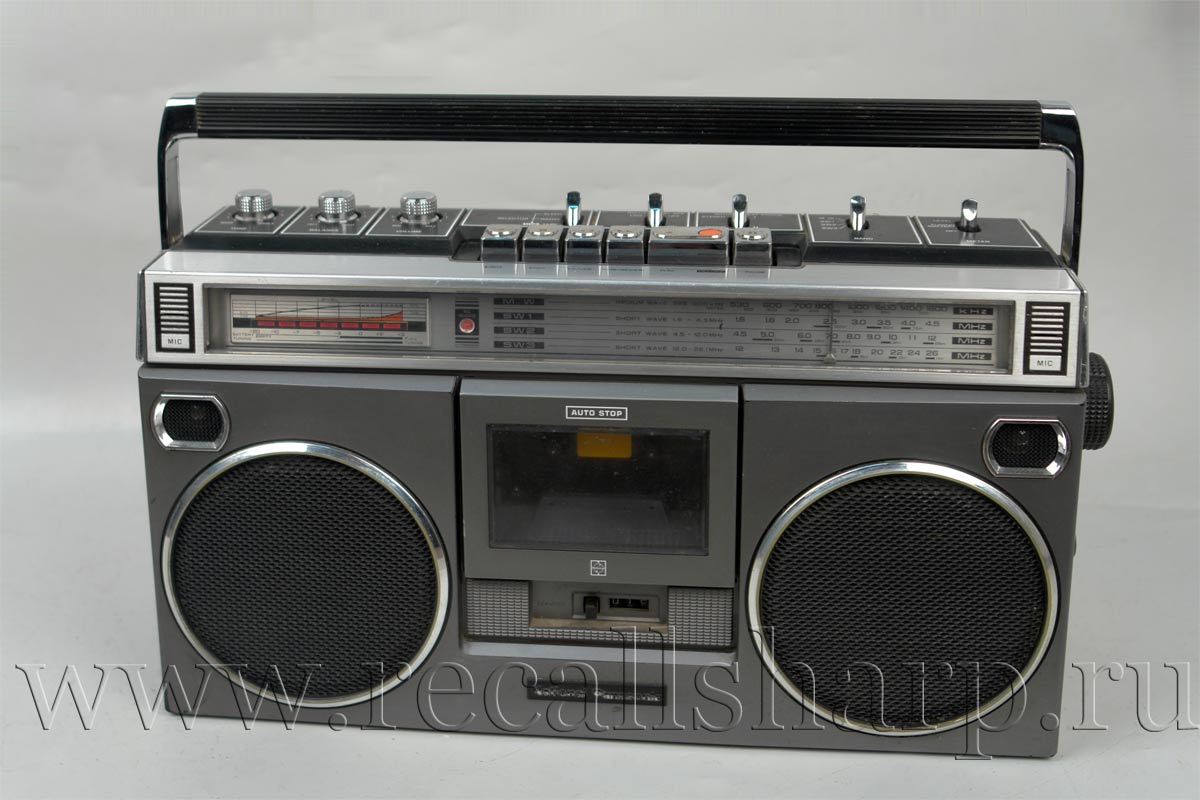

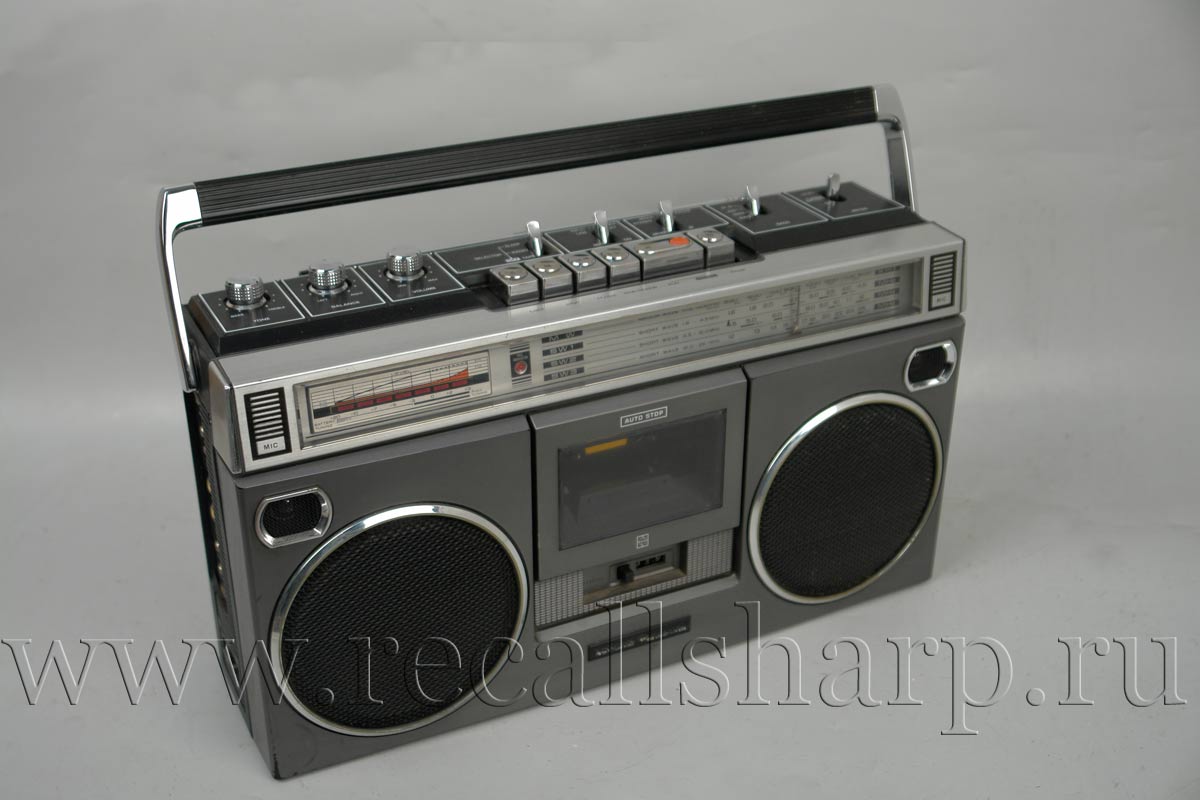

National Panasonic RX-5090 T



: 1979


SPECIFICATIONS
RADIO FREQUENCY RANGE: MW; 525~1605 kHz
SW1; 1.6~4.5 MHz
SW2; 4.5~12.0MHz
SW3; 12.0~26.1 MHz

POWER REQUIREMENT: AC; 90~109/110~125/200~219/220~250V, 50—60 Hz.
Power consumption; 14 W Battery; 9 V (six-UM-1 R20 size dry batteries)
Car/boat battery; with optional car/boat adaptor RP-917

POWER OUTPUT: 7.0 W (3.5 Wx2 ) ...RMS (max.)

SPEAKER: 12cm (5") PM dynamic speaker
3 cm (1½") PM dynamic speaker

FREQUENCY RANGE: 50~10,000 Hz

RECORDING SYSTEM: AC bias, Magnet erase

TAPE SPEED: 4.8 cm/s (1 7\8 ips)

PROGRAM TIME: 1 hour with C-60 cassette tape

FAST FORWARD AND REWIND TIME: Approx. 90seconds with C-60 cassette tape

TRACK SYSTEM: 4-track 2-channel stereo recording and playback

INPUT: MIC; sensitivity 0.25 mV/applicable, microphone impedance 200~600ohms
(recommended microphone WM-2213)
LINE; sensitivity 63 mV/470 kohms DC IN; 9 V

OUTPUT: LINE; 0.36V/load impedance 50kΩ over
EXT SP; 3~8Ω HEADPHONES; 8Ω
OTHERS: REMOTE; for start and stop at hand

DIMENSIONS: 41.8cm(W) x22.9cm(H) x14.2cm(D) 16½"(W)x9"(H)x5 3/8 "(D)

WEIGHT: 4.8 kg (10 lbs. 9 oz.) without batteries

Specifications are subject to change without notice.

:
