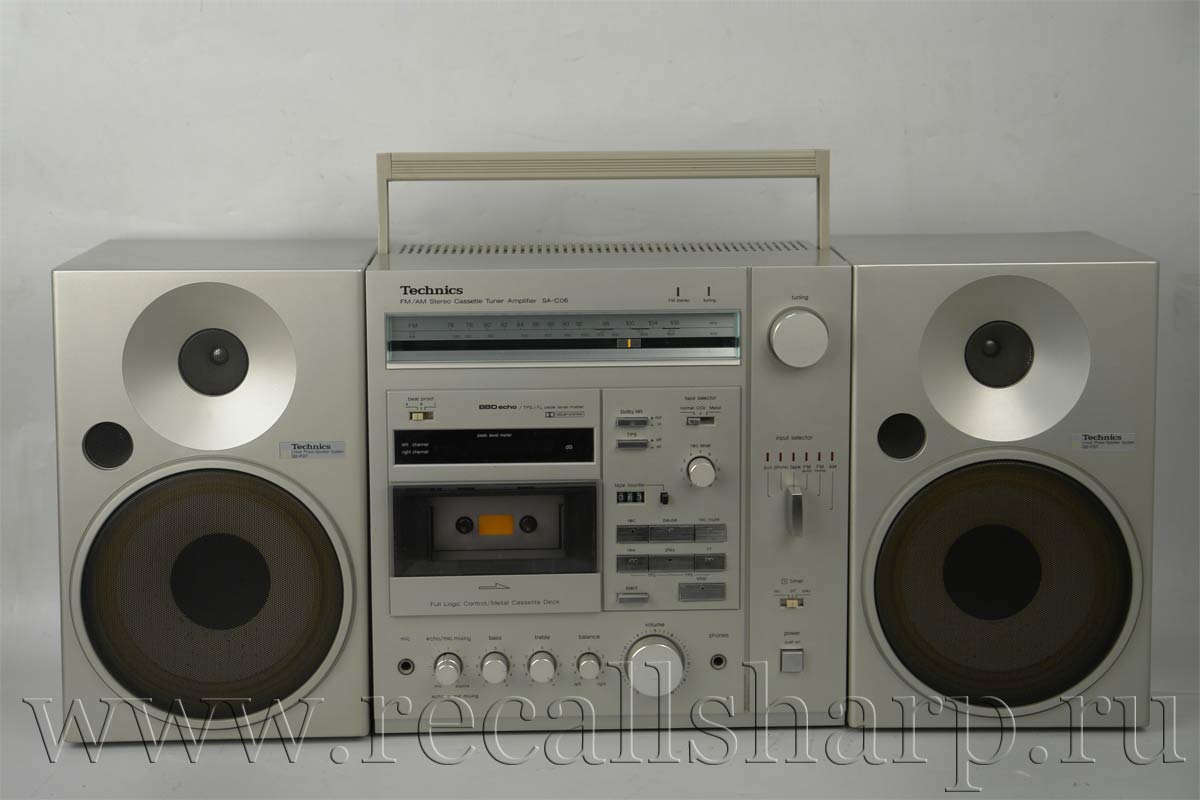

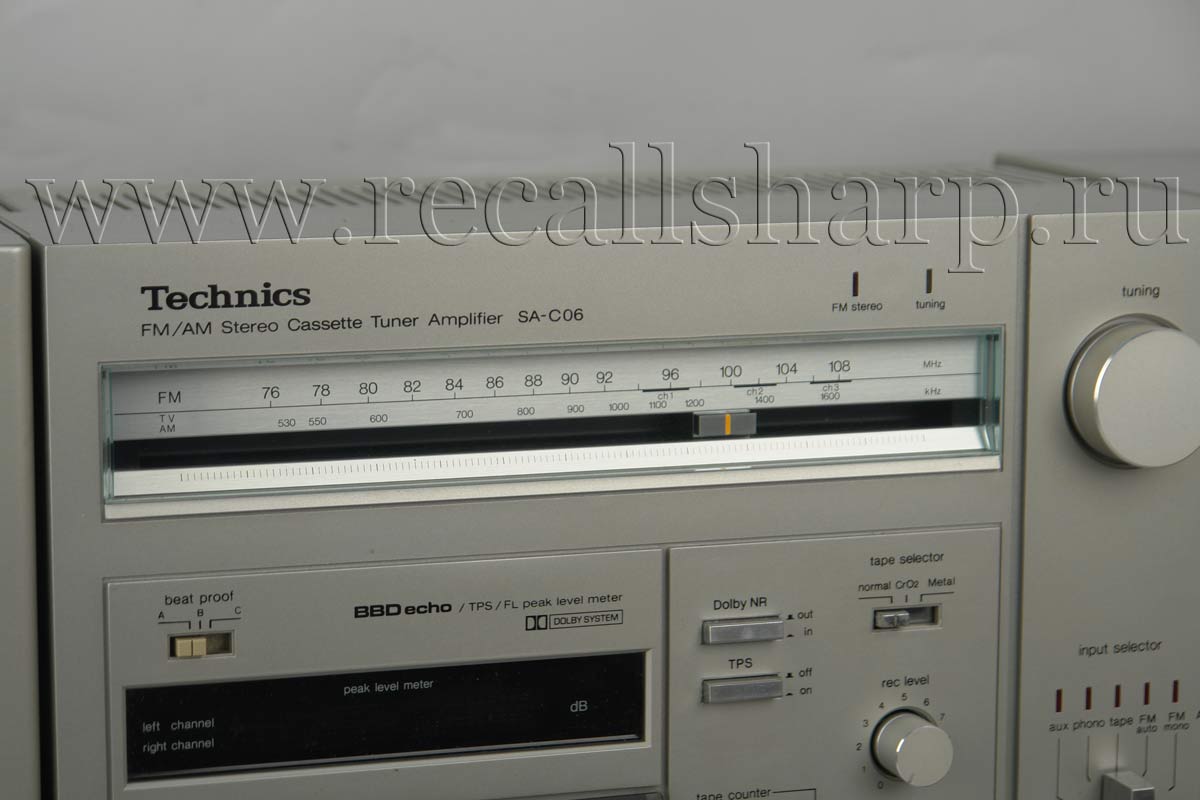

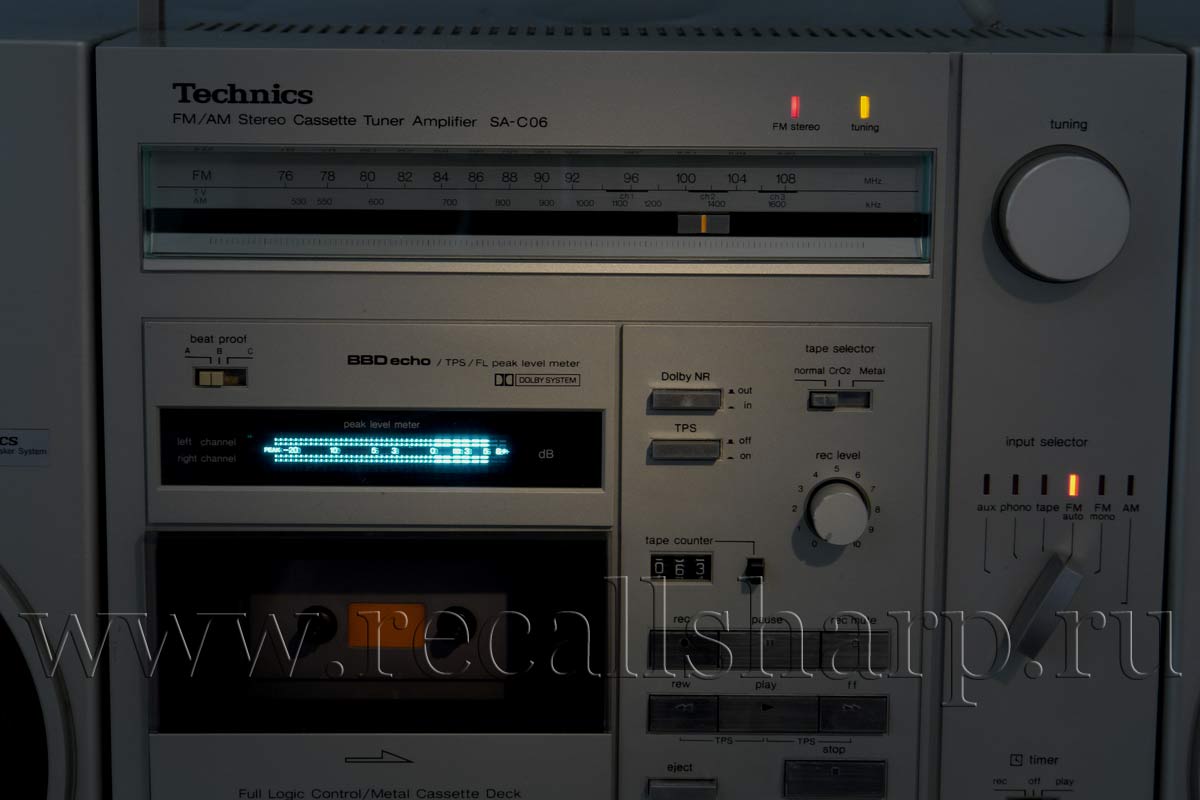

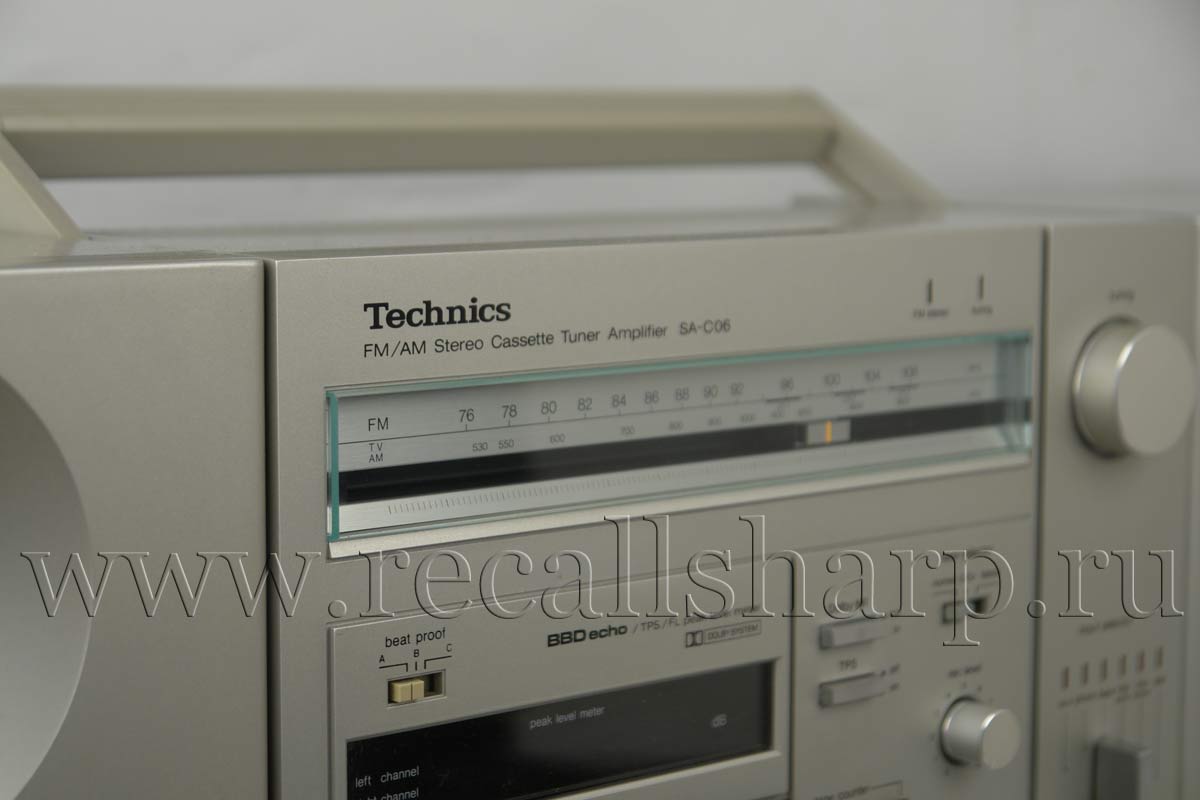

Technics SA-C06



: 1982


Specifications
AMPLIFIER SECTION

Rated minimum sine wave RMS power output

20 Hz~20 kHz both channels driven

0.08% total harmonic distortion

20W per channel (4 ohms)


1 kHz continuous power output


both channels driven 0.04% total harmonic distortion


20W per channel (8 ohms)
25W per channel (4 ohms)

Dynamic headroom 1.8 dB (8 ohms)

Total harmonic distortion

rated power at 20 Hz~20 kHz 0.08% (8 ohms)

half power at 20 Hz~20 kHz 0 08% (8 ohms)

half power at 1 kHz 0.02% (8 ohms)

SMPTE intermodulation distortion 0.08% (8 ohms)

Frequency response


PHONO 30 Hz~15 kHz RIAA standard curve ±1 dB


AUX 10 Hz~40 kHz, -3 dB

MIC 40 Hz~15 kHz. -3 dB


Input sensitivity


PHONO 0.5 mV (2.5 mV, IHF '66)


AUX 25 mV (150 mV, IHF '66)

MIC 0.5 mV (1.5 mV, IHF 66)



S/N (IHF, A)


PHONO 70 dB (72 dB, IHF '66)

AUX 82 dB (87 dB. IHF '66)

MIC 70 dB (66 dB, IHF '66)



Maximum input voltage




PHONO 120 mV (150 mV, 1 kHz)




Input impedance


PHONO 47 kilohms

AUX 27 kilohms

MIC 10 kilohms




Tone controls


BASS 50 Hz, +10 dB~ -10 dB


TREBLE 20 kHz, +10 dB~ -10 dB


Output voltage


REC OUT 150 mV

Low frequency damping factor 30 (8 ohms)

15 (4 ohms)

Load impedance 4~16 ohms

FM TUNER SECTION


Frequency range 76~108 MHz



Sensitivity 11.2 dBf (2.0μHF '58)



50 dB quieting sensitivity



MONO 17.5 dBf (4.1//V IHF'58)


STEREO 39 dBf (49 IHF '58)





Total harmonic distortion


1 kHz 0.2% (MONO), 0.4% (STEREO)

S/N

MONO 75 dB

STEREO 70 dB


Frequency response 20 Hz~15 kHz, +0.5 dB, -1.5 dB

Alternate channel selectivity 60 dB

Capture ratio 1.0 dB

Image rejection at 98 MHz 60 dB

Spurious response rejection at 98 MHz 80 dB


AM suppression 55 dB



Stereo separation


1 kHz 40 dB

10 kHz 30 dB

Carrier leak


19 kHz -35 dB


38 kHz -35 dB


Antenna terminals 300 ohms (balanced)


75 ohms (unbalanced)

AM TUNER SECTION


Frequency range 525~1605 kHz



Sensitivity 30 μV, 300 μV/m



Selectivity (10 kHz) 27 dB


Image rejection at 1000 kHz 50 dB


IF rejection at 1000 kHz 40 dB

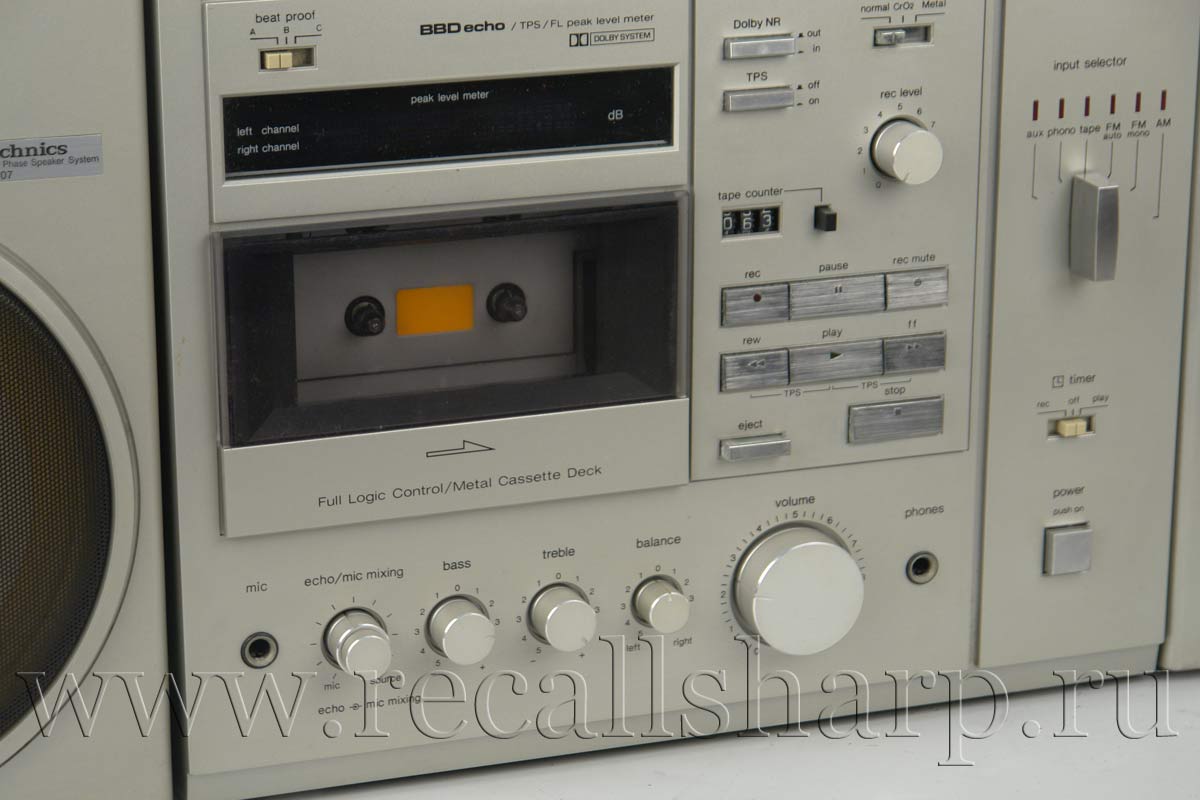

CASSETTE DECK SECTION


Deck system Stereo cassette deck


Track system 4-track, 2-channel



Heads


REC/PLAY SP (solid permalloy) head


Erasing 3-gap ferrite head




Motor Electronically controlled DC motor


Recording system AC bias



Bias frequency 85 kHz



Erasing system AC erase



Tape speed 4.8 cm/sec



Frequency response (w/o Dolby N.R.)



METAL 20 Hz~17 kHz


Cr02 20 Hz~16 kHz


NORMAL 20 Hz~15 kHz


S/N (signal level = max recording level, Cr02 type tape)


DOLBY NR in 66 dB (above 5 kHz)


DOLBY NR out 56 dB



Wow and flutter 0.05% (WRMS)

GENERAL


Power consumption 50W




Power supply AC100 V, 50/60 Hz




Dimensions (WXHXD) 329 X 320 X 200 mm



(12-15/16" X 12-5/8" X 7-7/8")


Weight 7.2 kg (15.8 lb.)

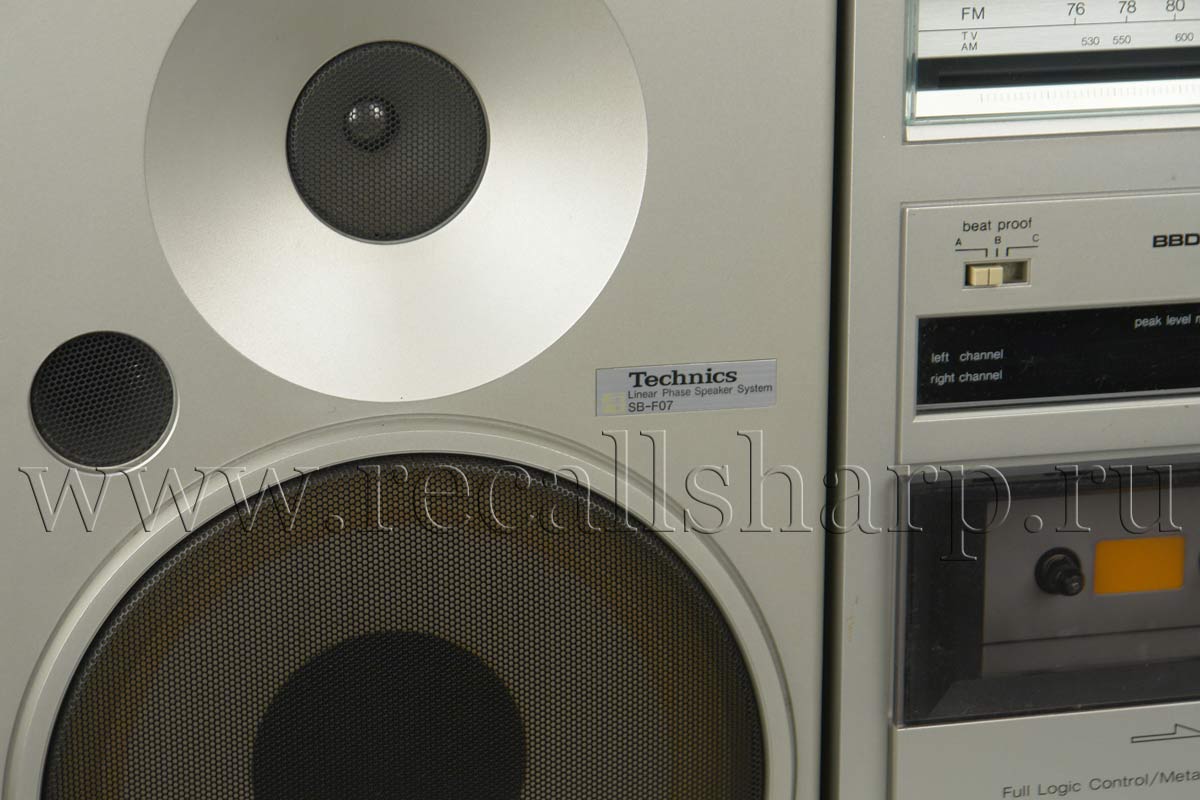

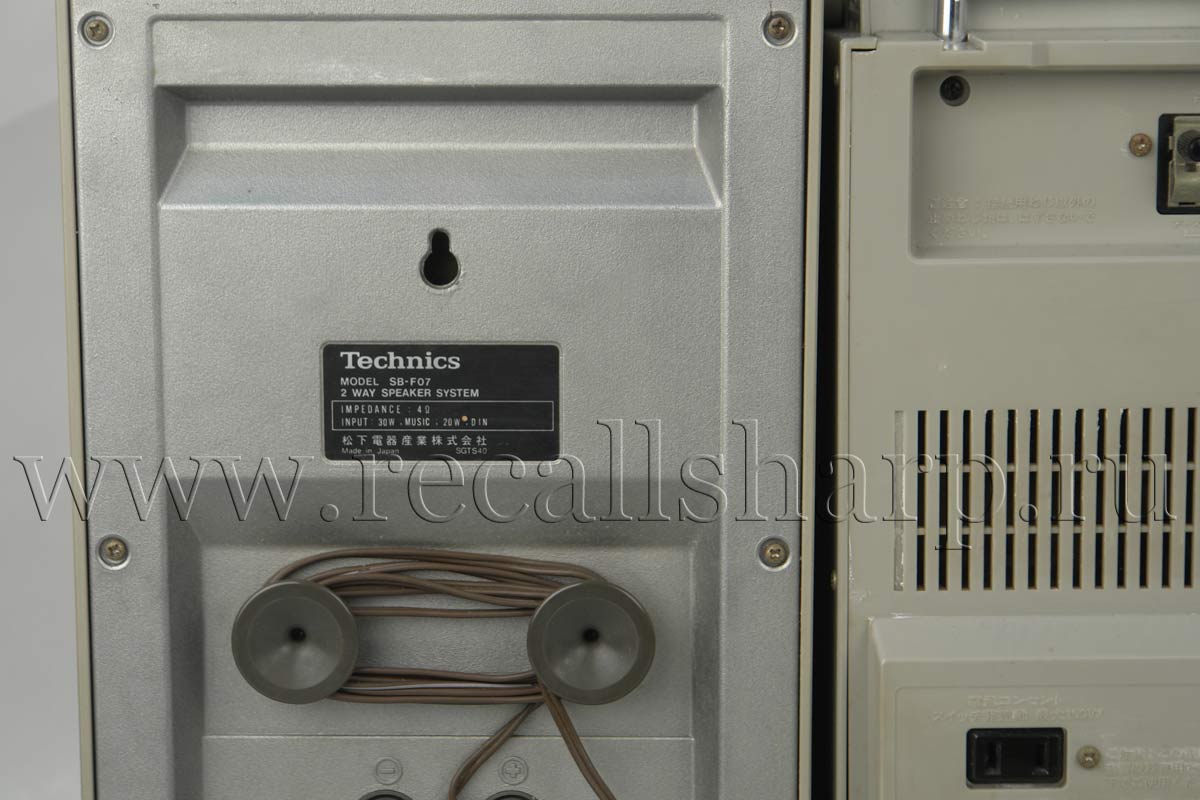

Speaker sections- SB-F07

Configurations 2-way, 2 speaker bass-reflex


Speaker units Woofer:18cm cone type

Tweeter: Horn type


Input Power Music 30 watts, 20 watts DIN

Output level 91dB\W(1.0 m)

Crossover frequency 6kHz



Frequency range 70 Hz-20,000 Hz(-16dB)



Impedance 4 ohms



Dimensions Approx. 200x320 x178mm (w/h/d)



Weight Approx. 2.6 kg net per unit
