SONY , Sound() Sonic() - SONY. SONY 1945 ., Tokyo Tsushin Kenkyujo. , . 1946 . . , . . : , , , , . - .

. -, , "" . , .

1950 . C-type A-type. RCA , . 1954 . 214 123. 1957 ., " ", . - TV-301, 23 , 50 . 15 1968 . Trinitron.

Trinitron, SONY . , Ampex. SONY . 1970 . SONY, Matsushita, JVC . SONY, 1971 . U-matic VP-1100 VO-1700. SONY JVC : Video-8 VHS Compact. Video-8 (Hi8) (S-VHS-C).

1997 . SONY F.D.Trinitron (Flat Display - ). , , FD Trinitron WEGA (KV-29FX11). F.D.Trinitron : , , .

1998 . SONY AIWA, FUJITSU, KEHWOOD, PIONEER, SANYO SHARP MEMORY STICK, . 4,8,16,32,64 128 .

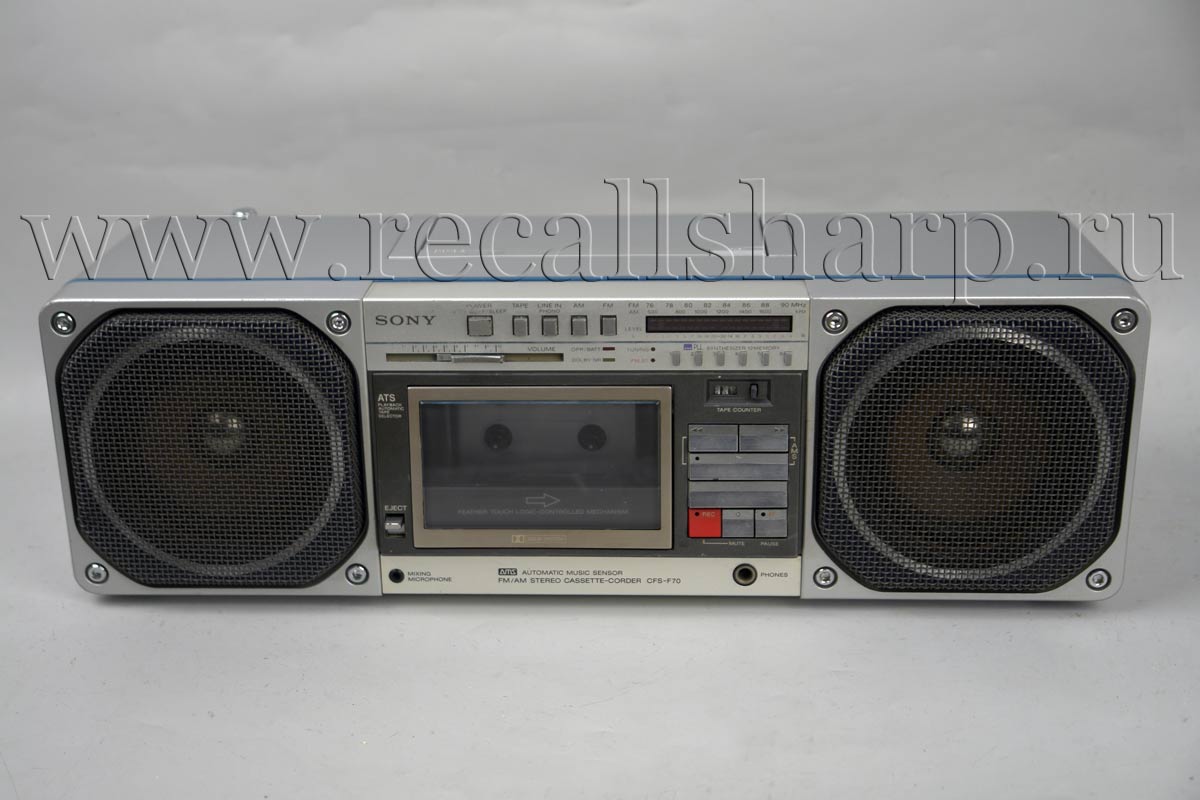

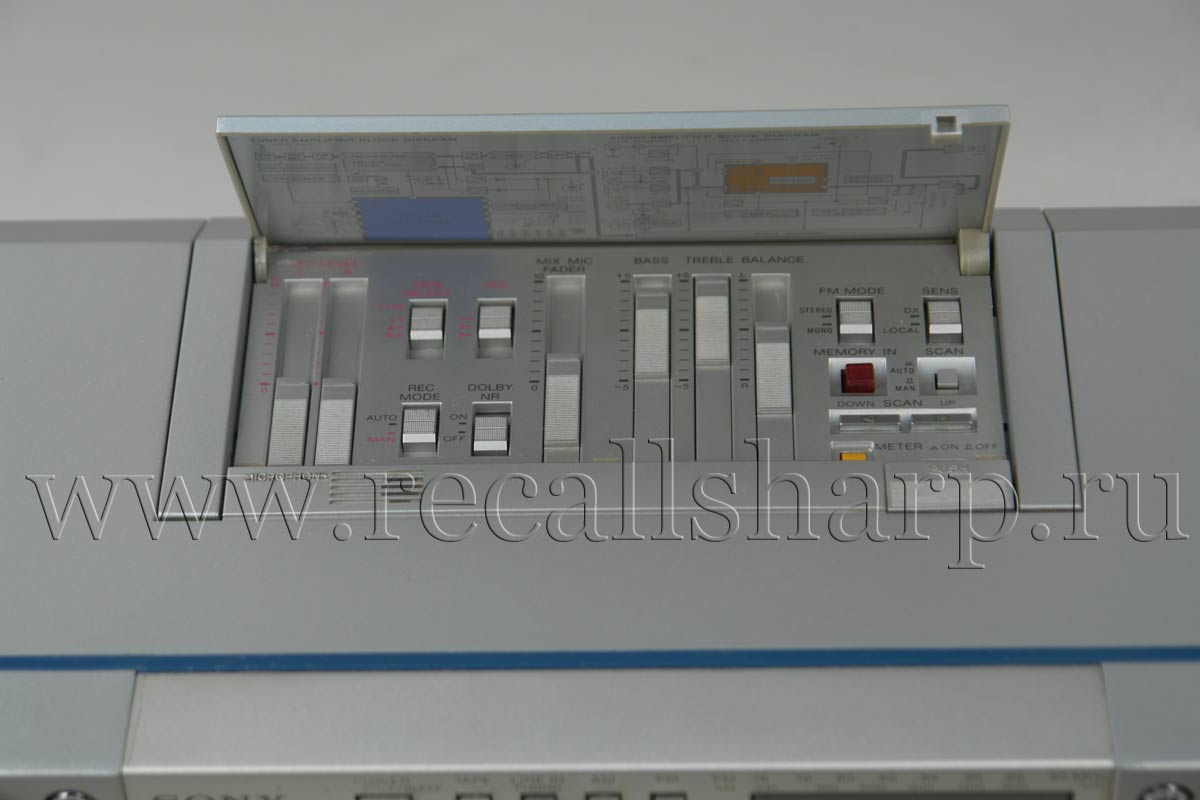

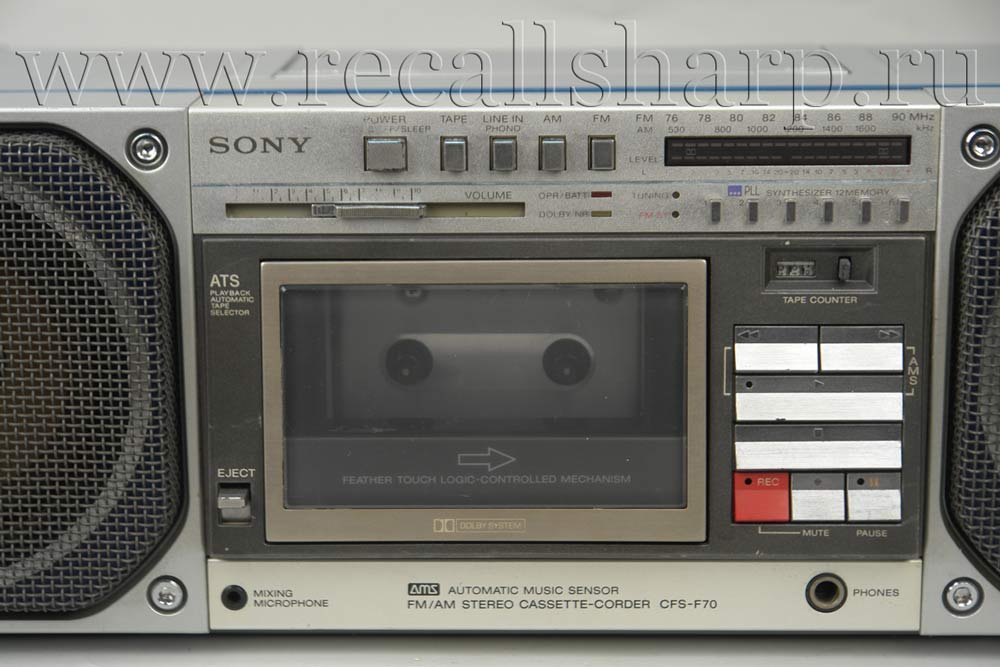

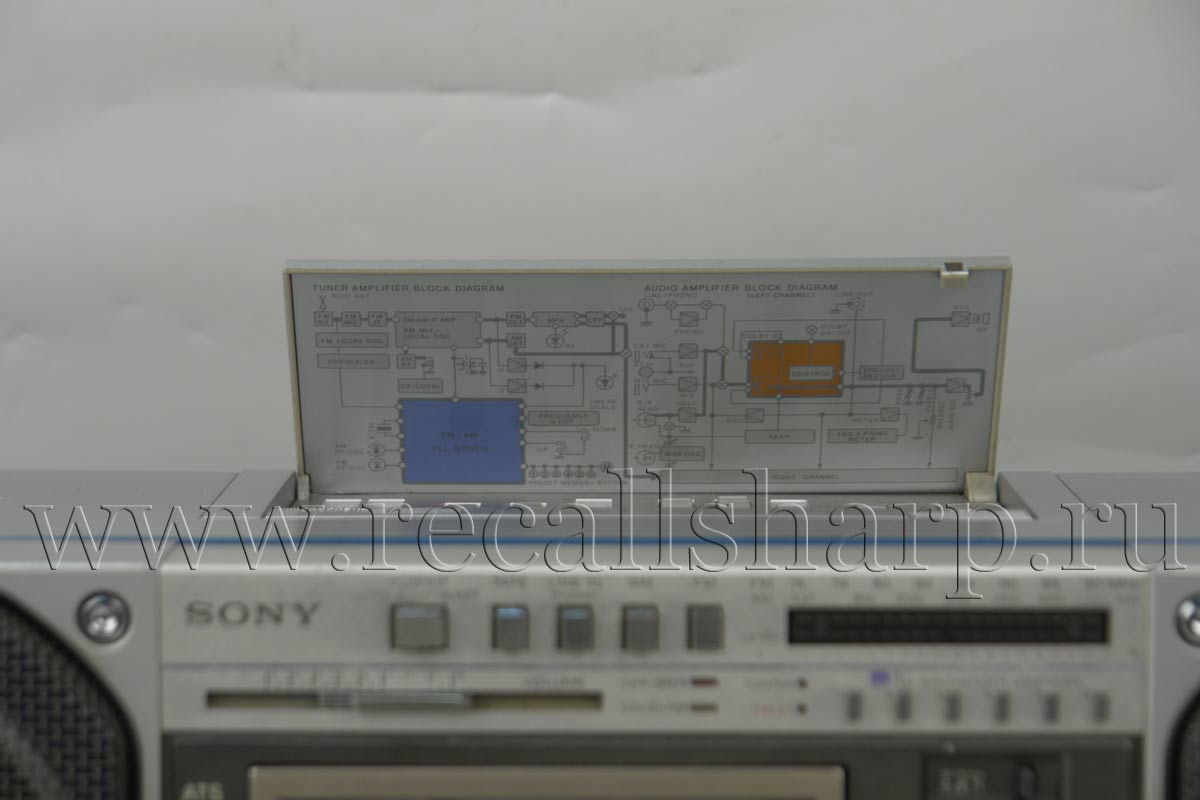

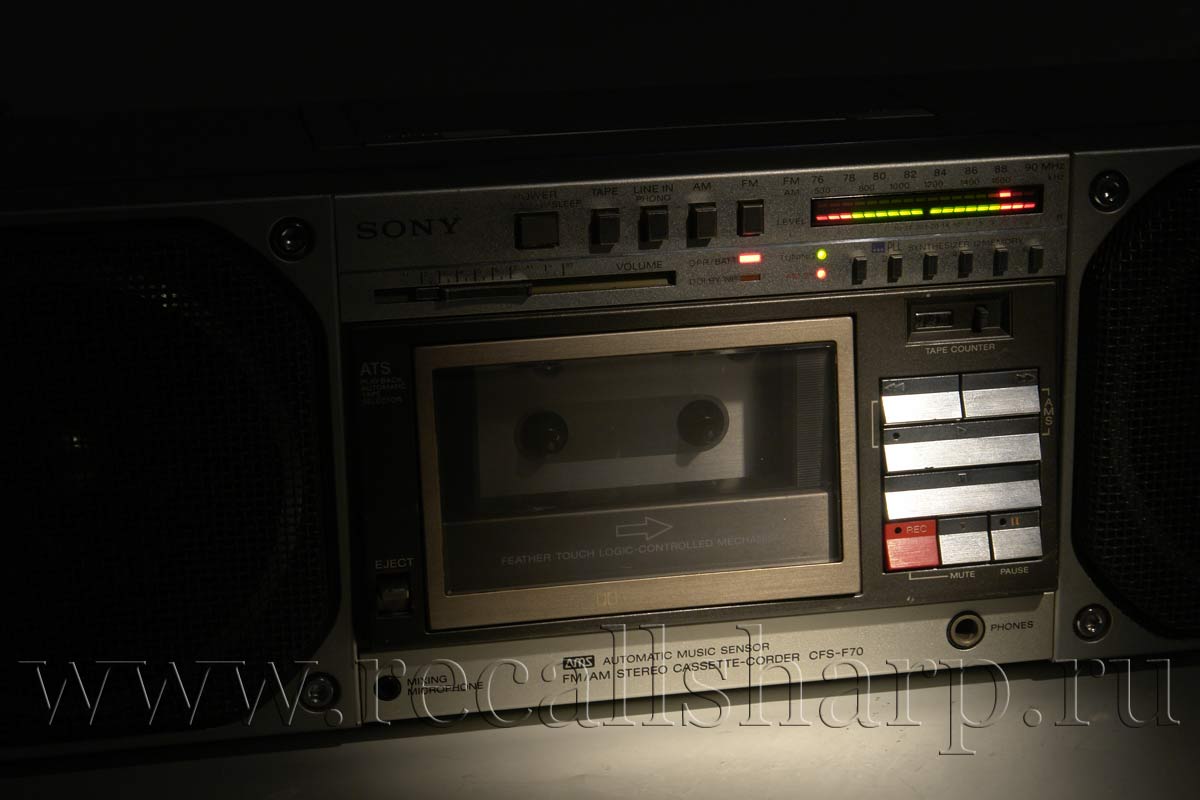

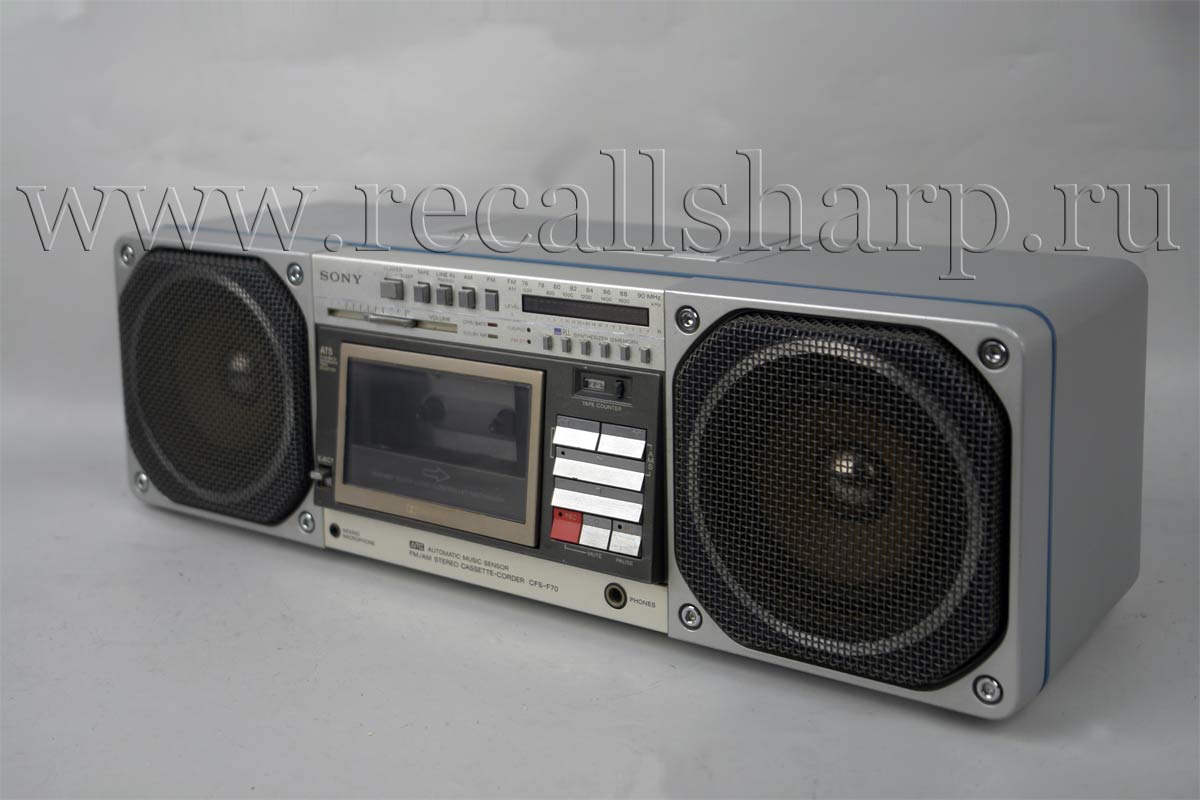

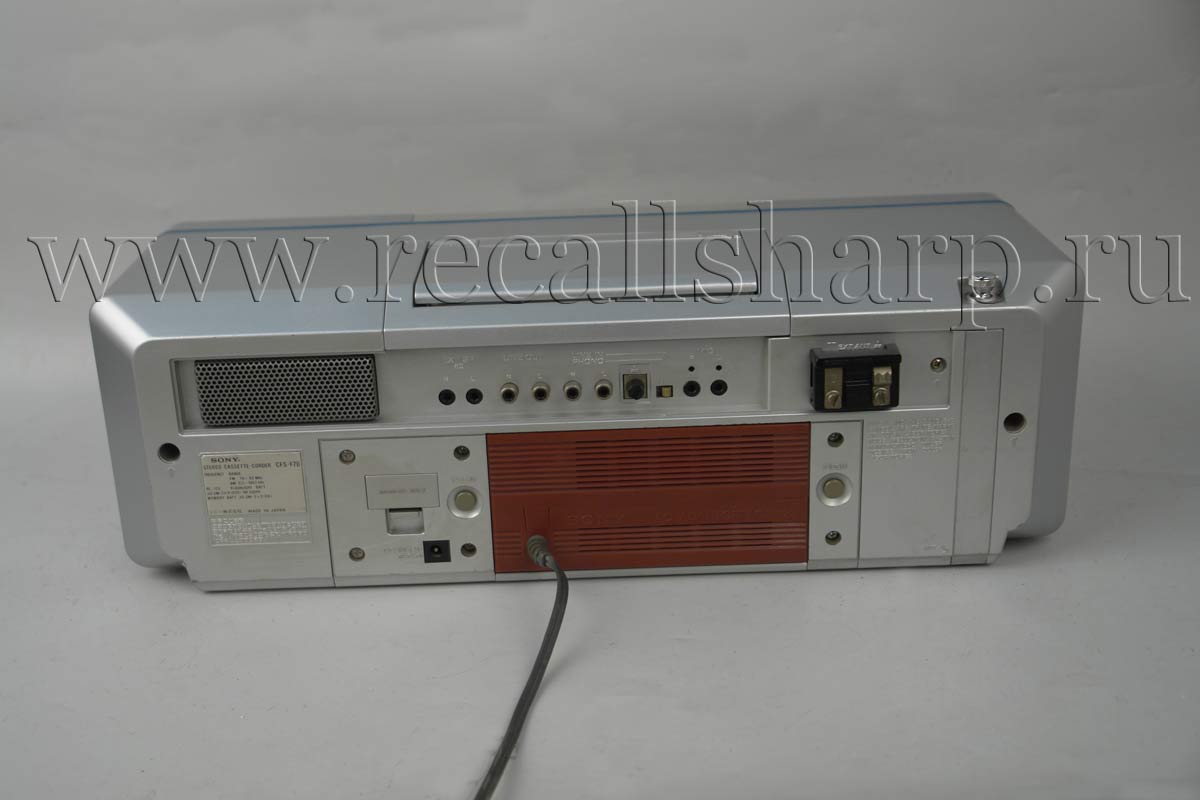

Sony CFS-F70



: 1981



SPECIFICATIONS

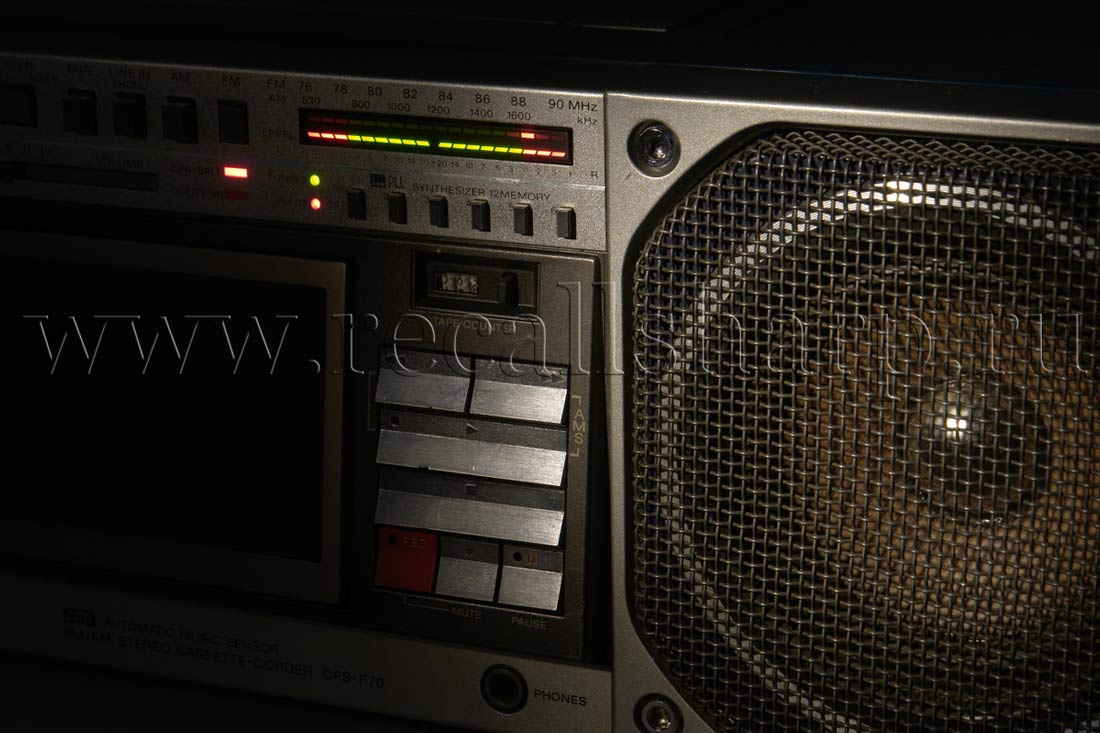

Radio section
Frequency range FM 76-90 MHz
AM 531-1,602 kHz

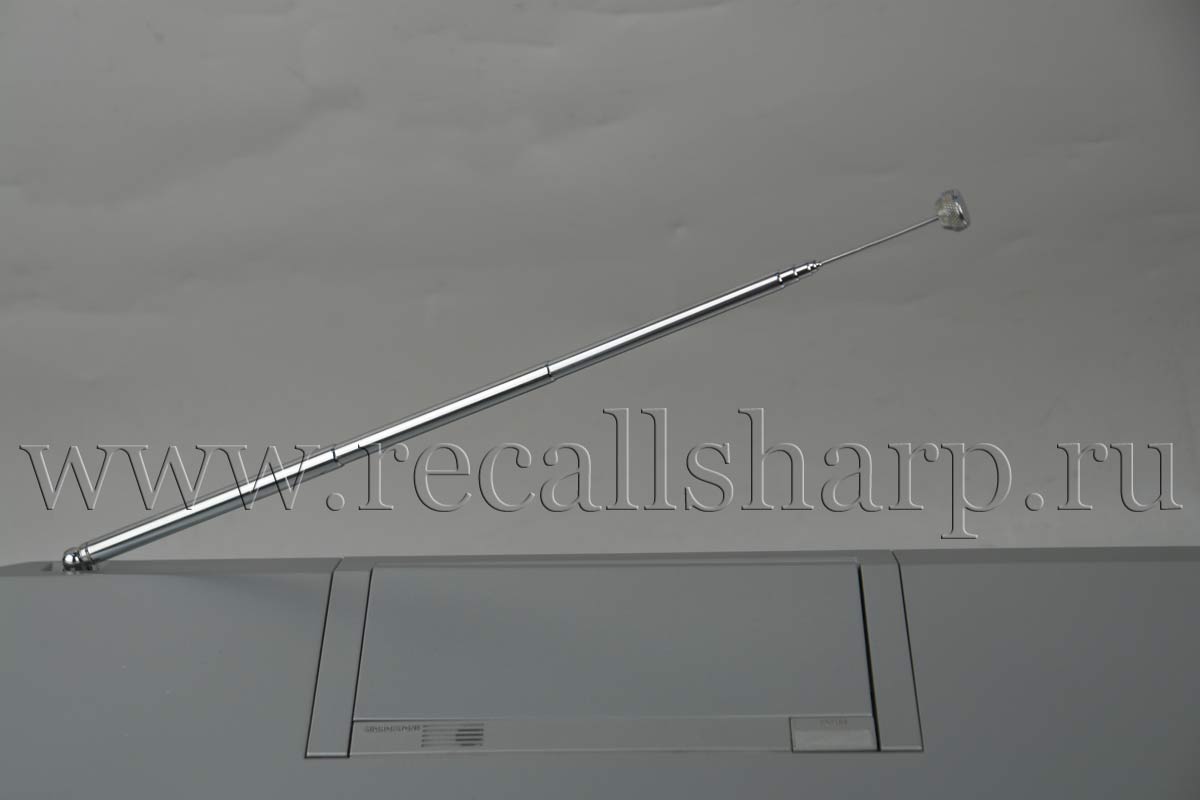

Antennas FM: Telescopic antenna
FM: 75-ohm external antenna jack (minijack)
AM: Built-in ferrite bar antenna
Tape recorder section and general
Recording system 4-track 2-channel stereo
Fast winding time Approx. 1 min. 30 sec. with Sony Cassette C-60
Frequency response 30-14,000 Hz (EIAJ) with standard cassette, with
the TYPE I (NORMAL) button depressed
30-15,000 Hz
(EIAJ) with chromium dioxide cassette, with
the TYPE II (Cr02) button depressed
30-16,000 Hz
(EIAJ) with Sony metal cassette, with
the TYPE IV (METAL) button depressed
S/N 50 dB
(EIAJ)
Wow and flutter 0.045% (WRMS)
Speakers
Approx. 10 cm x 2 wide range
Output power 6.5W+6.5W(EIAJ/DC)

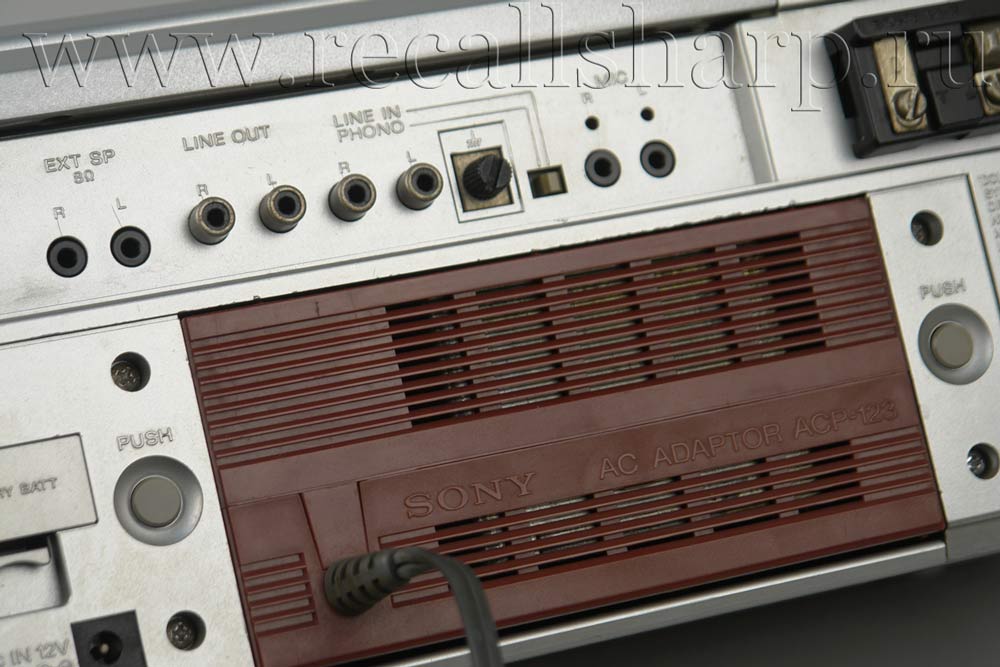

Inputs Two microphone input jacks (minijacks)
sensitivity 0.2 mV (-72 dB) for low impedance microphone
Two line input/phono input jacks (phono jacks)
• sensitivity 0.154 V (-10 dB) input impedance 10 kilohms
(with LINE IN/PHONO selector set to LINE IN)
• sensitivity 1.73 mV (-49 dB) input impedance 2,2 kilohms
(with LINE IN/PHONO selector set to PHONO)
Outputs Two line output jacks (phono jacks)
load impedance 10 kilohms or higher rated output 0.44 V (-5 dB)
at load impedance 47 kilohms
Two external speaker jacks (minijacks)
for 3.2-8-ohm impedance speaker
Headphones jack (stereo binaural jack)
for 8-ohm impedance headphones
Power requirements
DC 12v flashlight batt UM-1x8(R20) or equiv memory batt
UM-3x2(R6)

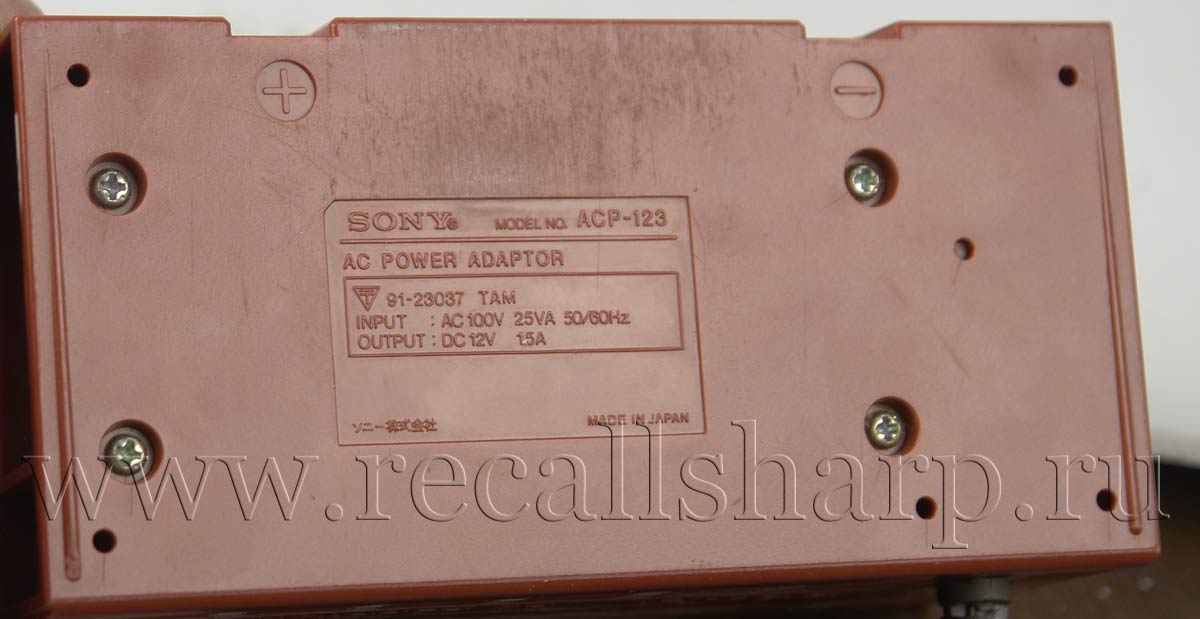

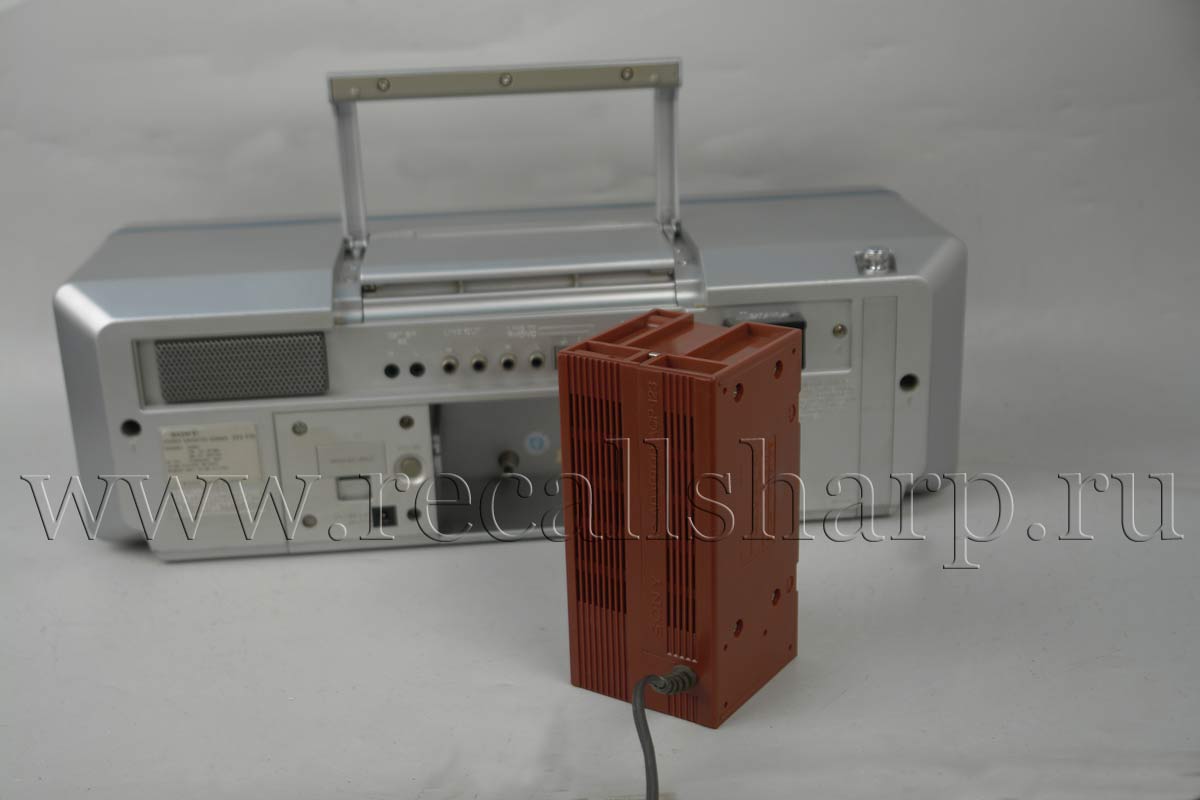

Sony AC adaptor ACP-123
input:AC100V 25VA 50/60HZ output:DC12V 1.5A

Power consumption 25 W ac


Dimensions Approx. 476 x 153 x 180 mm (w/h/d)

Weight Approx. 9.2 kg
incl. batteries
