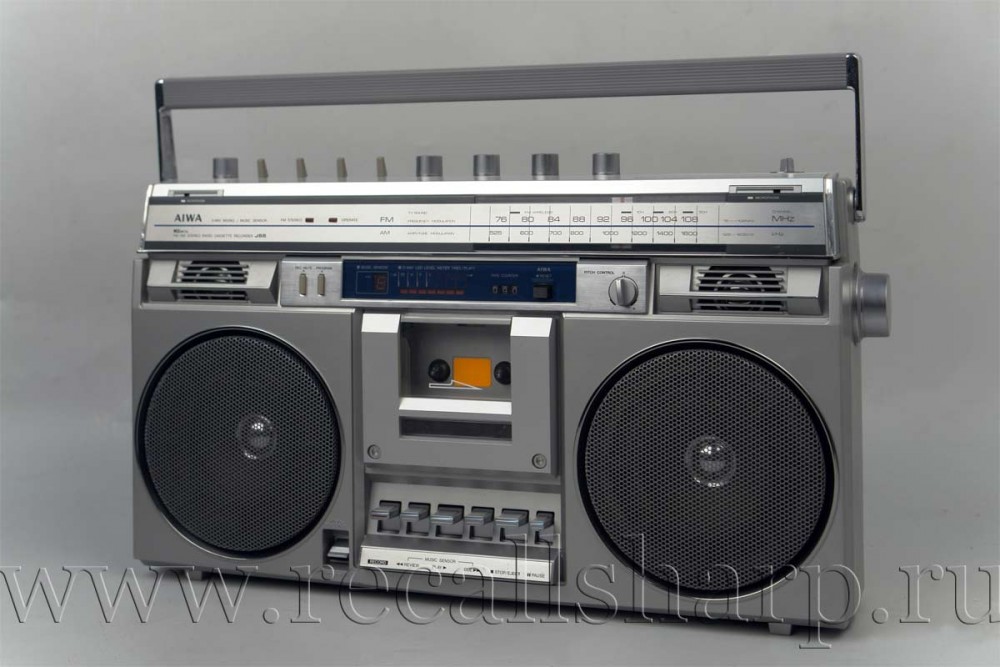

Aiwa CS-J55



: 1981

SPECIFICATIONS
Type Stereo 2 band radio
cassette recorder
Power source AC
100 V 50/60Hz 12w

Batteries, DC12V (UM-1X8)

Output 10W maximum (5W + 5W)
Speakers 4
Tape Recorder Section
Built-in microphone Electret condenser microphone x2
Tape speed 4.8 cm/sec (1-7/8 ips)
Recording system AC bias
Erasing system AC erase

Frequency response LH tape: 50—12,000 Hz

CrO2 tape: 5013000 Hz
METAL tape: 50—16,000 Hz
Signal-to noise ratio
54 dB (LH-band)
Wow and flutter
0.09% (WRMS)


Head Superpermalloy

Radio Section
Frequency ranges FM: 76 — 108 MHz
MW: 525 —1,605 kHz

Antennas Whip antenna for FM
Ferrite bar antenna for AM
Dimensions (WXHXD) 470X150X270 (mm)
Weight 4.7 kg


The specifications and external appearance of this set are subject to change without prior notice.
