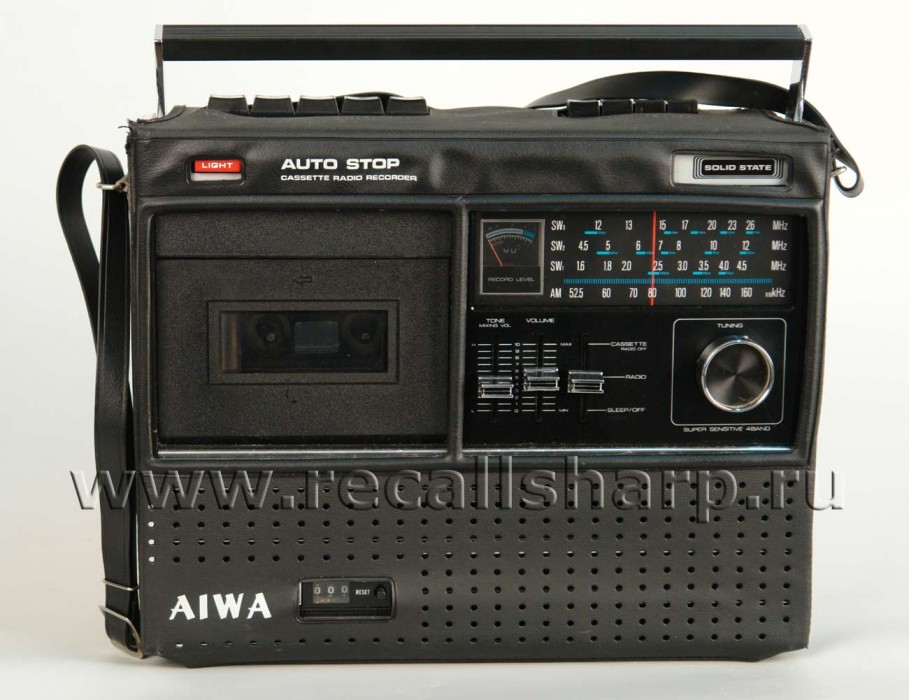

Aiwa TPR-210



: 1972


■ SPECIFICATIONS
Type: Cassette recorder with FM/AM/SW 3-band radio.
Capstan drive half-size recording system
Circuit: 18 transistors, 19 diodes & 1 thermistor
Power source: Dry cells, DC 7.5V(UM-1, 1.5V) x 5;
House current (AC), AC 110—120/220—240V, switchable;
Car battery, DC 7.5V (through car battery adaptor)
Tape Recorder Section
Built-in microphone: Condenser microphone
Type of cassette: C-30, C-60, C-90 & C-120
Tape speed: 4.8 cm/sec. (1-7/8 ips)
Recording time: 120 min. with C-120, forth and back
Recording system: AC bias
Erasing system: AC erasure
Output: 3.3 W
S/N ratio: 50dB
Wow & flutter: 0.3%
Frequency response: 50-12000 Hz.
Radio Section
Frequency range: FM, 88 - 108 MHz.;
AM, 525-1605 kHz.;
SW 3.9- 12 MHz.
Antenna: 11-section rotary whip antenna for FM and SW; Ferrite antenna for AM
Speaker: PMD type, 100 x 150mm, (3-15/16" x 5-29/32") 8 Ohms
Dimensions: 299 x 251 x 90.5mm. (11-13/16" x 9-27/32" x 3-9/16")
Weight: 7.3 lbs. (3.3 kgs.) w/o batteries
• The specifications and external design of this set are subject to change without prior notice.
■ ACCESSORIES
Tape cassette x 1 AC power cord x 1
Battery (UM-1) x5 Earphone x1
Carrying case x 1

:
