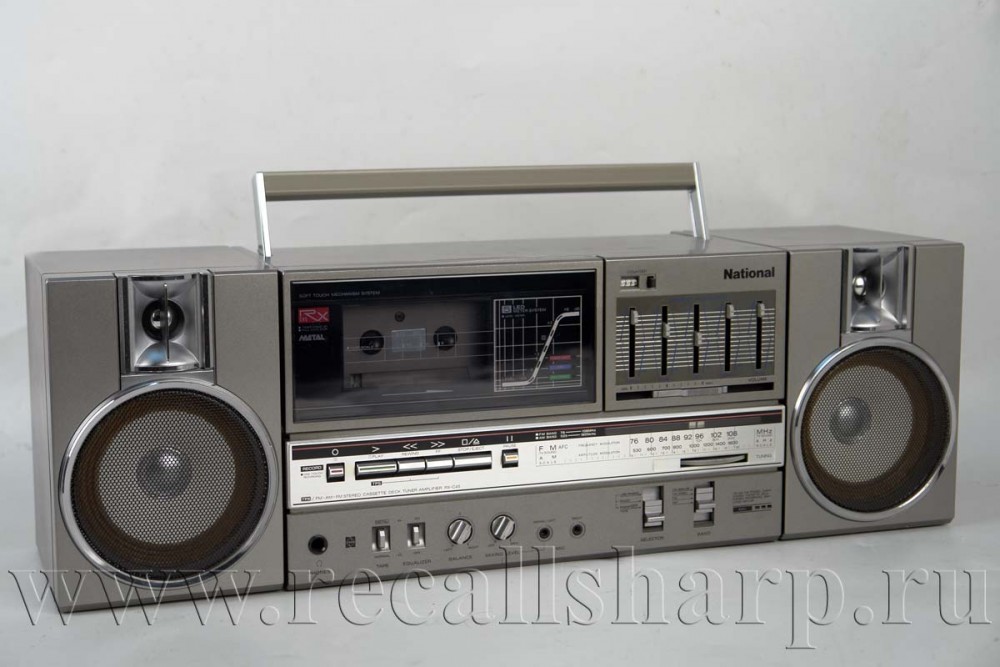

National RX-C 45 gray



: 1983


SPECIFICATIONS

<RADIO>
Radio Frequency Range:
FM; 76-108 MHz

AM; 525-1605 kHz


Frequency Range:
40-12,000 Hz (with normal tape)
40-13,000Hz(with Metal tape)
Recording System: DC bias,

Erasing system Magnet erase
Track System: 4-track 2-channel stereo recording and playback

Tape speed: 4.8 cm/s

Wow&Flutter : 0.08%(WRMS)

PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME: Approx. 110 seconds with C-60 cassette tape

Power Requirement:
<GENERAL>
Power Requirement:
AC; 100 V, 50/60 Hz

Power consumption; 17W (AC only)

Battery; 12 V (eight "UM-1", D size batteries)

Car Battery; with optional car battery cord RP-952

Power Output: 15W (7.5Wx2)…(RMS max)
Speaker: Woofer;10cm PM Dynamic Speaker 3Ω
Tweeter; 3cm Ceramic Speaker(1.3kΩ)

Jacks:
Input;
MIC; sensitivity 0.26 mV/applicable microphone impedance

200-600 Ohm

LINE IN; sensitivity 200 mV/47 kOhm.

Output; EXT SP; 3 Ohm
HEADPHONES; 8 Ohm

Dimensions: Total Size
(WxHxD) 537x176x183 mm
Main unit
304(W)x176(H)x183(D)
Speaker Box
118(W)x176(H) x148(D)

Weight: 5.4 kg without batteries

:
National RX-C 45
Panasonic RX-C 45 LS
Panasonic RX-C 45
Anatoliy : 25.03.2011 15:58:10
Normal 60-12,000Hz
Metal  60-13,000Hz

; 0.08%{WMRS}
