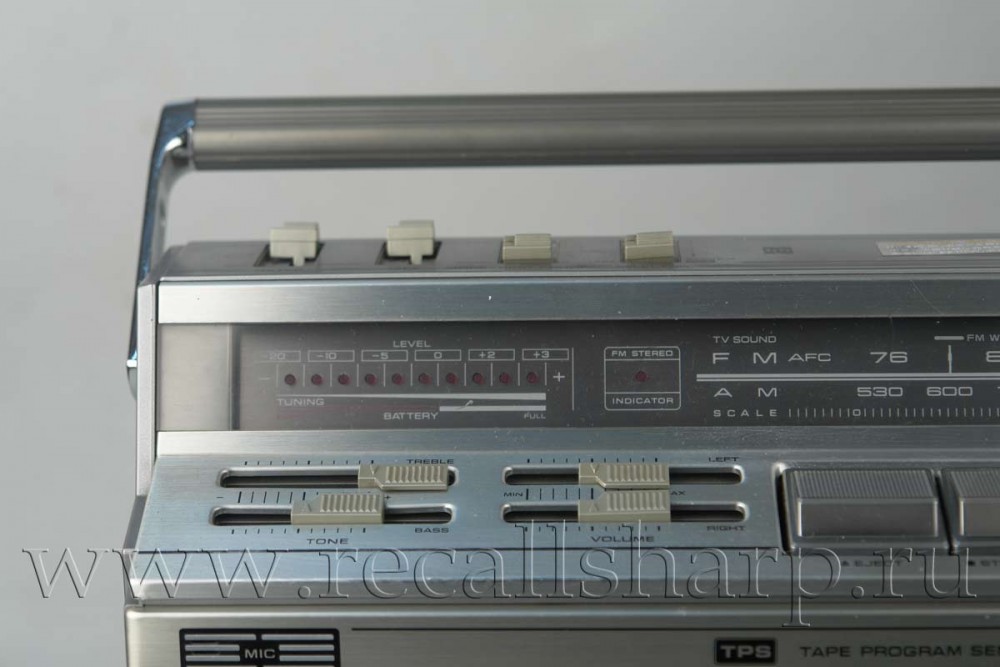

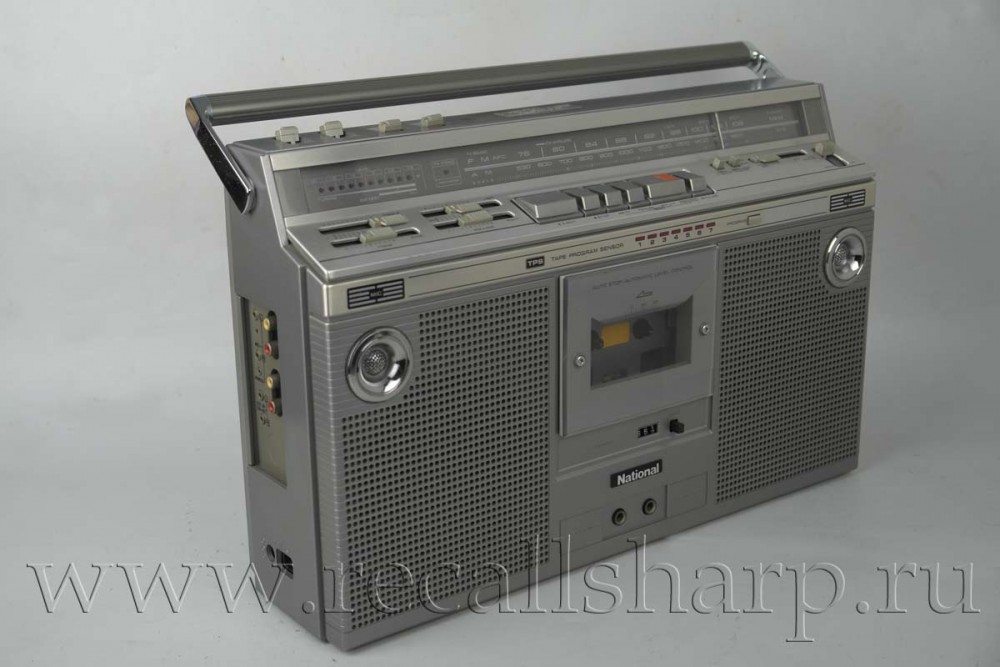

National RX-5300



: 1979


SPECIFICATIONS


RADIO FREQUENCY RANGE: FM; 76-108MHz

AM; 525-1605 kHz


POWER REQUIREMENT: AC; 100V, 50/60Hz

POWER CONSUMTION; 15W




POWER OUTPUT: 5 W (2.5 Wx2) (EIAJ/DC.)


SPEAKERS: Woofer; 14 cmx2 PM dynamic speaker 3Ω

Tweeter; 3cmx2 PM dynamic speaker 4Ω



FREQUENCY RANGE: 50-13,000 Hz (with normal tape)

50-14,000 Hz (with CrO2)


RECORDING SYSTEM: AC bias, AC erase

TAPE SPEED: 4.8cm/s.
W&F 0,15%(WRMS)
PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME: Approx. 90 seconds With C-60 cassette tape
TRACK SYSTEM: 4-track 2-channel stereo recording and playback

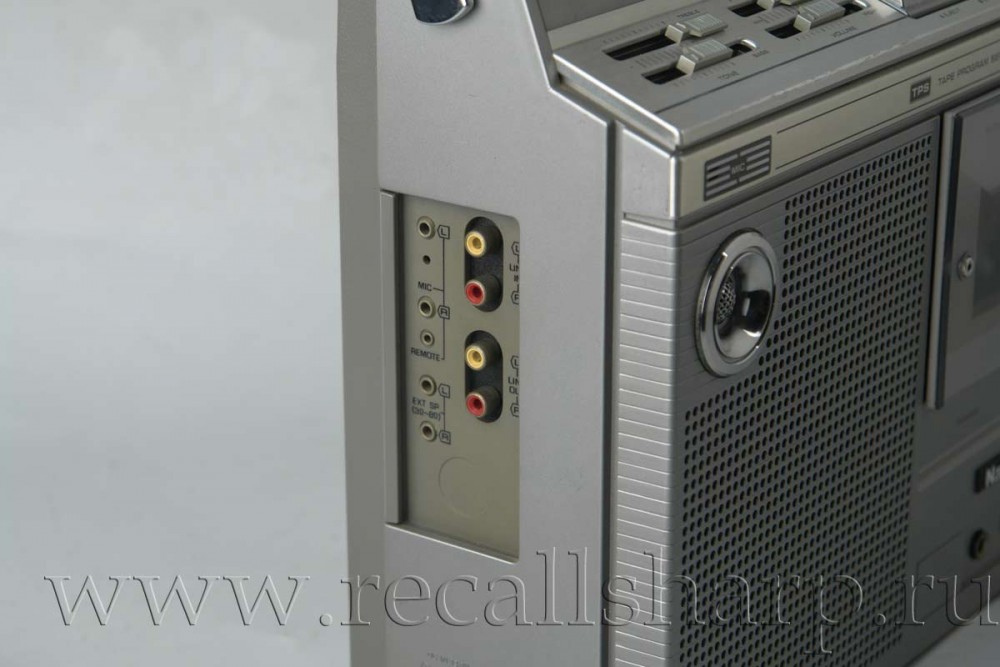

JACKS:

EXTSP;3-8Ω

HEADPHONES; 8Ω

EXT ANTENNA and EARTH
PHONO EARTH

OTHERS;


REMOTE; for start and stop at hand



Power Source: AC; 100V (50/60Hz),15w


Battery ; 12V(8-UM-1 "D"size batteries)

Maximum Output: 8W (4W x 2)


Dimensions: 467(W) x 292(H) x 131(D)mm


Weight: 6kg without batteries


:
National Panasonic RX-5300 F
Panasonic RX-5300 LS
