Год начала выпуска: 1978
Регион: Европа
SPECIFICATIONS
Semiconductors : 5 ICs, 19 transistors

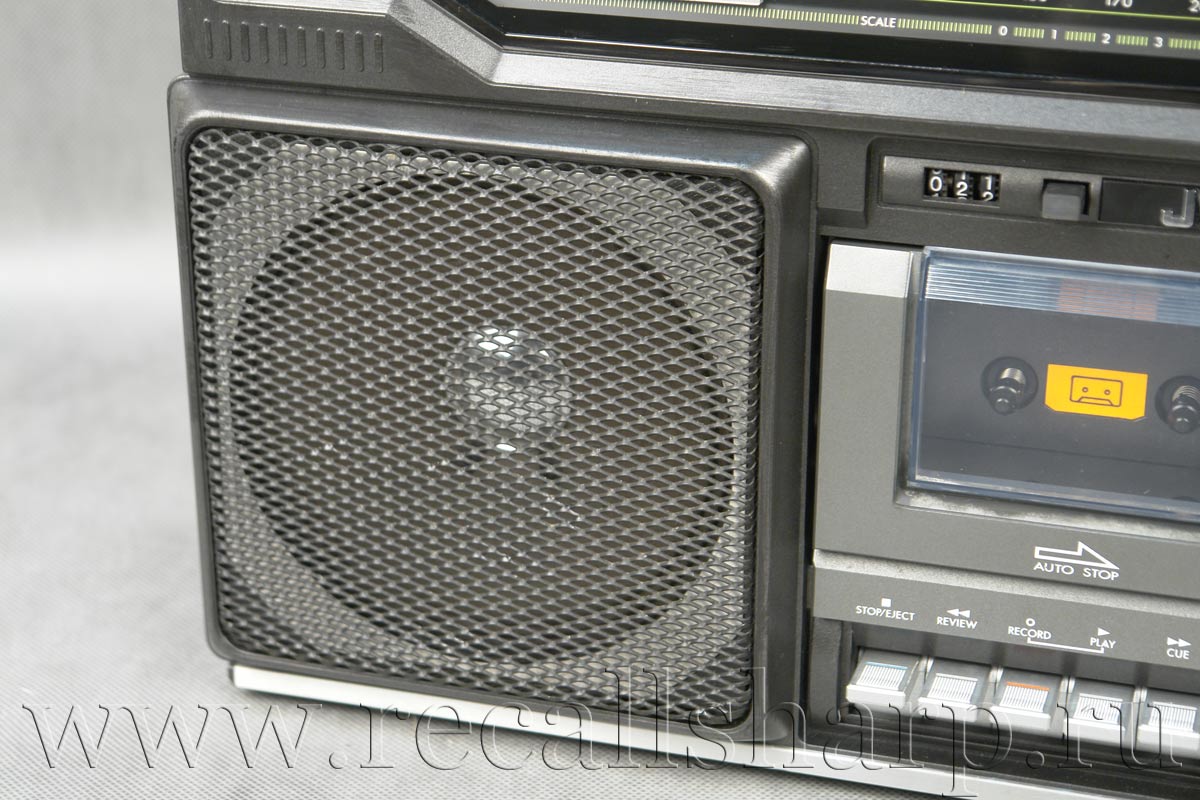

Speakers : 16cm (6-1/2") x 2

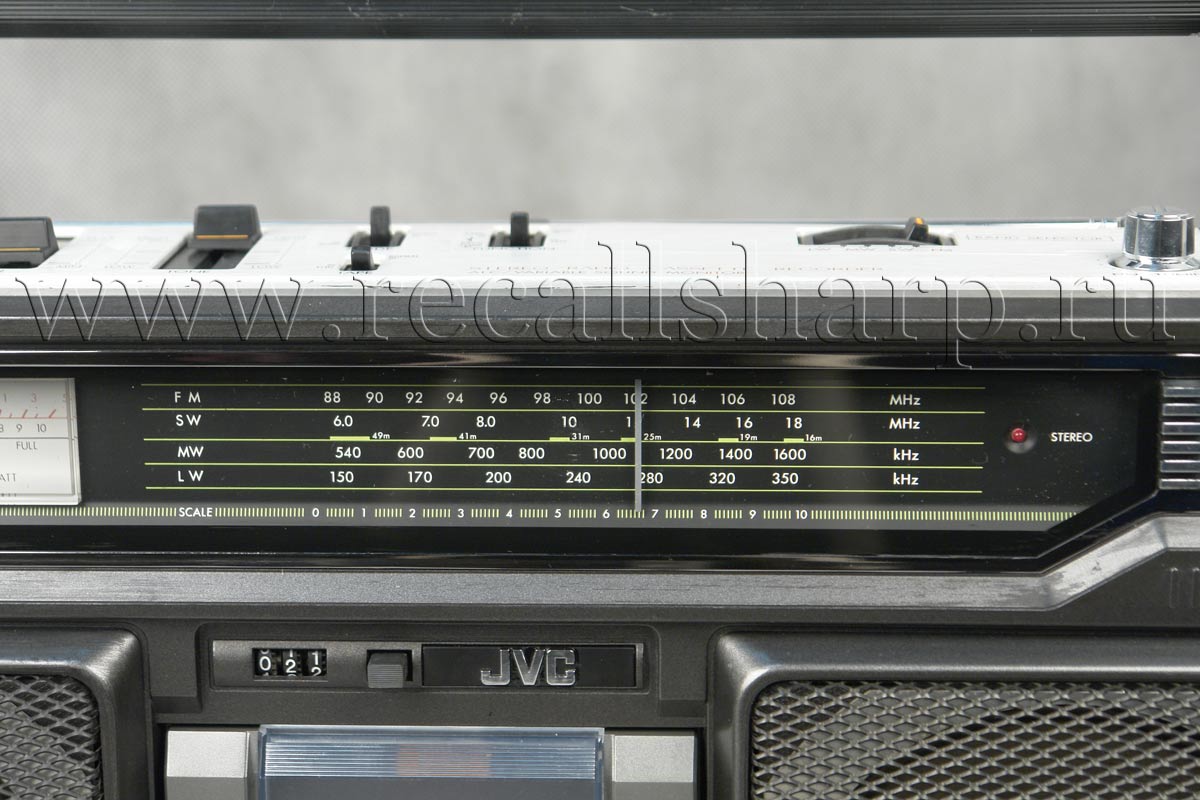

Tuner section
Frequency ranges : FM 88 - 108MHz
SW 6 — 18MHz
MW 540- 1600kHz
LW 150-350kHz
Antennas : Telescopic antenna for SW &
FM
Ferrite core antenna for MW & LW

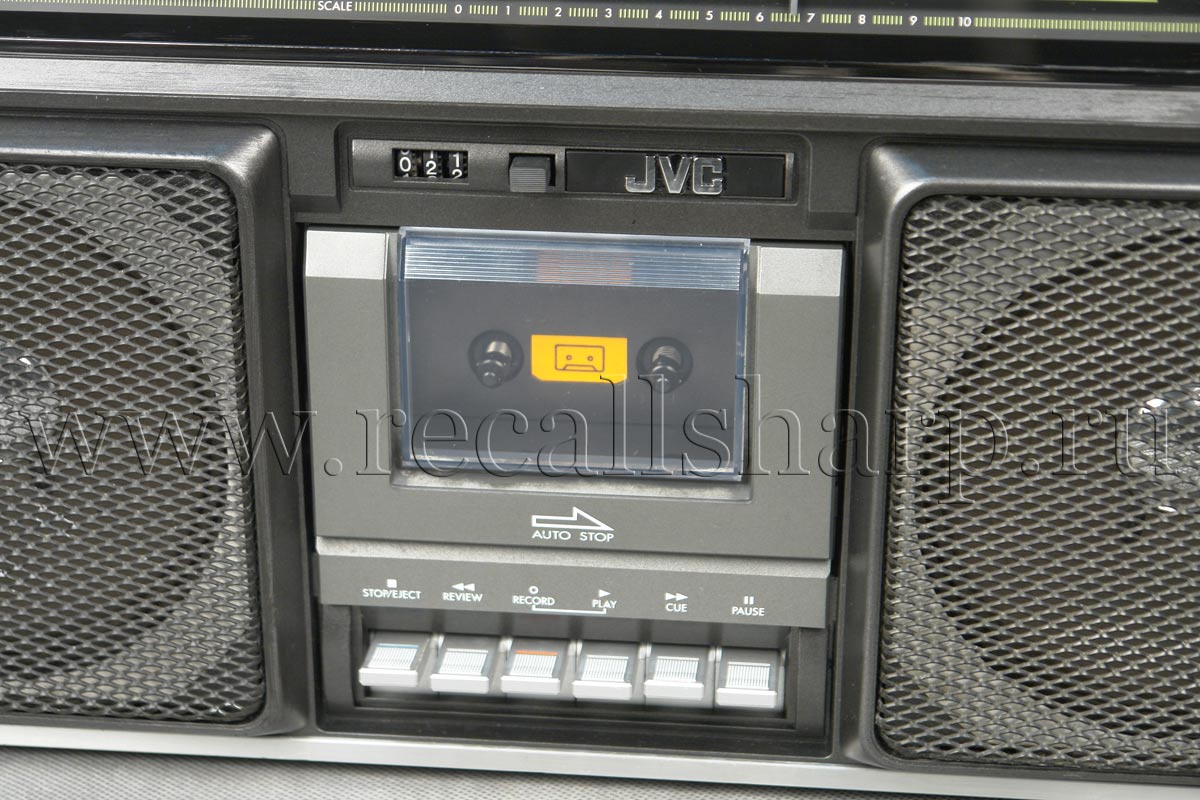

Tape recorder section
Tape : Philips type cassette
Track system : 4-Track 2-channel stereo
Frequency response : 50—12,000Hz (with chrome tape)
50—10,000Hz (with normal tape)
Wow & flutter : 0.14% (WRMS)
S/N ratio : 45dB
Rewind time : Within 90 sec. (C-60 cassette)
Fast forward time : Within 90 sec. (C-60 cassette)
Amplifier section
Power output : Max. 9 (4.5 + 4.5) W (DC)
Input jacks : Mic x 2 (0.8mV, low impedance)
Output jacks : Ext. speaker x 2
(load impedance 4£2)
Headphones x 1
Input/output jack : DIN jack
Power supply : DC 12V (8 "R20" batteries)
Car battery
AC 240/220/110V, 50/60Hz
Power consumption : 15W (at RMS power output: RC-636L)
14W (at 10% distortion power output: RC-636LB)
Dimensions : 470(W) x 264(H) x 123(D)mm
(18-1/2" x 10-3/8" x 4-7/8")
Weight : 5.3kg (11.7lbs.)
(without batteries)
6.0kg(13.2lbs.) (with batteries)
Design and specifications subject to change without notice.
|
