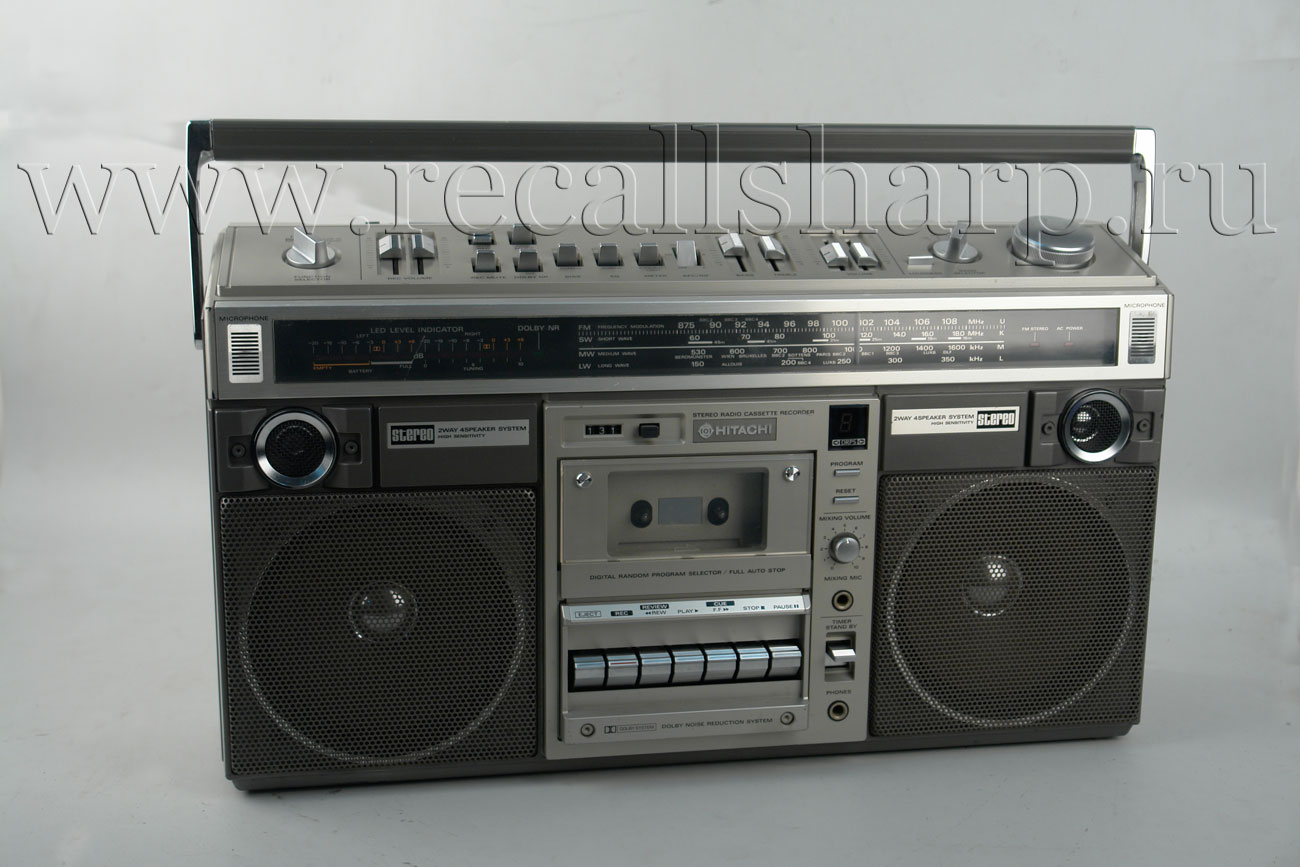

Hitachi TRK-8190 E



: 1980


Specification
GENERAL SECTION
Semi-conductors: IC's: 11
Transistors: 33 Diodes: 28 LED: 18 Varicap: 1 Varistors : 2
Power(Mains) Supply: AC: 220V. 50Hz (For E]
240V. 50Hz [For E (BS)] DC:13.5V(IEC R20x9) Car: Use car battery adaptor
Power (Mains) Consumption: 24 W
Dimensions: 540(W) x 304(H) x 166(D) mm
Weight: 7.6 kg (with batteries)
Power output: 8W/CH (Max.), 5W/CH (THD 10%)
Speaker:
16 cm, 3.2 ohms x 2
5 cm, 4 ohms x 2
TUNER SECTION
Circuit System: FM/SW/MW/LW 4-band
superheterodyne
Tuning Range:
FM: 87.5 to 108 MHz
SW: 6.0 to 18 MHz
MW: 530 to 1605 kHz
LW: 150 to 350 kHz
Sensitivity: FM: 10 dB (pra.) 2dB (max.)
SW: 25 dB (pra.) 20 dB (max.) MW: 42 dB (pra.) 30 dB (max.) LW: 52 dB (pra.) 40 dB (max.)
Intermediate Frequency: FM: 10.7 MHz
SW/MW/LW: 468 kHz Antennas (Aerials): FM/SW: Telescopic antenna or
External antenna MW/LW: Ferrite-core antenna TAPE RECORDER
Tape: Cassette tape (C-30, 60, 90)
Tape Speed: 4.75 cm/s
Recording System: AC bias, 57 kHz
Erasing System: AC erasing
Frequency Response:
Normal: 50 ~ 12,000 Hz
Cr02: 50 ~ 14,000 Hz S/N
(Signal to Noise Ratio): 50 dB (Dolby NR OFF)
60 dB (Dolby NR ON) Cross Talk: 50 dB
Erase Ratio: 65 dB
Input Sensitivity and Impedance: Microphone: 0.4 mV, 500 ohms
Phone: 3 mV . 50 Kohms Record/PlaybacklDIN): 6mV, 12 Kohms Output Level and Impedance: Record/Playback (DIN): 775 mV, 5 Kohms
Ext. speaker: 3.2 ohms Fast Forward or
Rewinding Time: 110 sec (Using C-60)
Distortion: 1.5%
Motor: DC micromotor


:
