Matsushita Electric Industrial , Ltd. (MEI), Panasonic, National, Technics Quasar, , .

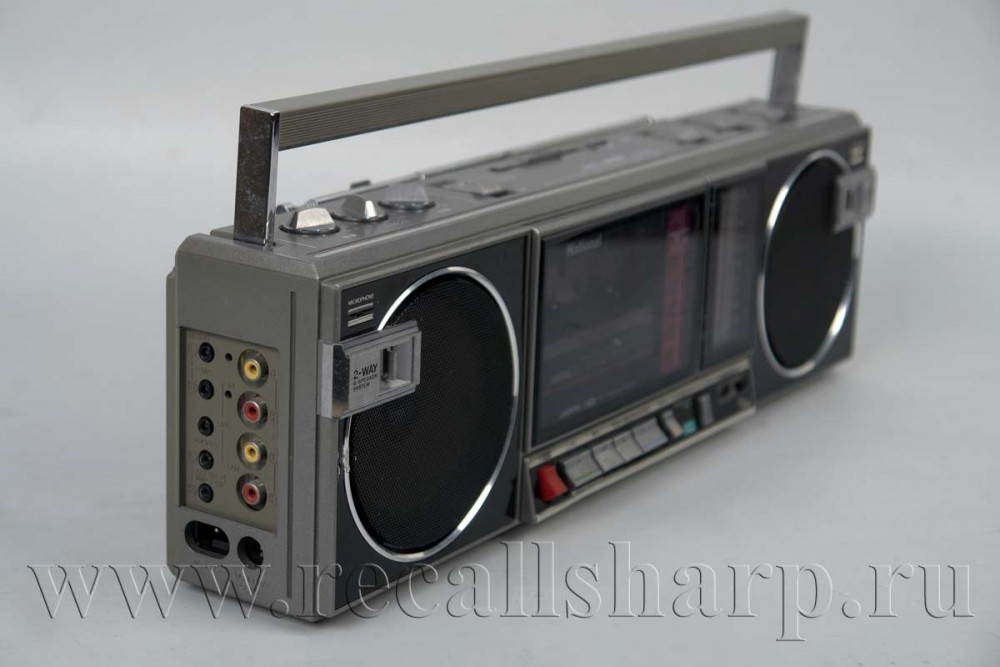

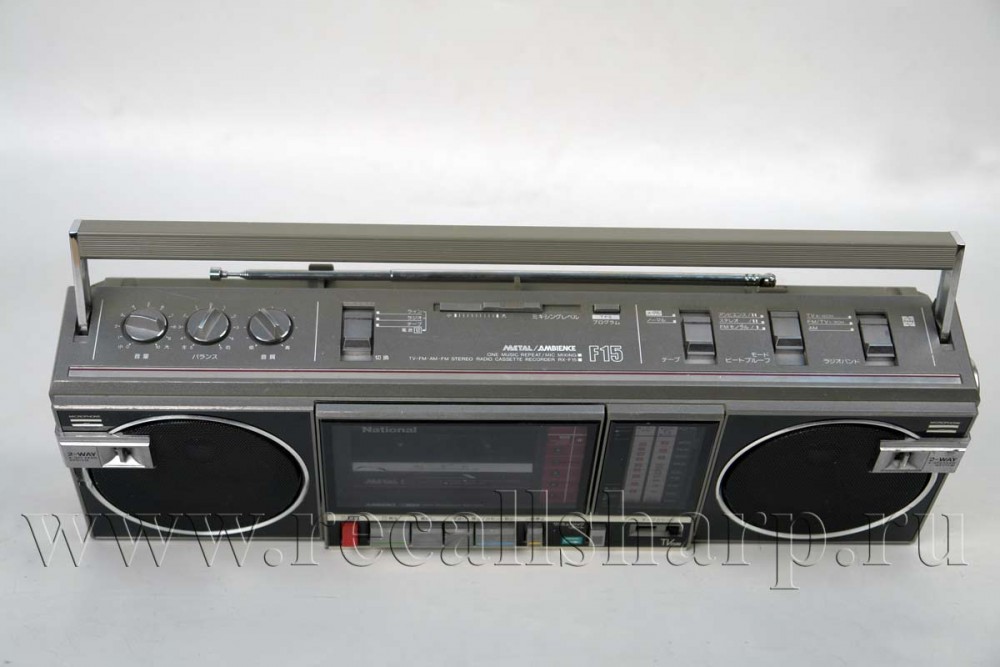

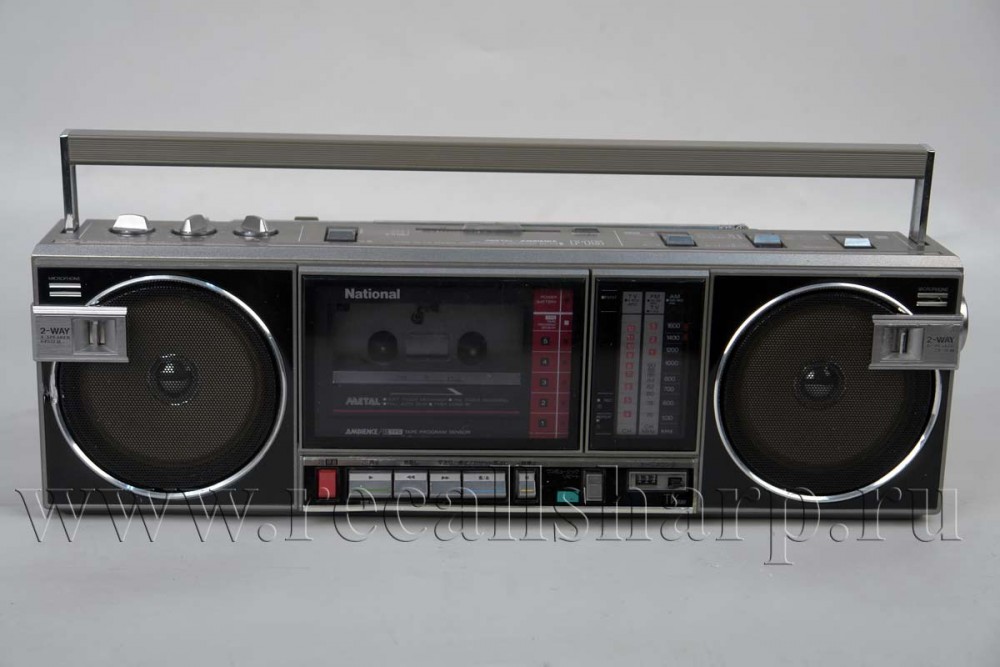

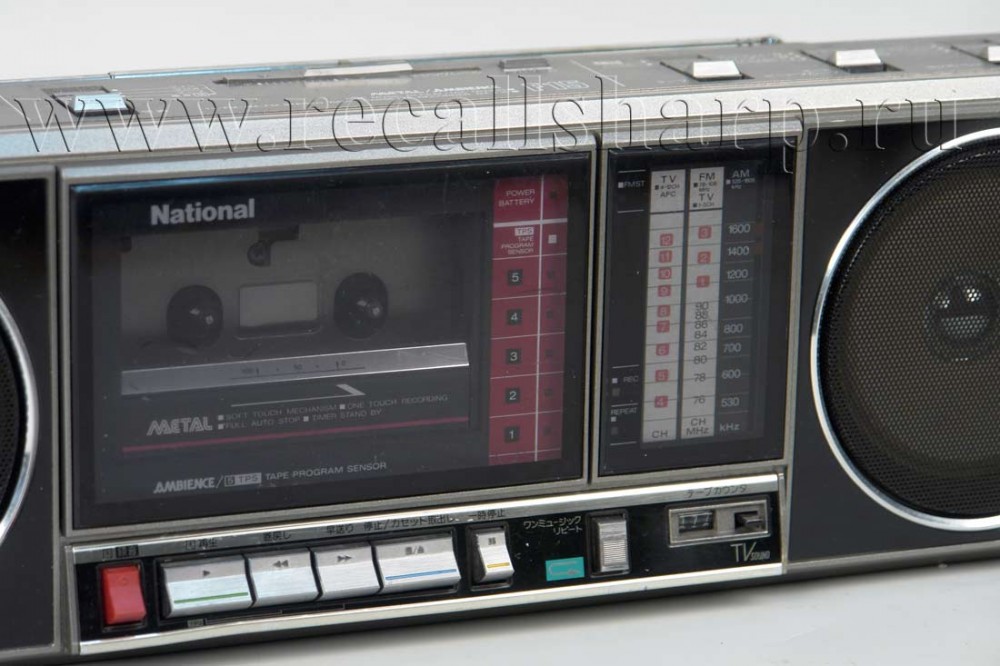

National RX-F15



: 1983


SPECIFICATIONS

RADIO FRQUENCY RANGE: TV(4-12CH);175-222MHz

FM\TV(1-3CH); 76-108 MHz

AM; 525-1605 kHz

POWER REQUIREMENT: AC; 100 V. 50/60 Hz


Power consumption;10 W


Battery; 9 V (six UM-2, "C" size batteries)

Car battery; with optional car adaptor RP-917


POWER OUTPUT: 2.5 W x2EIJA\DC

SPEAKER: Woofer 10 cmx2 PM speakers 3Ω

Tweeter 1.5 cmx2 700Ω

FRQUENCY RANGE: 60-12,000 Hz (with Normal tape)

60 -13,000 Hz (with Metal tape)

W&F: 0,07%(WRMS)


RECORDING SYSTEM: AC bias, Magnet erase

JACKS: INPUT; MIC; sensitivity 0.25 mV/applicable microphone

impedance 200 Ω-600Ω (recommended microphone RP-8135)

LINE IN; sensitivity 200 mV/50 kΩ DC IN; 9 V

OUTPUT; LINE OUT; sensitivity 0.42 V/10 kΩ

EXT SP; 3-8Ω

HEADPHONES; 32Ω

DIMENSIONS: 441 mm (W)x 141 mm (H)X105 mm (D)

WEIGHT: 3.2 kg without batteries

subject to change without notice.


:
