Toshiba 1875 . Tanaka Engineering Works. - (Hisashige Tanaka) . - , .

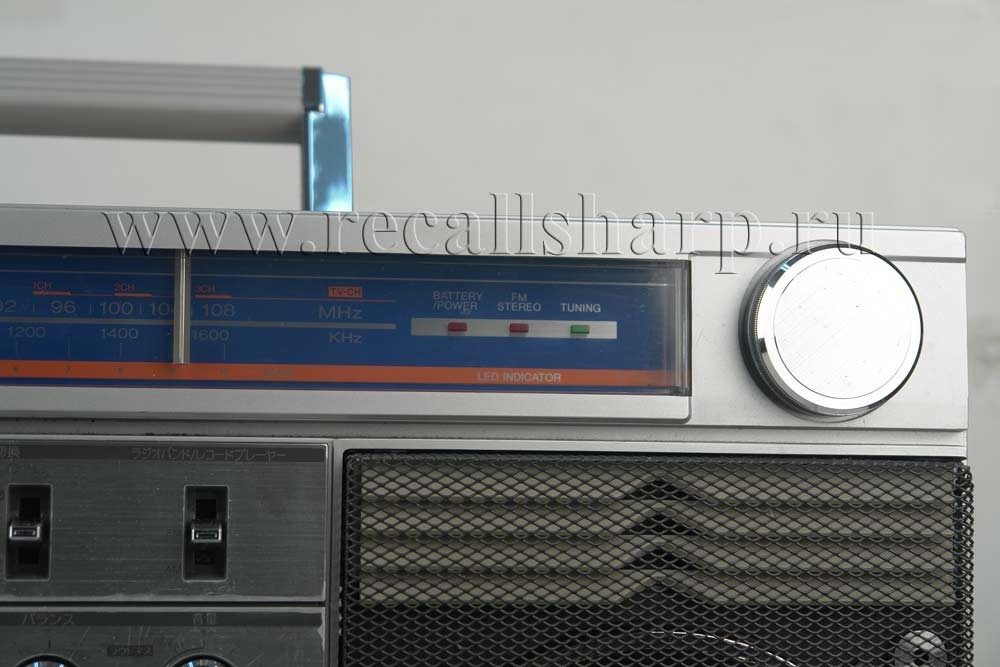

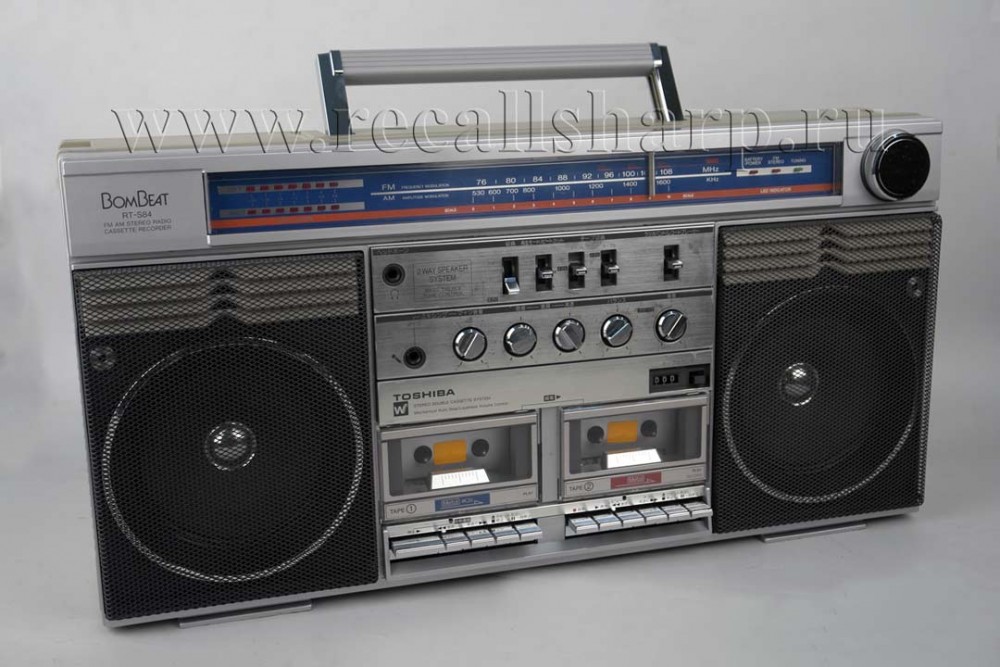

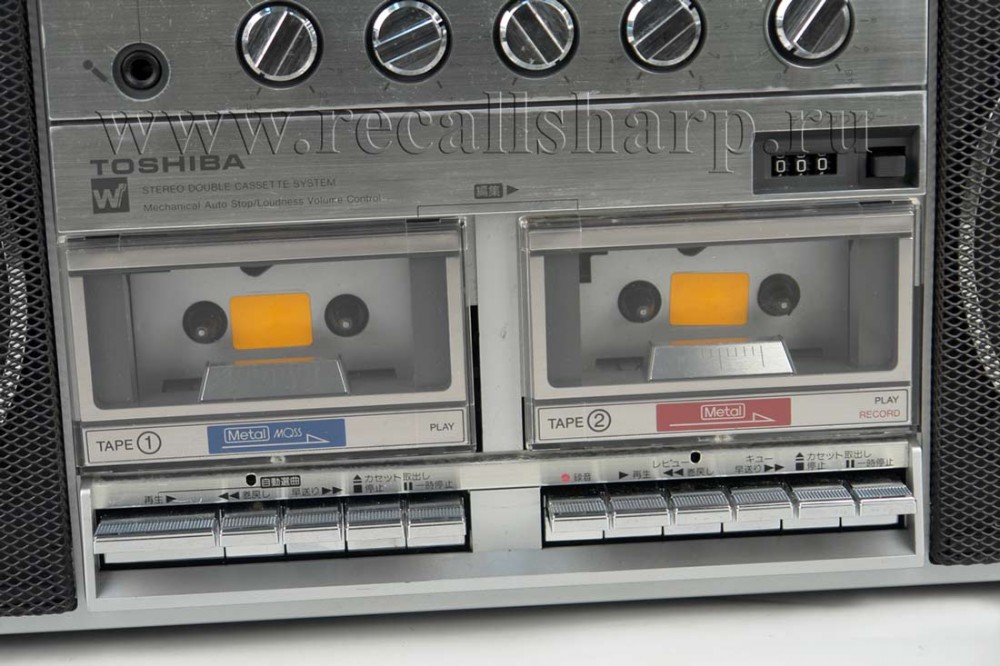

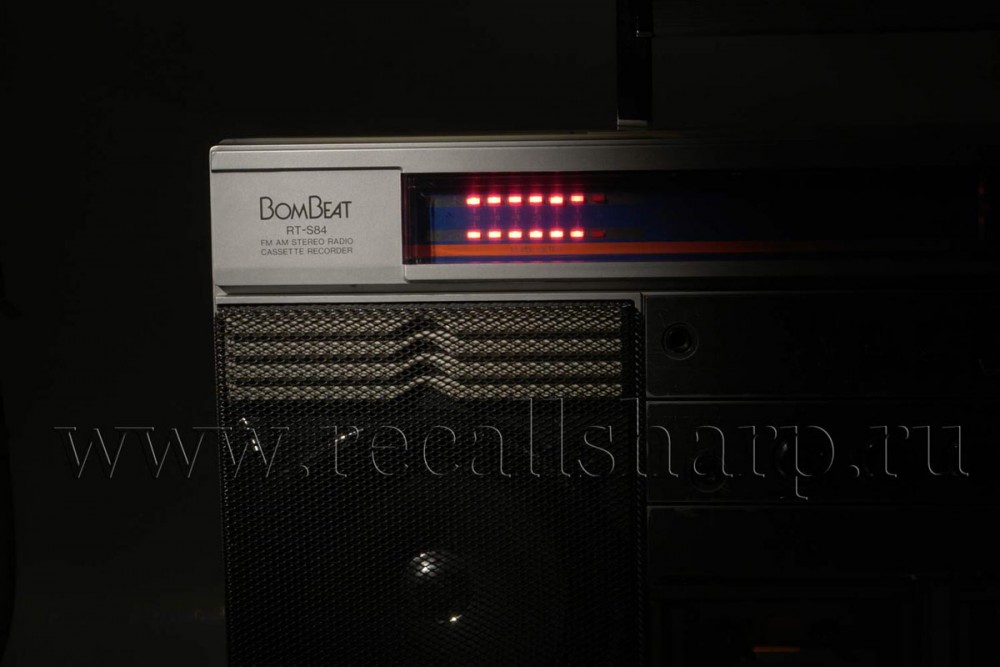

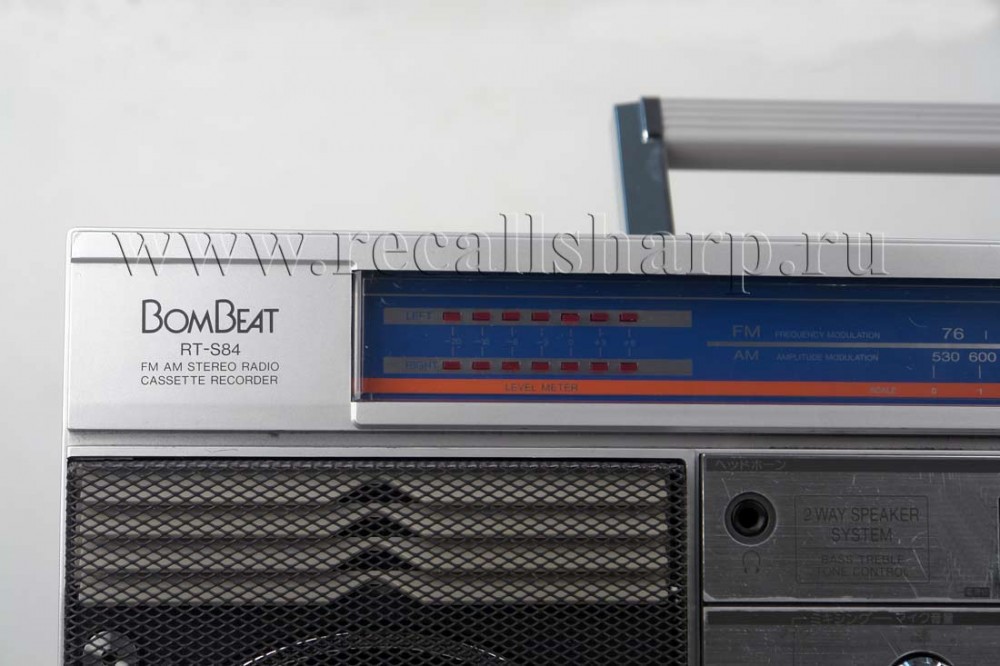

Toshiba RT-S 84 BomBeat



: 1980


Cassette Tape Used Normal: C-30, C-60, C-90, C-120
Chrome: C-45, C-60, C-90
Metal: C-46, C-60, C-90

Tape Speed4.8 cm/sec.
Track SystemFour-track two-channel stereophonic
Recording SystemAC bias (85 kHz)
Erasing SystemAC erasing
Frequency ResponseNormal: 50 Hz to 12 kHz
Metal: 40 Hz to 15kHz


Receiving Frequency
FM: 76 - 108 MHz
AM: 525 - 1605 kHz


Intermediate Frequency
FM: 10.7 MHz
AM: 455 kHz

Antenna FM: telescopic antennas
AM: ferrite-core antenna


Speakers Woofer (160 mm dia. dynamic) x 2
Tweeter (40 mm dia. dynamic) x 2
Jacks
[MIC] jack x 2, Impedance 200 ohm to 2k ohm,3.5 mm
[MIXING MIC] jack x 1, impedance 200 ohm to 2 k ohm,
6.3 mm
[AUX/PHONO] jack x 2, Impedance 20k ohm, pin-type
[LINE OUT] jack x 2, Impedance 4.7 k ohm, pin-type
[SPEAKER] jack x 2, Impedance 3.2 ohm to 8 ohm,
3.5 mm
[PHONES] jack headphone,
6.3 mm

Power Supply
AC 100 V, 50/60 Hz
DC 15 V (SUM-1 "D" size x 10)

Power Consumption 20W
Dimensions 630 (W) x 320 (H) x 122 (D) mm
Weight8.6 kg (without batteries)

Specifications are subject to change for improvement.

:
Toshiba RT-S 87 BomBeat
Toshiba RT-S 83 BomBeat
