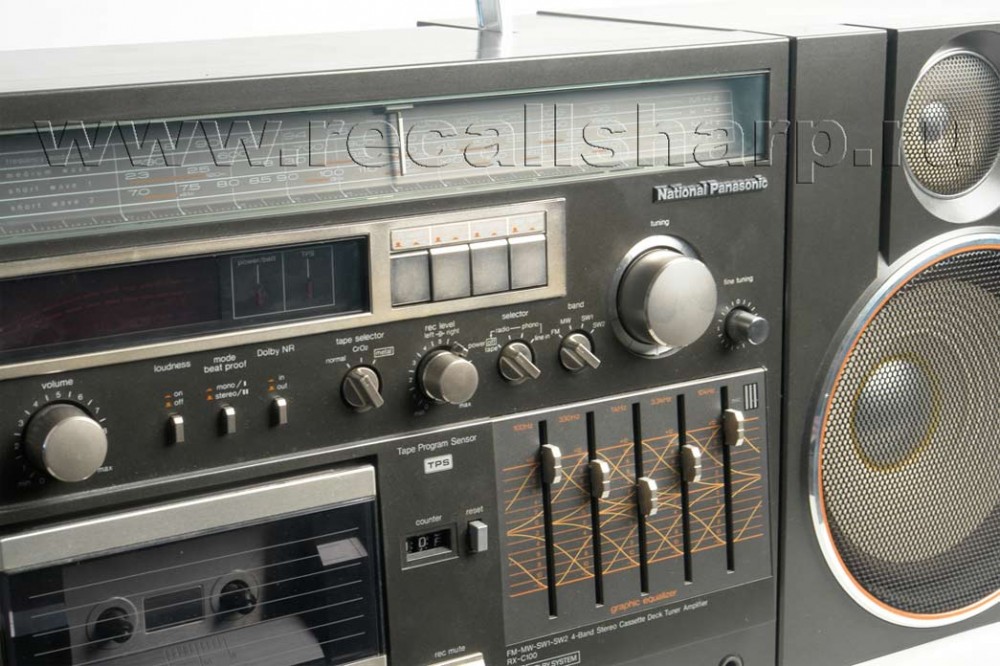

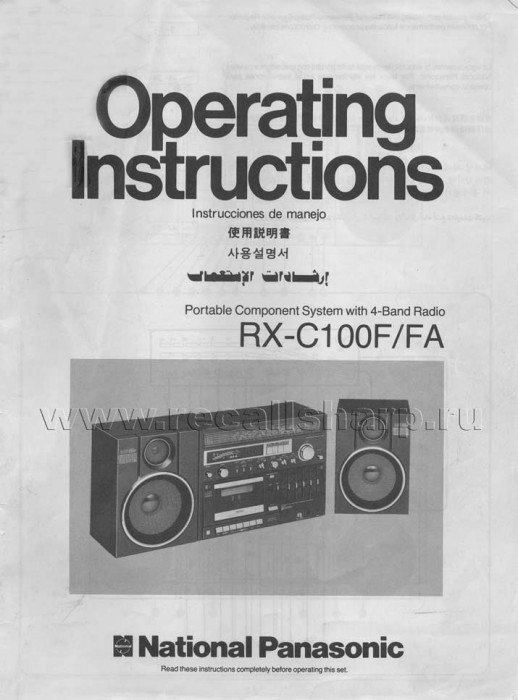

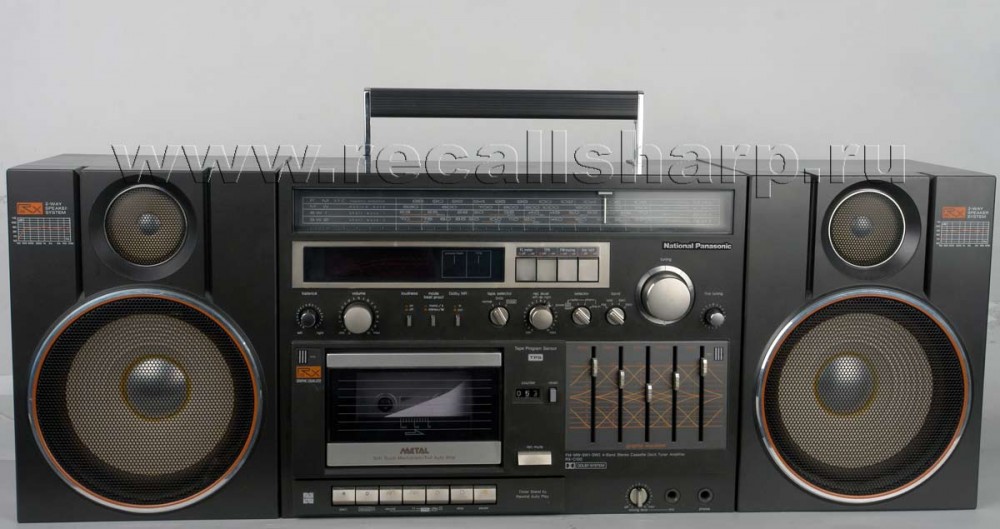

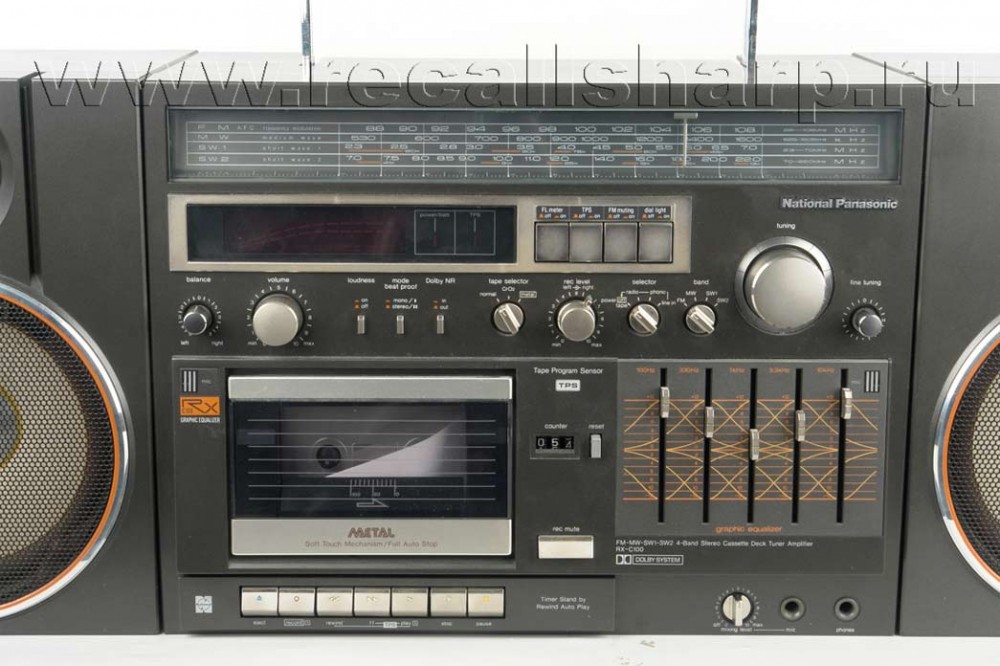

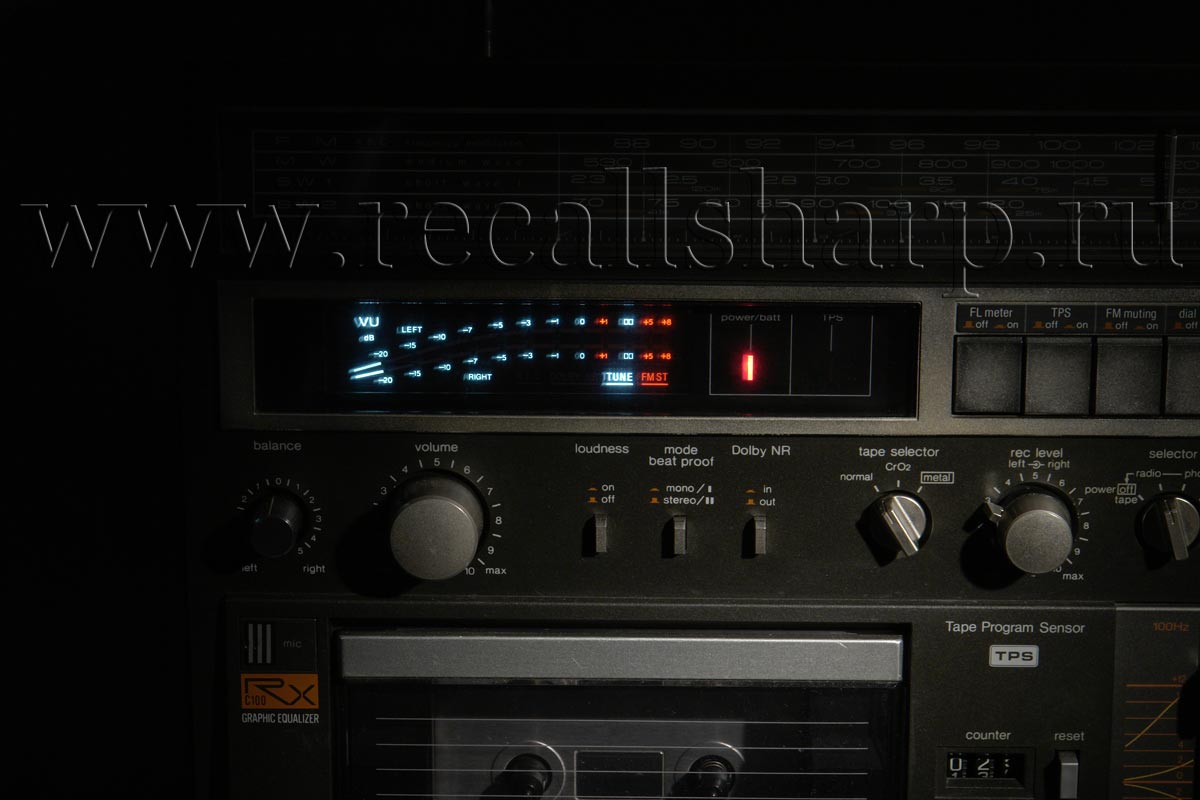

National Panasonic RX-C100 F / FA



: 1982


SPECIFICATIONS

RADIO FREQUENCY RANGE: FM; 88-108 MHz

MW; 525-1605 kHz

SW1; 2.3-7.0 MHz

SW2; 7-22 MHz

POWER REQUIREMENT: AC;

RX-C100F ... 110-115/115-127/200-220/230-250 V, 50/60 Hz

Power consumption; 65 W RX-C100FA...240V,50Hz

Power consumption; 60 W Battery; 15 V (ten UM-1, "D" size batteries)

Car battery; with optional car battery cord RP-9550

POWER OUTPUT: RX-C100F;

80 W(40 Wx2)...PMPO

40 W (20 Wx2)... RMS (max.)

RX-C100FA;

60 W(30Wx2)... PMPO

40 W (20 Wx2)... RMS (max.)

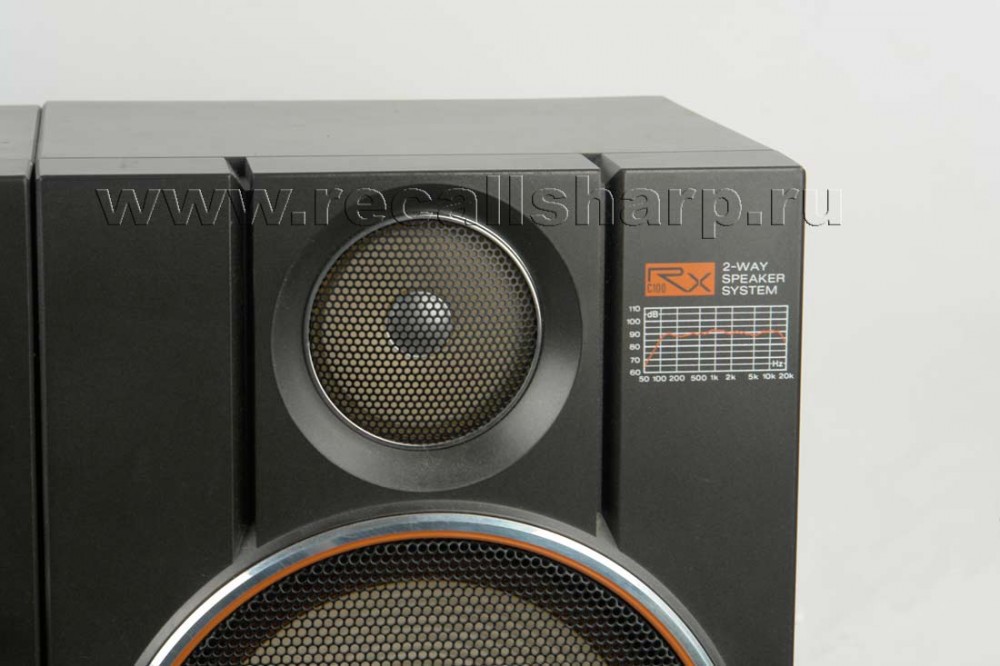

SPEAKERS:

Woofer; 16 cm PM dynamic speaker

Tweeter; 6.5 cm PM dynamic speaker

FREQUENCY RANGE:

40-15,000 Hz (with normal tape)

40-16,000 Hz (with Cr02 tape)

40-17,000 Hz (with Metal tape)

WOW & FLUTTER: 0.05% (WRMS)

RECORDING SYSTEM: AC bias, AC erase

TAPE SPEED: 4.8 cm/s.

PROGRAM TIME: 1 hour with C-60 cassette tape

FAST FORWARD and

REWIND TIME: Approx. 90 seconds with C-60 cassette tape

TRACK SYSTEM: 4-track 2-channel stereo recording and playback

JACKS:

INPUT;

MIC; sensitivity 0.26 mV/applicable microphone impedance

200 Ohm-600Ohm (recommended microphone RP-8135)

MIX MIC; sensitivity 0.8 mV

LINE IN; sensitivity 100 mV/47 kOhm

PHONO; sensitivity 2.5 mV/47 khm

OUTPUT;

LINE OUT; sensitivity 420 mV/4.7 Ml

EXT SP; 8Ohm

HEADPHONES; 8 Ohm

OTHERS; DC IN; 13.2 V (12-15 V)

AC IN

EXT ANTENNA and EARTH PHONO EARTH

DIMENSIONS: 70.8 cm (W) x 25.6 cm (H) x 21.7 cm (D)

27i"(W)x10 1/8 "(H)x81/2"(D)

Main unit; 34.8 cm (W) x25.6cm (H)x21.7cm (D)

1311/16"(W)x101/8"(H)x81/2"(D)

Speaker box; 18.5 cm (W) x 25.6 cm (H) x 18.0 cm (D)

71/4"(W)x101/8"(H)x71/8"(D)

WEIGHT: 11.2 kg (24 lbs 11 oz) without batteries

Specifications are subject to change without notice.
