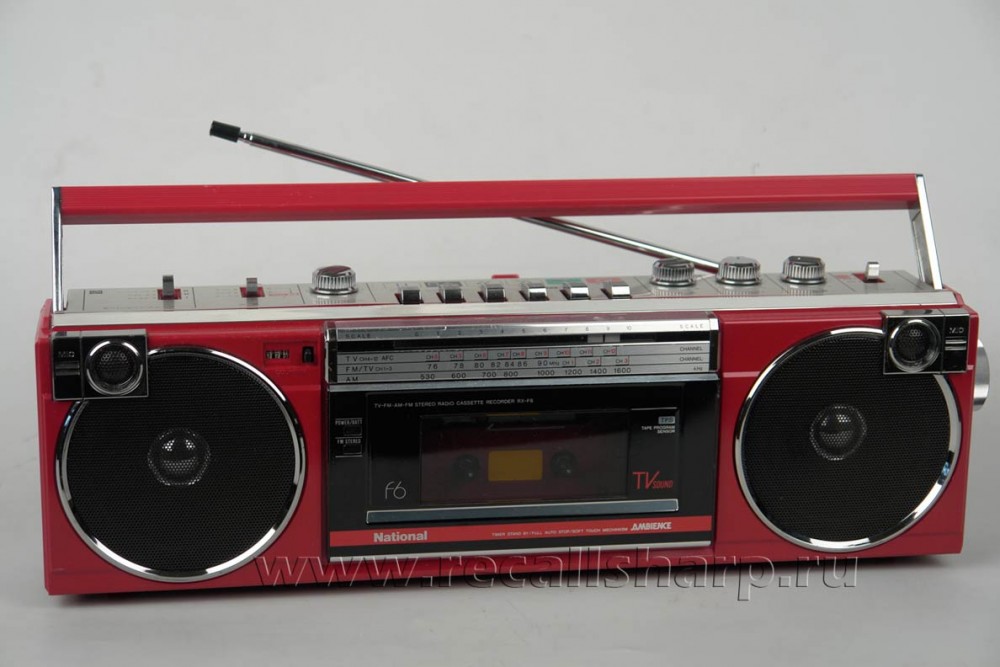

National RX-F6



: 1983


SPECIFICATIONS


RADIO FREQUENCY RANGE:

Frequency range: AM; 530kHz - 1605 kHz

TV 4-12CH 175-222MHz

FM/TV1-3CH; 76 MHz - 108 MHz


POWER REQUIREMENT: AC; 100V, 50/60Hz (With AC adaptor)

Power consumption; AC adaptor Only(10 W )
Battery; 9 V (Six-UM-2, "C" size batteries)

POWER OUTPUT: 7 W (3.5 Wx2) (EIAJ/DC.)

SPEAKERS: Woofer; 10 cm PM Dynamic Speaker( 3Ω)
Tweeter;1.5cm Ceramic Speaker(700Ω)


FREQUENCY RANGE: 100-10,000 Hz EIAJ (with normal tape)


RECORDING SYSTEM: AC bias, Magnet erase
TAPE SPEED: 4.8cm/s.
PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME: Approx. 90 seconds With C-60 cassette tape
TRACK SYSTEM: 4-track 2-channel stereo recording and playback
JACKS: Jacks:
Input;
MIC; sensitivity 0.25 mV/applicable microphone impedance

200-600 Ω

LINE IN; sensitivity 200 mV/50 kΩ.

DC IN 9 V

Output LINE OUT; sensitivity 420 mV/10 kΩ.
EXT SP; 3-8Ω
HEADPHONES; 32Ω,320mV

EXT ANTENNA and EARTH
PHONO EARTH
DIMENSIONS: 412 mm (W) x 131 mm (H) x 100 mm (D)

WEIGHT: 1.97kg without batteries
Specifications are subject to change without notice.
