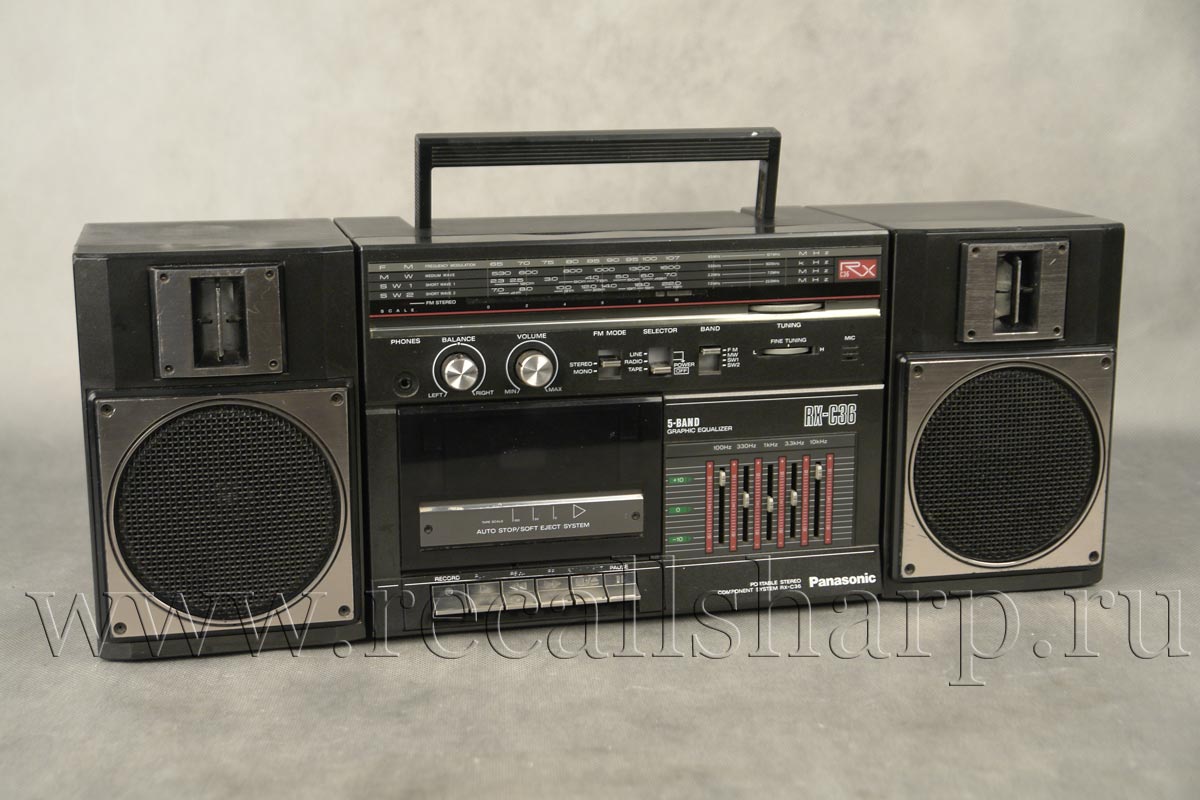

Panasonic RX-C 36 F



: 1986


SPECIFICATIONS

<RADIO>
Radio Frequency Range:

FM; 65-107 MHz
MW; 520-1610 kHz
SW1; 2.3-7.0 MHz

SW2; 7-22 MHz


Frequency Range:

80-10,000 Hz (with normal tape)


Recording System: DC bias,


Erasing system Magnet erase

Track System: 4-track 2-channel stereo recording and playback


Tape speed: 4.8 cm/s




PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME: Approx. 110 seconds with C-60 cassette tape

Power Requirement:
<GENERAL>
Power Requirement:
AC; 100-110/115-127/200-220/230-250 V, 50/60 Hz

Power consumption; 15W

Battery; 9V (six "UM-1", D size batteries)

Car Battery; with optional car battery cord RP-917

Power Output: 10W (5Wx2)…(MPO)
8W(4Wx2) RMS(Max)


Speaker: Woofer;12cm PM dynamic speaker 3Ω


Tweeter; 2cmx4cm Ceramic speaker(300Ω)


Jacks:
Input;

DC in 9V

LINE IN; sensitivity 280 mV/47 kOhm.


Output;

EXT SP; 3-8 Ohm

HEADPHONES; 32Ohm ∅3.5mm


Dimensions: Total size
(WxHxD)510x194x155 mm
Main unit 267(W)x194(H)x155(D)mm

Speaker Box

125(W)mmx194(H)x134(D)mm


Weight: 3.2 kg without batteries
(not included)


:
