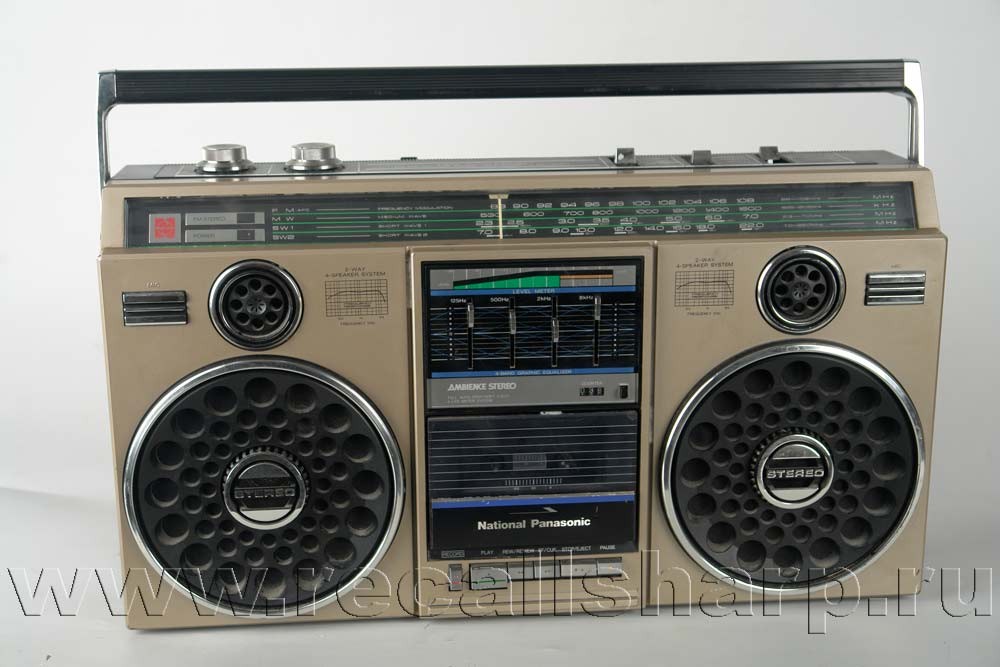

National Panasonic RX-5050 L



: 1982


SPECIFICATIONS

Radio Section

RADIOFREQUENCYRANGE: FM 87.5-108 MHz

MW 525-1605 kHz

SW 5.9-18 MHz

LW145-285 kHz


POWER REQUIREMENT: AC; 100-110/115-127/200-220/230-250 V, 50/60 Hz



Power consumption; 23 WBattery; 12 V (eight-UM-1, D size dry batteries)


Car/boat battery; with optional car/boat adaptor


RP-952



POWER OUTPUT: 14.0 W (7Wx2).. .RMS (max.)


SPEAKERS: Woofer;16 cmPM dynamic speaker


Tweeter; 4cmPM dynamic speaker


Tape Deck Section


FREQUENCYRANGE: 50-10.000 Hz (with normal tape)


50-12.500 Hz (with tape Cr02 type)


50-14.000 Hz (with Metal tape)




RECORDING SYSTEM: AC bias, AC erase


Wow and Flutters 0.07% (WRMS)


TAPE SPEED: 4.8 cm/s


PROGRAM TIME: 1 hour with C-60 cassette tape


FAST FORWARD and


REWIND TIME: Approx. 90 seconds with C-60 cassette tape


TRACK SYSTEM: 4-track 2-channel stereo recording and playback

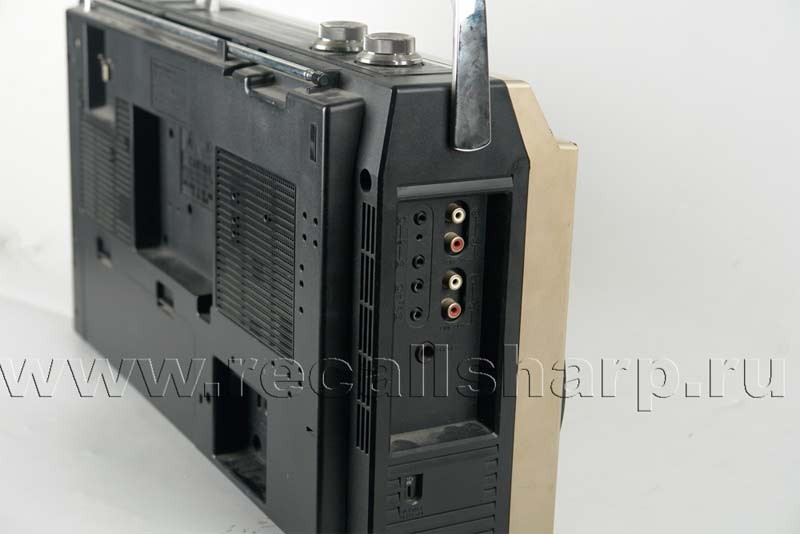

JACKS:


INPUT; MIC; sensitivity 0.26 mV/applicable microphone



impedance 200Ω-600Ω

LINE IN; sensitivity 220 mV/47 kΩover




OUTPUT;


LINE OUT; sensitivity 0.42mV/10 kΩover


EXT SP; 3-8Ω


HEADPHONES;8Ω




DIMENSIONS: 50.4 cm(W)x27.4 cm (H)x14.5 cm(D)



WEIGHT: 4.2 kg(14 lbs13 oz) without batteries


Specifications are subject to change without notice.


:
