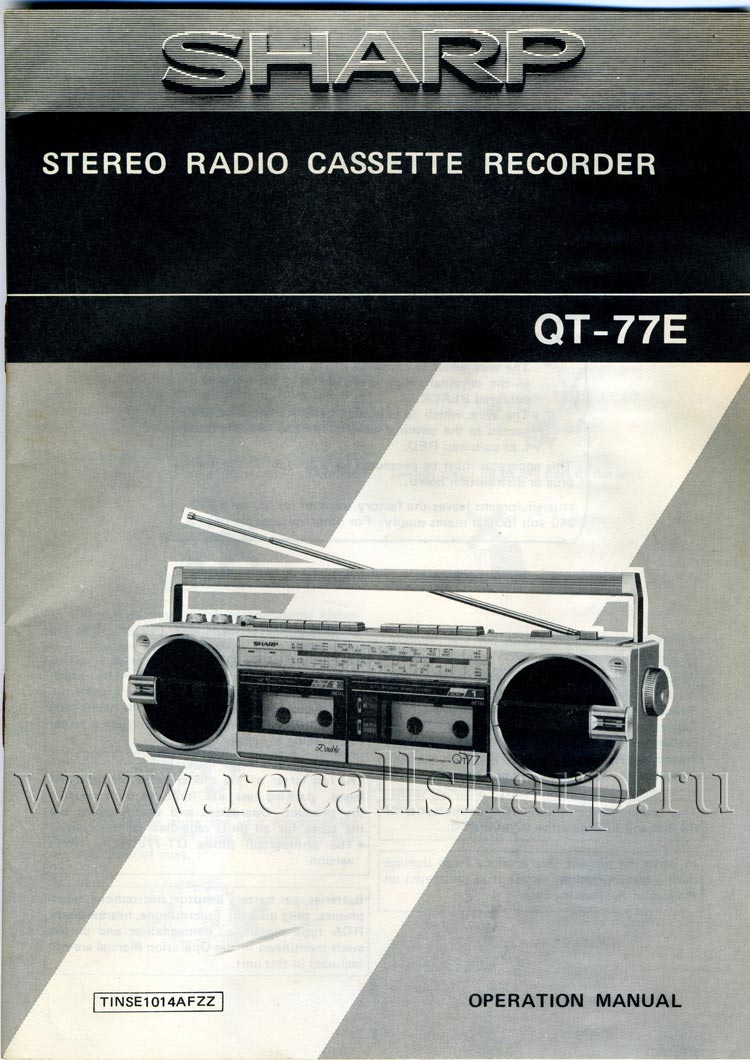

Sharp QT-77 E (R)



: 1983


Power source: AC 110V - 120V and 220V -240V, 50/60Hz
DC 12V (HP-11 or R14 type x 8, or external 12V DC)
Output power: MPO; 13W (6.5W + 6.5W)

(AC operation)
RMS; 7.6W (3.8W + 3.8W)
(DC operation, 10% distortion)
Semiconductors: 11 ICs

15 transistors
47 diodes

4 LEDs
Dimensions:

Width; 474 mm (18-5/8")

Height; 128 mm (5")

Depth; 109 mm (4-5/16")

Weight: 3.4 kg (7.5 lbs.) without batteries

TAPE RECORDER

Tape: Compact cassette tape

Frequency range:
40Hz -14,000Hz (normal tape)

40Hz - 15,000Hz (Cr02tape)

40Hz - 16,000Hz (metal tape)

Signal/noise ratio: 55 dB (Deck 1, playback)

50 dB (Deck 2, normal tape recording)

Input impedance: Mixing; 600 ohms
Line in; 20 k ohms
Loaded impedance: Headphones; 32 ohms or greater

RADIO

Frequency range: FM; 87.6 MHz - 108 MHz

SW; 5.95 MHz - 18.0 MHz

MW; 520 kHz- 1,620 kHz

LW; 150 kHz -285 kHz

SPEAKER Speakers: 10 cm (4") woofer x 2

Ceramic type tweeter x 2

Impedance: 4 ohms


:
Sharp QT-77 H
Sharp QT-77 Z (R)
Sharp QT-77 Z(BL)
Sharp QT-77 BK
Sharp QT-77 Z W
Sharp QT-77 CW
