PIONEER Nozomu Matsumoto 1937 -8

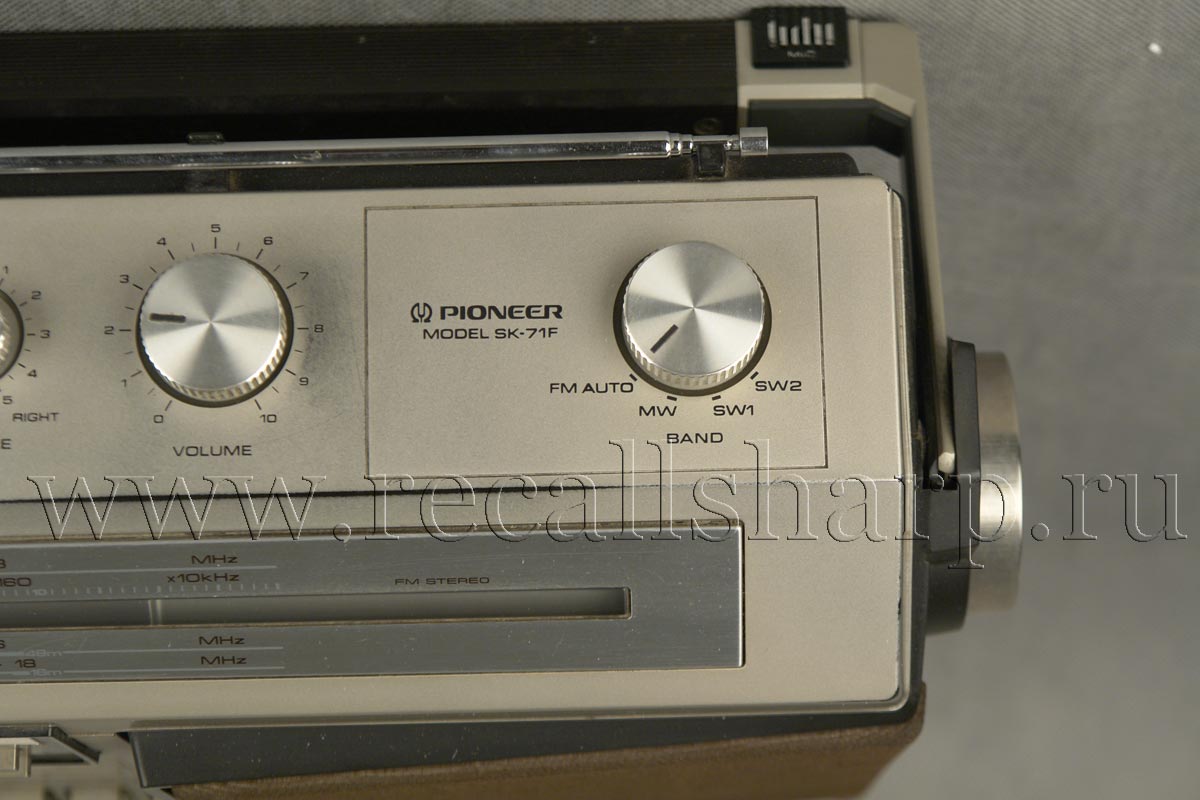

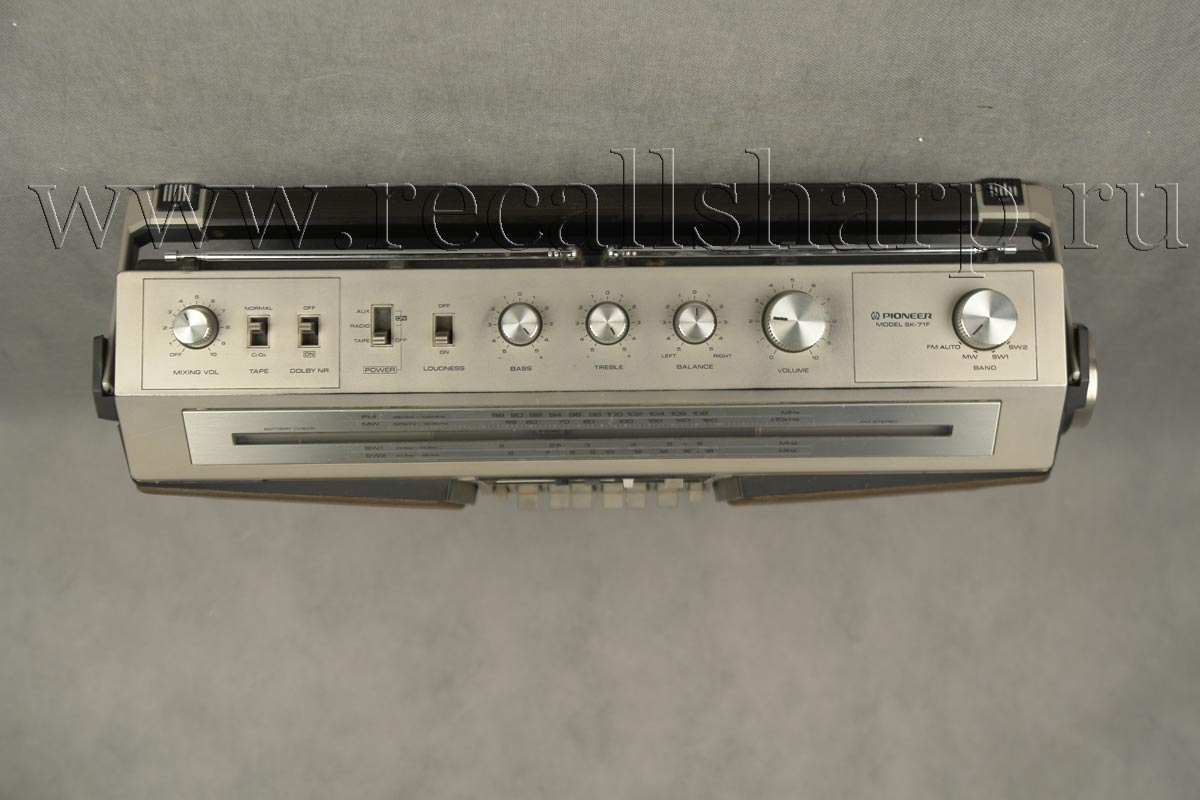

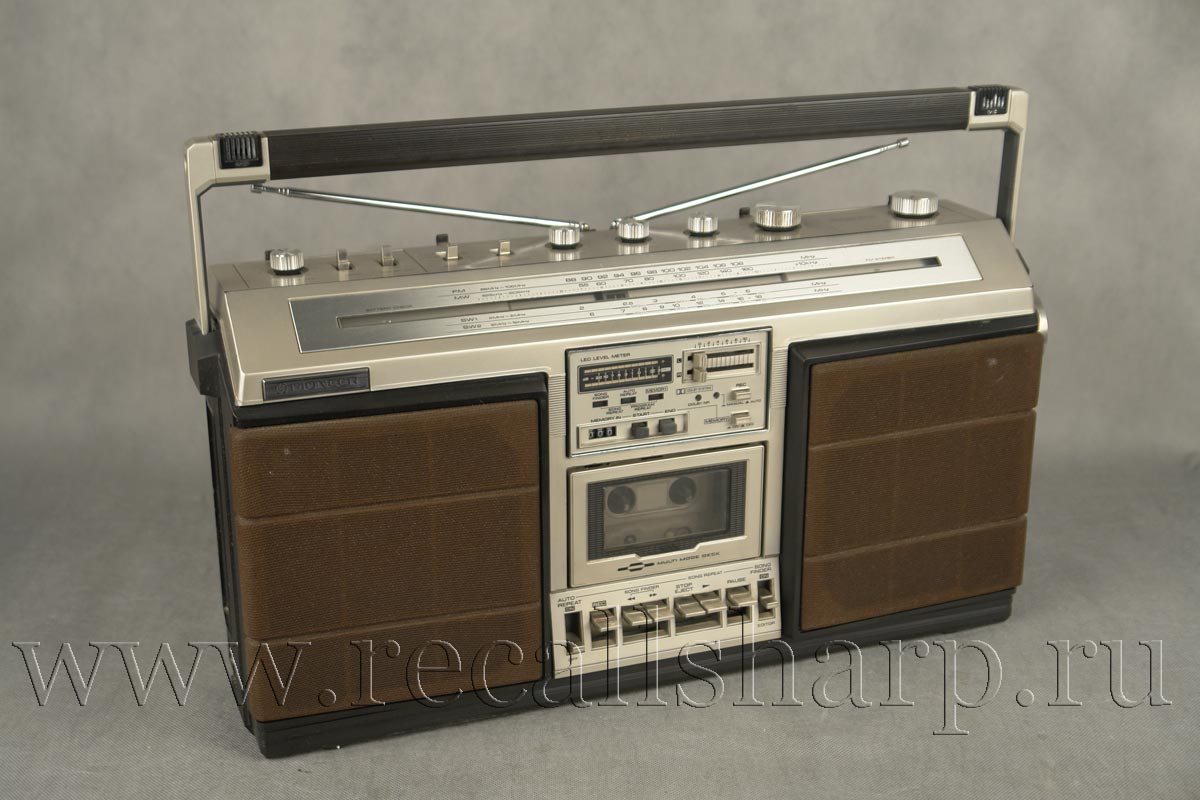

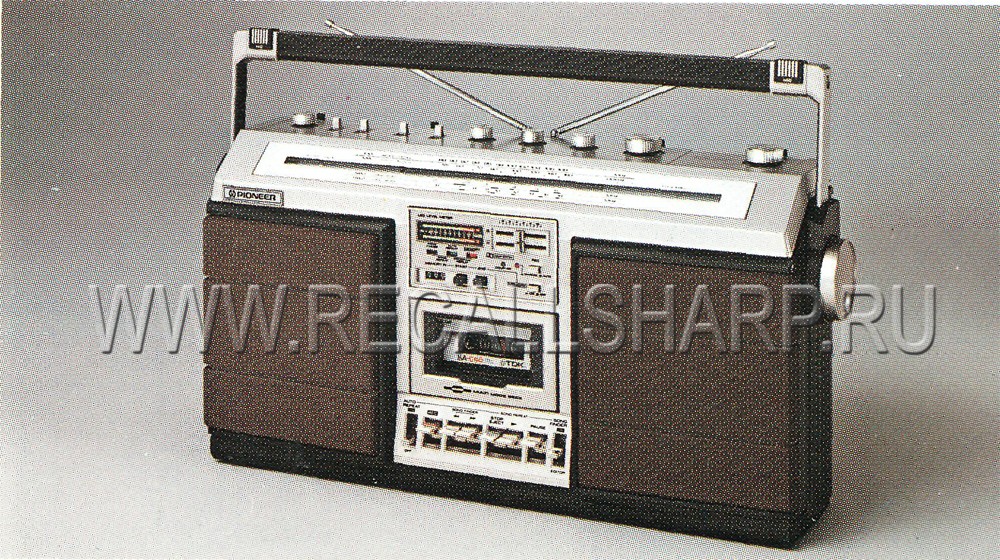

Pioneer SK-71 F



: 1980


SPECIFICATIONS
Max music power..................................30W (total music power)
Speaker.......................................................16cm Woofer, 4.2cmTweeter,
(2 way system)
Wow and flutter......................................0.08% (WRMS)
With anti-rolling system
Frequency response...............................50
~13,000 Hz (Chrome)

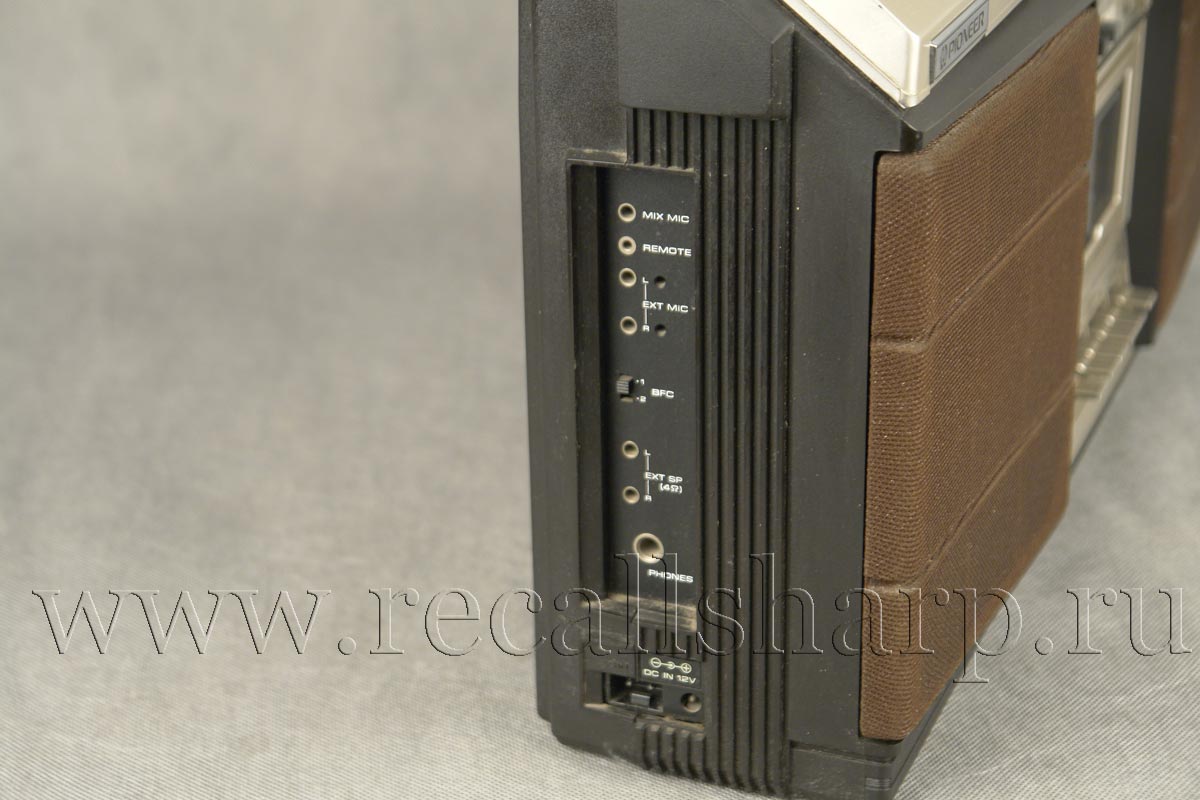

Input..............................................................AUX L/R. EXT MIC L/R (with terminal for
remote control use),
MIX MIC (with terminal for remote control use),
EXT FM ANT
Output..........................................................LINE OUT L/R, EXT SP L/R, headphone

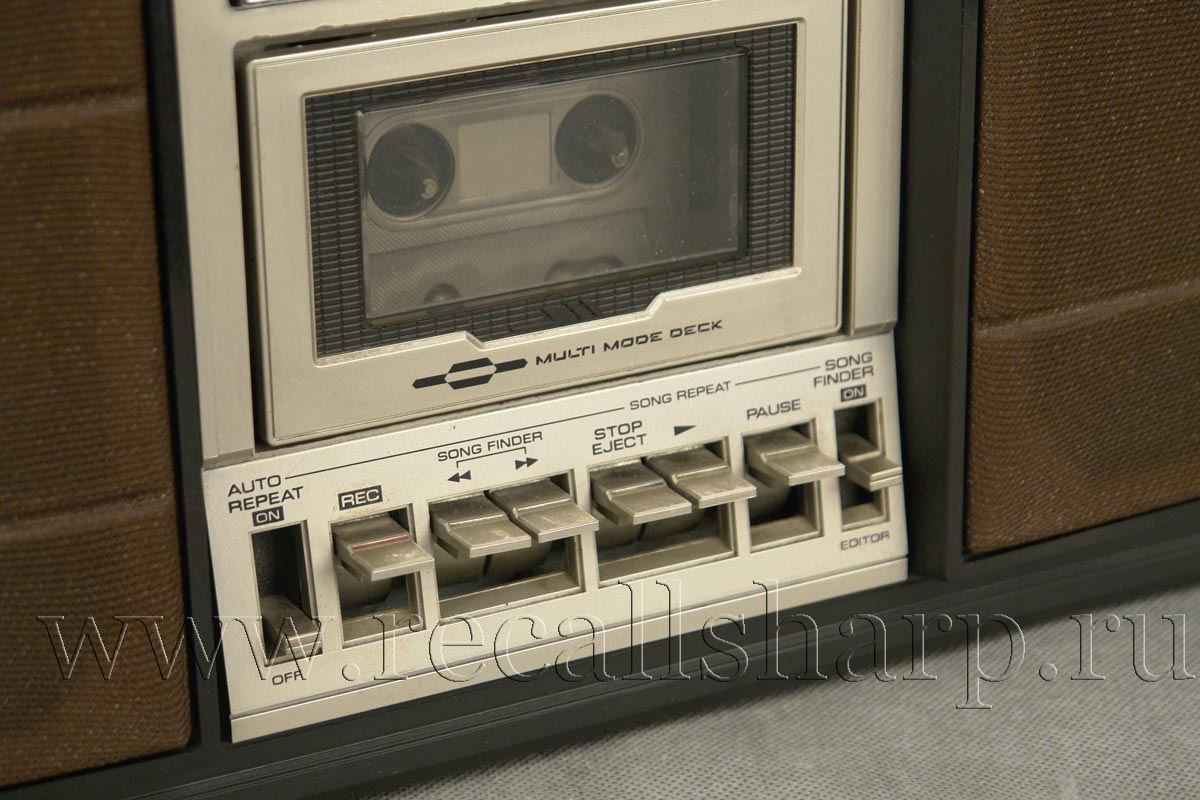

Subfunction...............................................One side repeat, song repeat, programmable
repeat, tape counter memory,
song finder, editor, one touch recording,
Dolby noise reduction, manual recording level control,

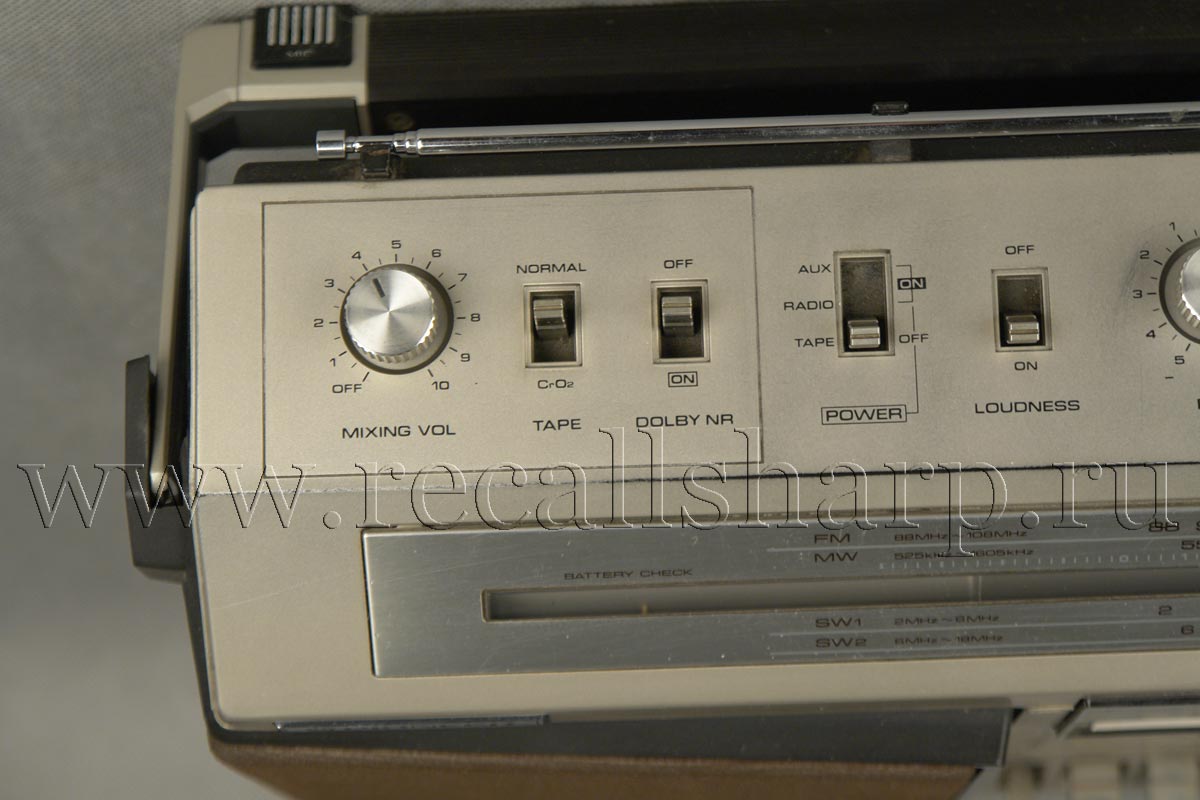

tape selector (Normal/Cr02), loudness switch

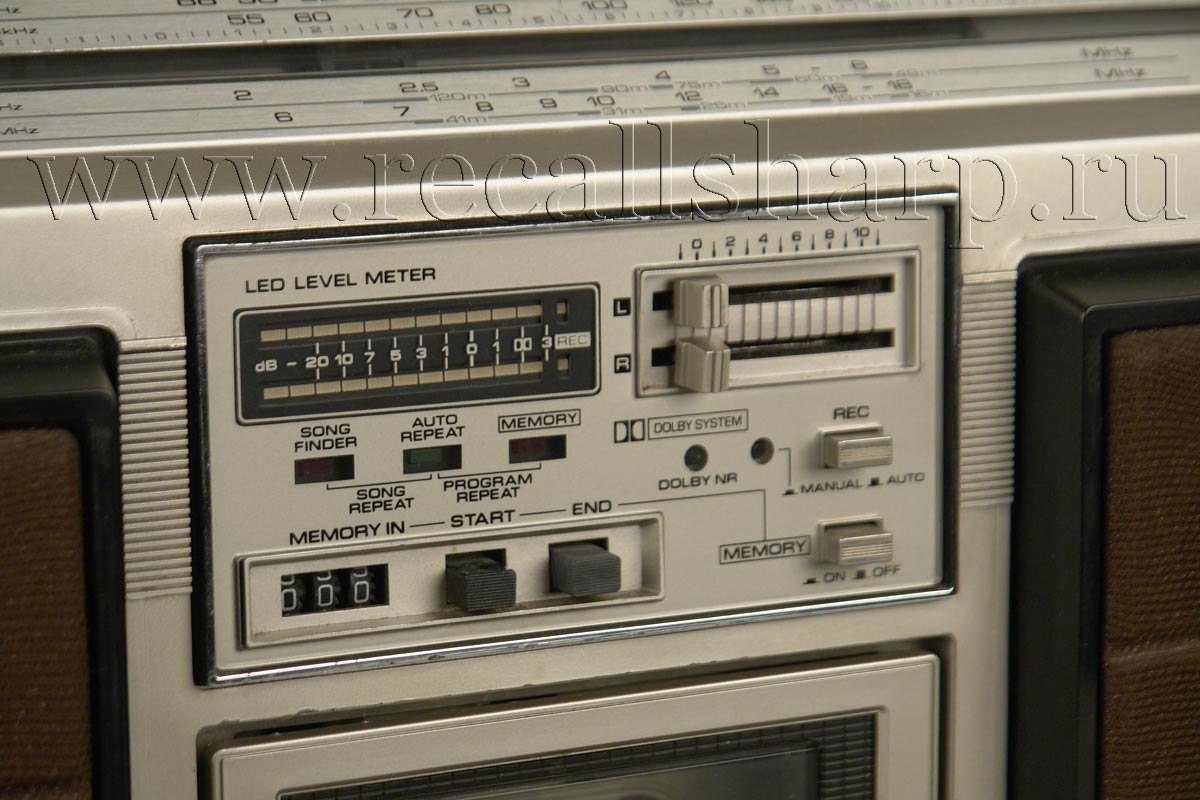

Indicator......................................................REC (Red LEDx2), auto repeat (Green LED),
memory (Red LED), song finder (Red LED),
manual REC (Red LED). Dolby NR (Green LED),
FM stereo (Red LED), battery check (Red LED),

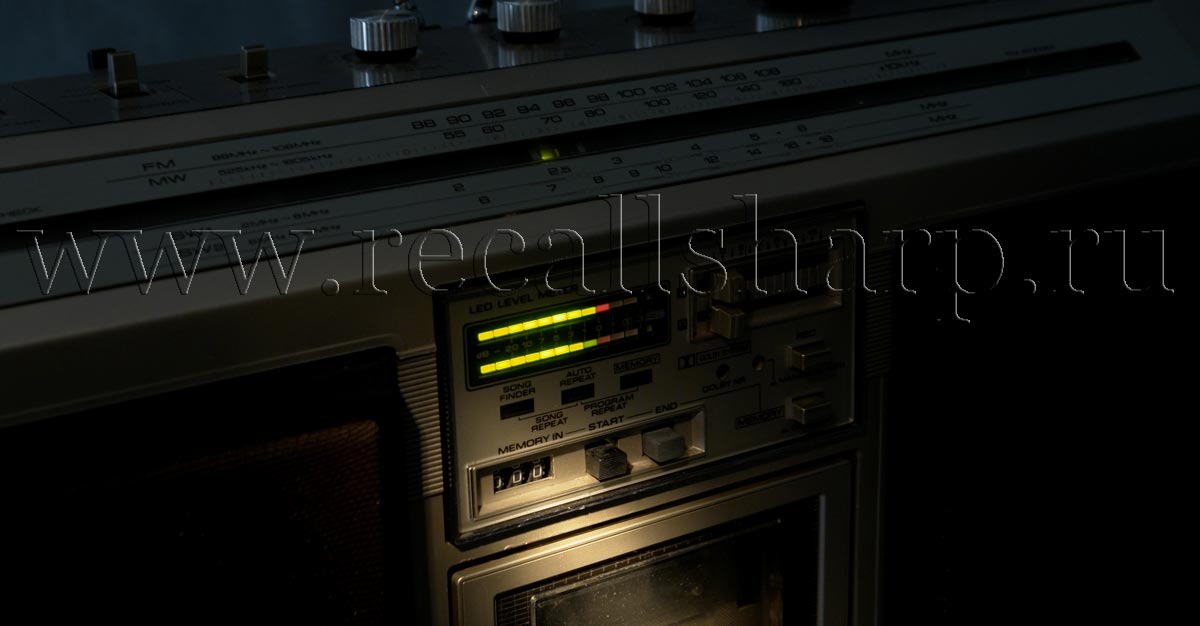

level meter (2 series 1 1 point Red and Green LED),
access tuning (Red LED, Green LEDx2)
Frequency range......................................FM : 88 ~ 108MHz
MW : 525
~ 1,605 kHz
SW 1: 2 ~ 6 MHz
SW 2:6
~18MHz
Power source............................................120/220V AC 50/60Hz. 13.5V DC (Nine
1.5V "D" batteries), EXT 12V DC
Power consumption...............................1 9W
Dimensions
(W x H x D)..........................................530 x 280 x 1 35 mm
(207/8x 1 1 x 53/8in.)
Weight.........................................................6.8 kg (15 lbs) without batteries
Note:
Specifications and the design subject to possible modification without notice due to improvements.



:
