Год начала выпуска: 1985
Регион: Европа
SPECIFICATIONS
Radio section Frequency ranges :
FM (UKW) 88-108 MHz (PC-W330LS)
65- 73 MHz (PC-W330LE)
MW 540-1600 kHz
LW 150-350 kHz
SW(KW) 6-18MHz
Antennas : Telescopic antenna for FM&SW
Ferrite core antenna for AM & SW1
Ext. antenna terminal (75 Om
Tape recorder section
Track system : 4-track 2-channel stereo
Motors : Electronic governor DC
motor for capstan/reel x 2 (for Deck A & B) Heads : Deck A; METAPERM
head for playback Deck B; METAPERM head for recording/ playback, 2-gap ferrite head for erasure Tape speed : At normal speed;
4.8 cm/sec (1-7/8 inch/sec) At double speed; 9.5 cm/sec (3-3/4 inch/sec)
Frequency response :
30 -17,000 Hz (with metal tape )
30- 16,000 Hz (with chrome tape)
30- 15,000 Hz (with normal tape)
Signal-to-noise ratio :
50 dB (weighted, at 1 kHz
with metal tape during ALC recording)
Improved by 5 dB at 1 kHz and by 10 dB at 5 kHz or more with ANRS/DOLBY B NR ON Wow and flutter : 0.09 % (WRMS) Fast wind time : Approx. 110 sec.
(C-60 cassette)

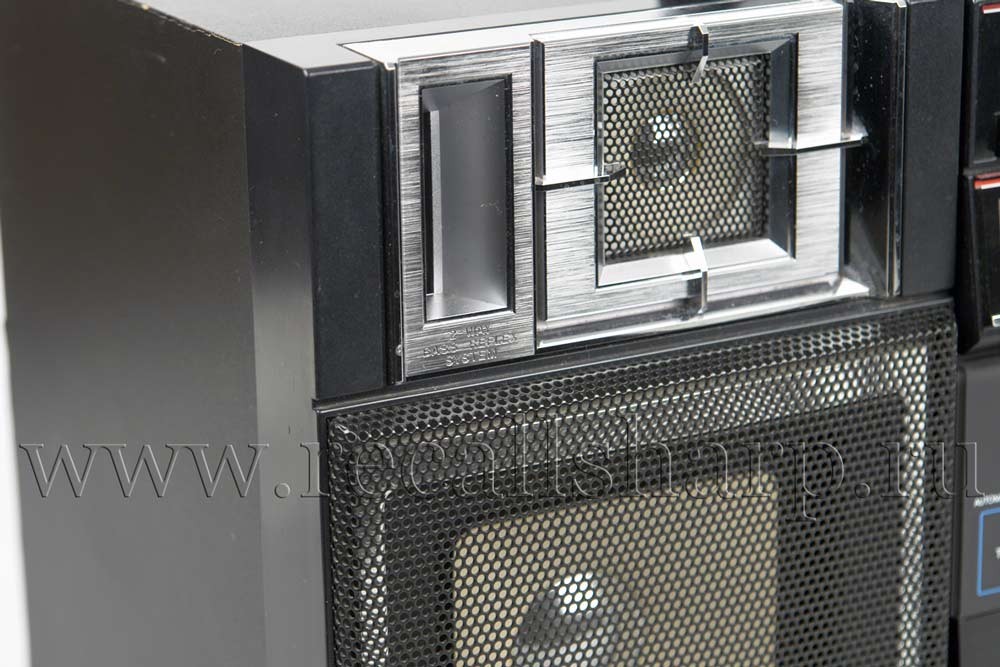

Speaker section (each unit)
Speakers :
12 cm (5") square woofer x 1,
5 cm (2") tweeter x 1
Impedance : 6 Om
Dimensions :
162(W) x 237(H) x 216(D)
mm (6-1/2" x 9-3/8" x 8-5/8")
Weight : Approx. 2.0 kg
General S.E.A characteristics
Center frequencies : 100 Hz/330 Hz/1 kHz/ 3.3 kHz/10 kHz
Control range :±10 dB
Input terminals : MIC x 1 (Min. input level: 0.7 mV(-63dBV) Matching impedance:
AUX INx2 (300 mV/ 47kOm)
Output jacks : LINE OUT x -2 (300 mV/4.7 kOm),
SPEAKER x2 (matching impedance 6 —
PHONES x 1 (Output level: 0~ 5 mW/8 Om. Matching impedance: 8 Om — 1 kOm)
Power output : 9 watts per channel, min.
RMS, at 6 ohms from 70 Hz to 15 kHz, with no more than 10 % total harmonic distortion (PC-W330JW) Max. 30 W (15W + 15W) (6 Om, AC) (PC-W330C)
Power sources : AC 240/220/120 V,
50/60 Hz (PC-W330JW), AC 120 V, 50/60 Hz (PC-W330C), DC12V ("D"x8or optional BP-12K), Ext. DC (car battery via optional CN-332J car adapter)
Power consumption : 65 watts (with power switch on)
0.7 watt (with power switch off)
Dimensions : 663(W)x312(H)x224(D)mm
(23-1/2"x10-3/8"x7-5/8") including speakers connected with joint fixtures, pads, knobs and handle
Weight . : Approx. 10.9 kg (24.0 lbs)
with batteries Approx. 10.1 kg (22.2 lbs) without batteries
Accessories provided: 2 speaker cords (1 m/
3.28 ft)
Carrying handle AC power cord
Design and specifications are subject to change without notice.
