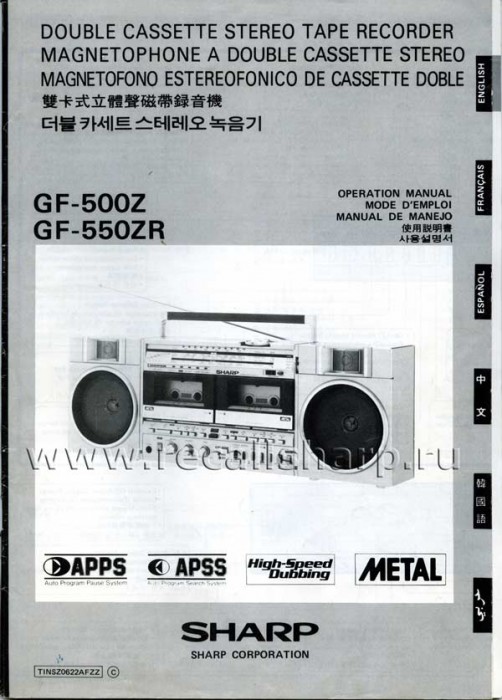

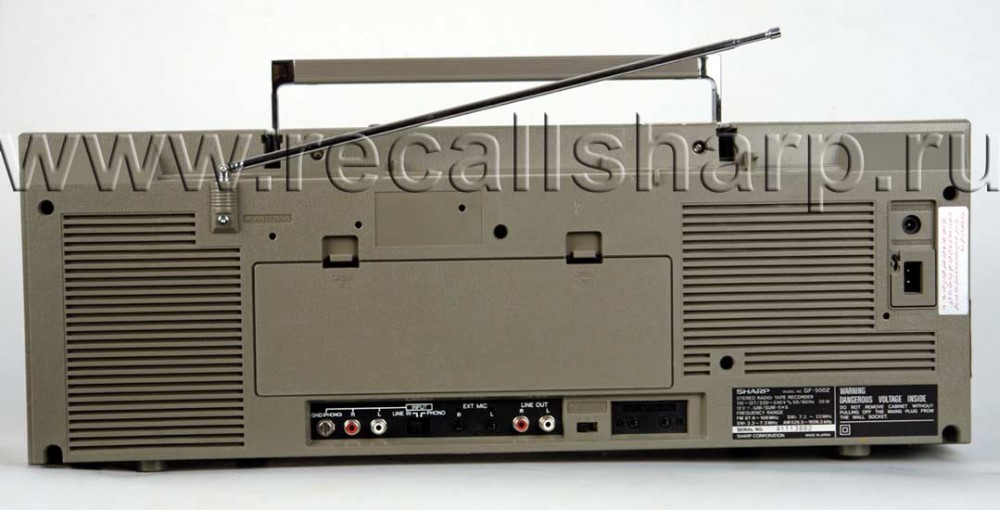

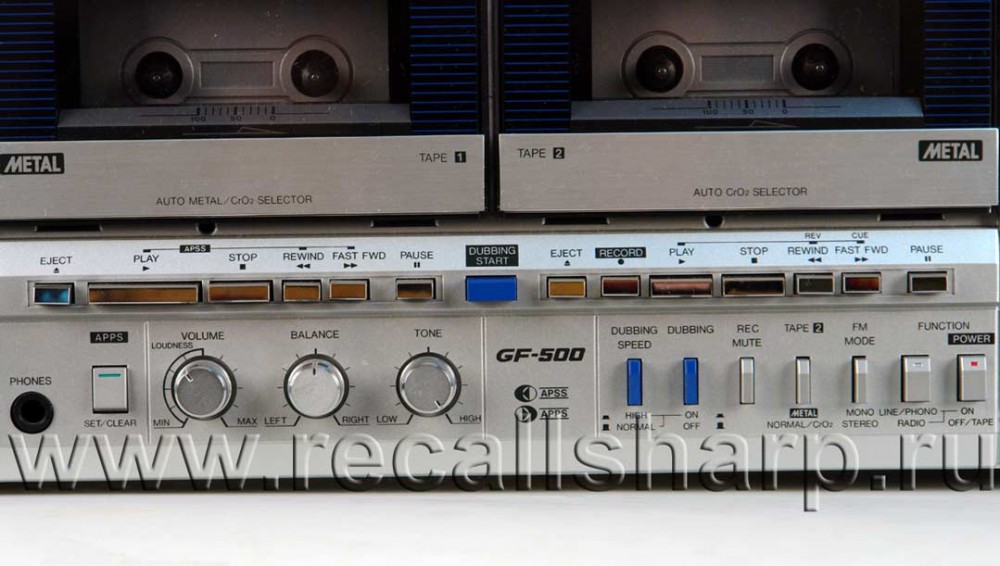

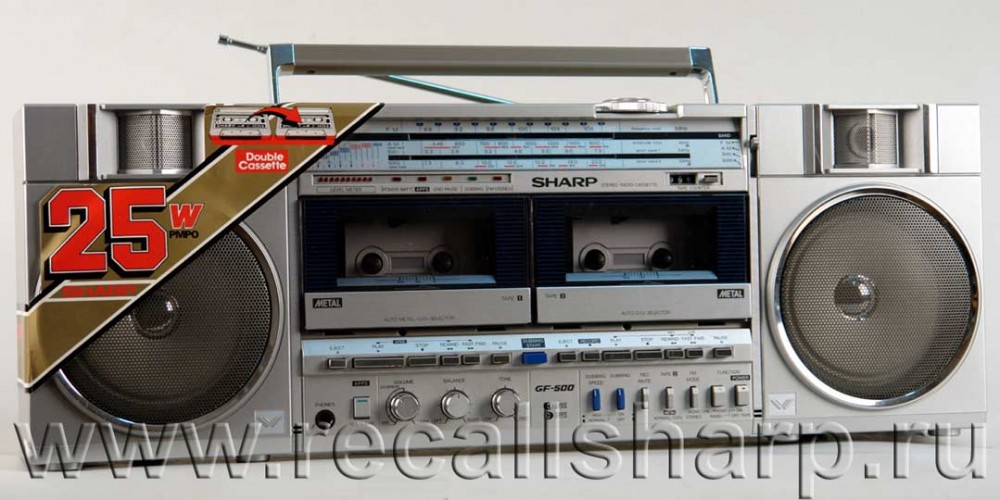

Sharp GF-500 Z



: 1982


SPECIFICATIONS

Power source: AC 110V-127V and 220V~240V,

50/60Hz

DC 12V (UM/SUM-1, R-20, HP-2 or D

type x 8 or external 12V DC)

Speakers: 12 cm woofer x 2

Horn type tweeter x 2

Output power: PMPO; 25W (12.5W + 12.5W) (ACoperation)

MPO; 20W (10W + 10W) (AC operation)

RMS; 10W (5W + 5W) (DC operation,10% distortion)

Semiconductors: 15 ICs

22 transistors

57 diodes

10LEDs

Dimensions: Width; 582 mm (22-7/8")

Depth; 125 mm (4-15/16")

Height; 202 mm (7-15/16")

Weight: 5.1 kg (11.3 lbs) without batteriesTAPE RECORDER

Tape: Compact cassette tape

Frequency response:

40 Hz —16,000 Hz (metal tape)

Signal/noise ratio: 55 dB (Deck 1, playback)

50 dB (Deck 2, normal tape recording)

Wow and flutter: 0.06% (WRMS)

Input impedance: External mic; 600 ohms

Phono/Line in;50 k ohms/20 k ohms

Output level and

impedance: Headphones; 8 ohms - 32 ohms

External speakers; 3 ohms 8 ohms

Line out; 0.55V/50 k ohms

RADIO

Frequency range: AM; 526.5 kHz - 1,606.5 kHz

SW1 ; 2.3 MHz - 7.3 MHz

SW2; 7.3 MHz-22 MHz

FM; 87.6 MHz - 108 MHz

:

:
