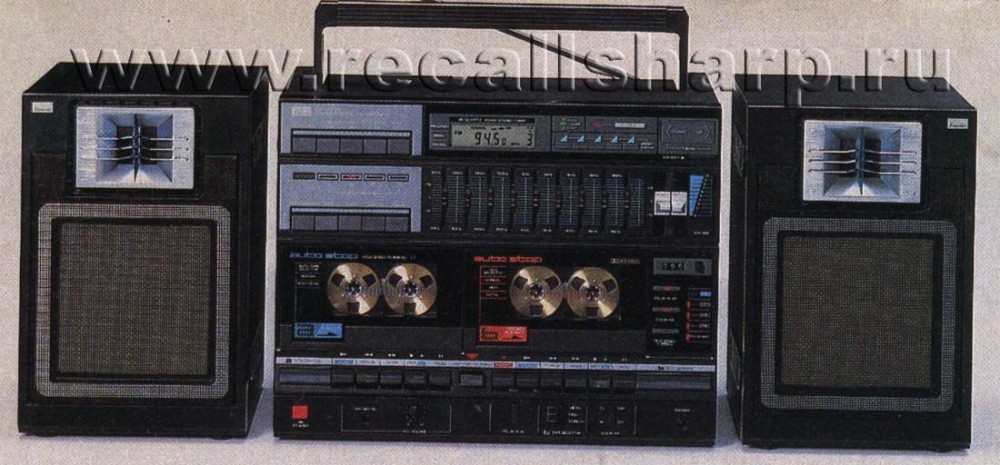

CP-77W
Audio section
Power output Min RMS both channels driven from 90-15000Hz with no more than 10%
total harmonics distortions 2 x 15 Watts 8 ohm
Frequency response (at 1 watt) 50Hz-15kHz + 1dB, - 3dB
Equalizer Frequency 65Hz, 125Hz, 250Hz, 500Hz,
1kHz, 2kHz, 4kHz,8kHz,16kHz
Level variation range + 12dB
FM section
Tuning range 88- 108MHz
MW section
Tuning range 530- 1600kHz
SW1 section
Tuning range 3.2-7.3 MHz
SW2 section
Tuning range 9.5-21,75 MHz
Signal to noise ratio: Phono: 60dB
(short circuit A-network) AUX: 64dB
Tape section
Track format 4 Track /2 channel system
Frequency response (-20VU recording/playback)
Metal tape: 60-15,000 Hz
Wow and flutter 0.1% (WRMS)
Signal to noise ratio (recording/playback with metal tape)
DOLBY NR on Better than 60dB(above 5 kHz)
LOUDSPEAKERS CP-S77
Speakers 2-way 2 speaker type
Woofer 120 mm Cone type
Tweeter 50 mm Cone type
Impedance 8 Ohms
Max Input Power 20W
Frequency response 150Hz-17000Hz(in normal listening room)
Power sources: 110/240 V, 50/60 Hz 93w or batteries
For USA& Canada 120V(60Hz)
Power consumption: 93w
WxHxD: 670 x 270 x 196 mm.
Nett Weight: 9.5 kg
