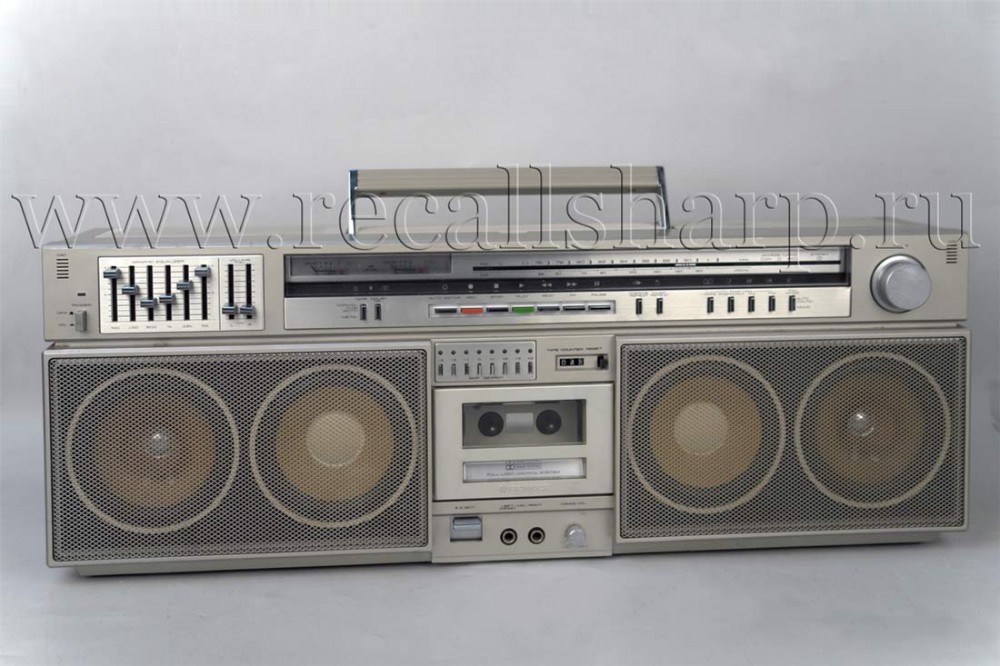

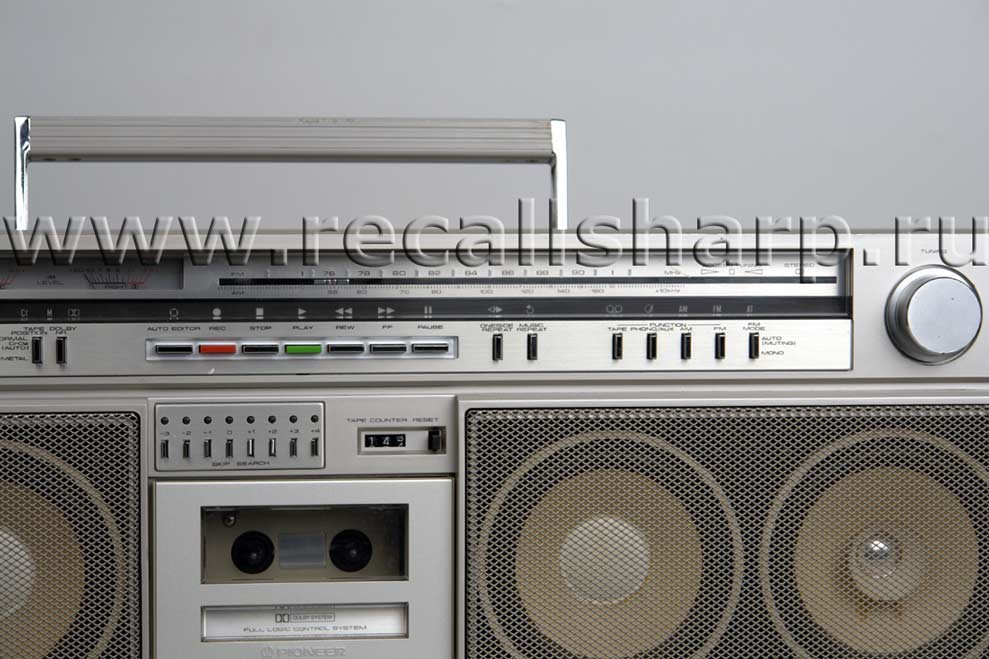

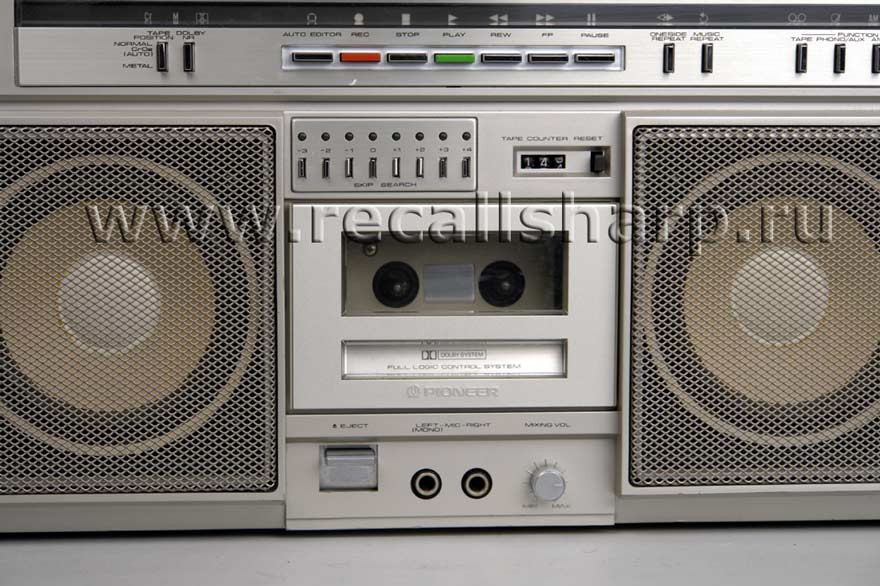

Pioneer SK-900



: 1981


Specifications

Continuous power output...….....8W+8W/FTC(8Ω,60-15,000 5% THD)
Max. music power.....................40W (total music power)
Speaker ................................. Air-tight cabinet, 12cm (5 in.)
mechanical 2 way system with passive
radiator
Recording/playback frequency
characteristics...........................50~14,000Hz (±3dB) (Normal tape)
50~15,000Hz (3dB) (Cr02 tape)
50~16,000Hz (3dB) (Metal tape)
Recording/playback S/N ratio......59dB (Dolby NR on, Normal tape)
51dB (Dolby NR off, Normal tape)
Input.......................................AUX, PHONO, MIC (also functions as MIX
MIC), EXT. ANT
Output....................................LINE OUT, PHONES
Subfunctions........................... Dolby NR, Tape selector (Metal/Cr02
Normal), Auto/manual recording, Skip
search, Music repeat, One side repeat,
Automatic editor. Timer standby mechanism,

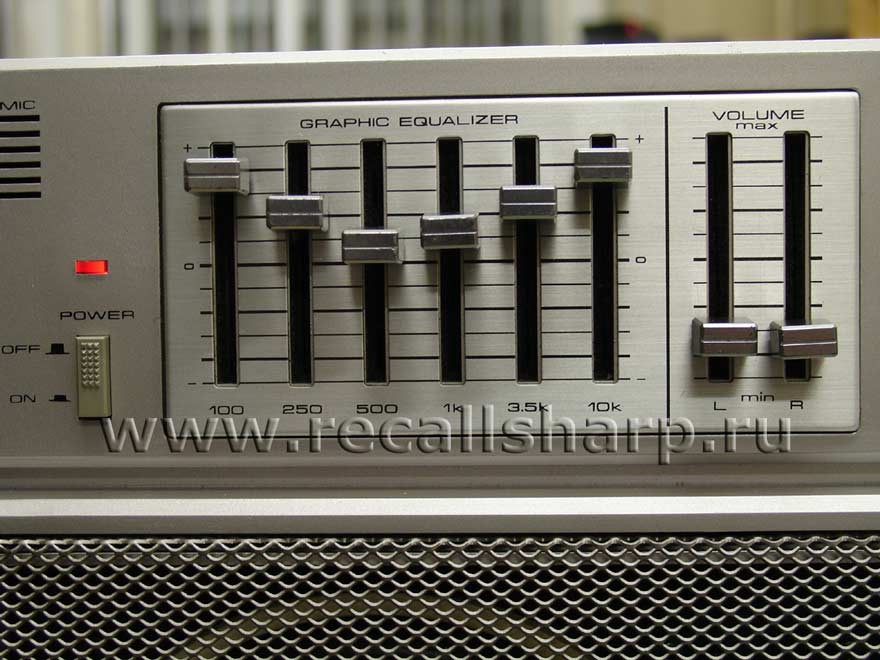

6-band graphic equalizer, FM muting,
Stereo microphone mixing

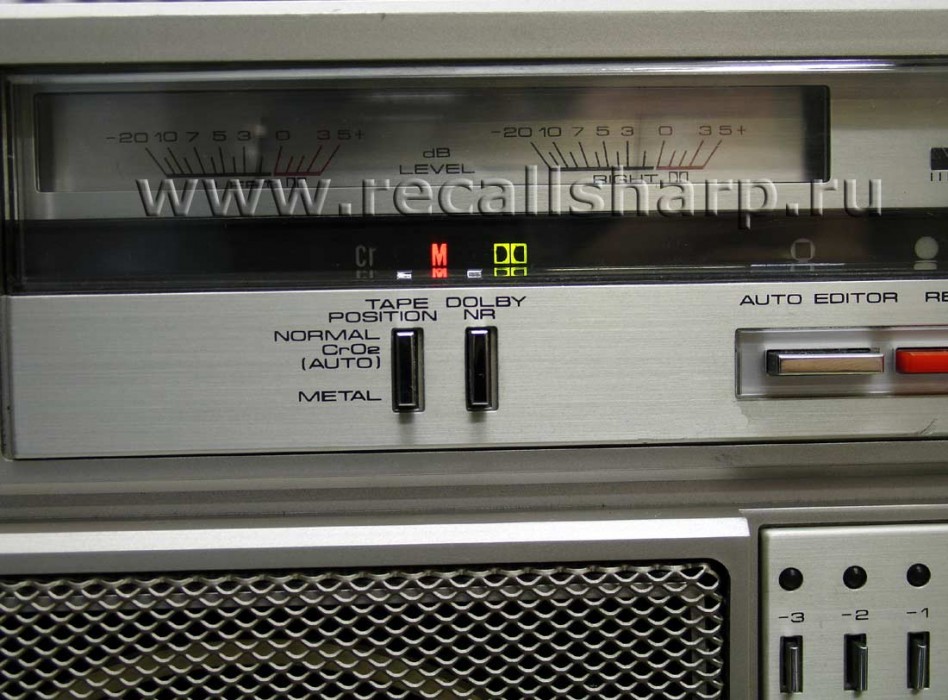

Indicators.................................Red LEDs: Cr02, METAL, AUTO EDITOR,
REC, PHONO/AUX, AM, FM, FM MODE,
STEREO, POWER, SKIP SEARCH (8)
Green LEDs: DOLBY NR, PLAY, REW, FF,
PAUSE, ONE SIDE REPEAT,
MUSIC REPEAT, TAPE
Others: ACCESS TUNING (two red,
one green), LEVEL (stereo meter)
Frequency range........................FM: 76~ 90 MHz

MW: 525~1,605kHz

Power source...........................100V AC, 50/60Hz; 42W
ten size "D"
flashlight batteries (1.5V);
EXT 15V DC (12~15V)
Dimensions (WxHxD)...............655x235x160mm
(25-3/4x9-1/4x6-1/4in.)
Weight....................................9.9kg (21.8 lbs., without batteries)

Note: Specifications and design are subject to change without notice.


:
