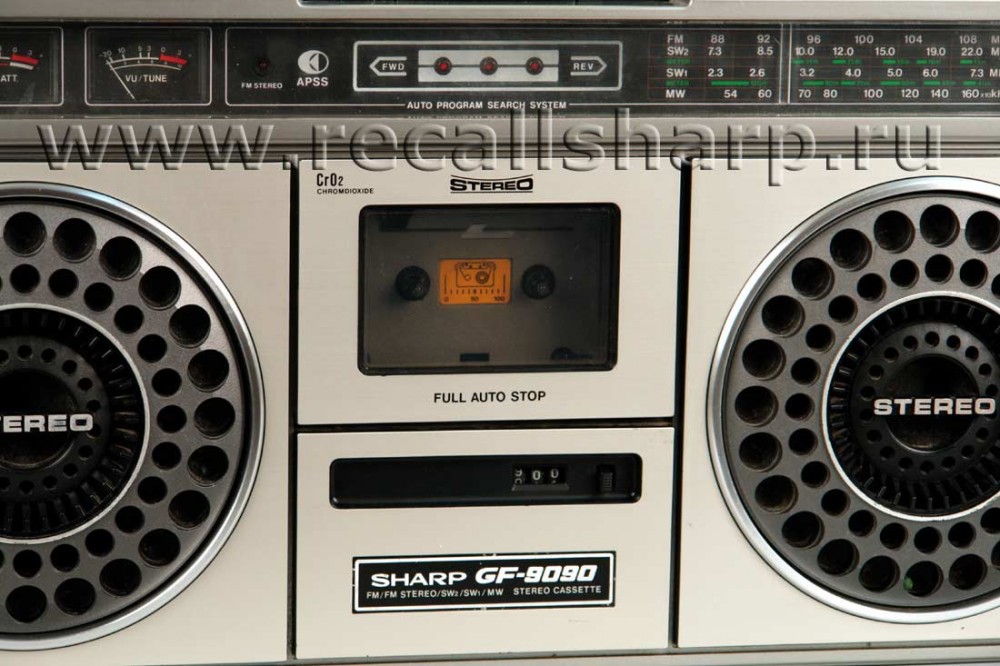

Sharp GF-9090 X



: 1977


SPECIFICATIONS

Power source: a.c. 110/220/240V, 50/60Hz

d.c. 12V (Eight UM/SUM-1,

R20 batteries or external D.C. supply)

Speakers: 16cm (Woofer) x 2

Horn type (Tweeter) x 2

Output power: Dynamic power 11W

(5.5W + 5.5W)

Semiconductors: 5-IC (Integrated circuit)

47-Transistor

33-Diode 4-LED

Dimensions:

Width: 485mm

Depth: 115mm

Height: 240mm

Weight: 5.8kg (Without batteries)

TAPE RECORDER SECTION

Tape: Philips type compact cassette tape

Frequency response: 40 ~ 15000Hz (CrO2 tape)

40 ~ 12000Hz (normal tape)

S/N ratio: 50dB

Wow& flutter: 0.15% WRMS

Input sensitivity and input impedance:

Microphone: 600 ohms

Record/playback socket:

2.5mV/10k ohms

Output level and loaded impedance:

Headphones: 4 to 8 ohms

External speaker: 4 to 8 ohms

Record/playback socket:

1V, 50k ohms

RADIO SECTION

Frequency Range: MW 525 ~ 1605kHz

SW1 2.3 ~ 7.3MHz

SW2 7.3 ~ 22MHz

FM 87.6 ~ 108MHz


:
Sharp GF-202 ST
Sharp GF-9090 HB
Sharp GF-9090 HA
Sharp GF-9090
