Pioneer MX-80
В мою коллекцию    Сравнить


Год начала выпуска: 1981
Регион: Азия

Amplifier Section
Continuous   Average   Power   Output is  25 watts* per channel, min., at 8 ohms from 40
Hertz to 20,000 Hertz with no more than 0.5% total harmonic distortion.
Total  Harmonic Distortion   (40 Hertz to  20,000hertz, 8
ohms, from TV/AUX)
Continuous rated power output...  No more than 0.5%
Intermodulation   Distortion   (50Hertz:   7,000Hertz  4:1,
8 ohms, from TV/AUX)
Continuous rated power output...   No more than 0.5%
Damping Factor (1 kHz, 8 ohms)...............   30
Input (Sensitivity/Impedance)
PHONO   ...................2.5mV/50kilohms
MIC......................2.5mV/50kilohms
TV/AUX...................150mV/50kilohms
Output
SPEAKERS
Frequency Response
PHONO (RIAA Equalization)
.....................30Hz to 15,000Hz+1dB
TV/AUX...............15Hz to 60,000Hz(+0-3)dB
Tone Control
LOW BOOST   ..................+7dB (100Hz)
HIGH  BOOST..................+7dB (10kHz)
Hum and Noise (IHF, short-circuited, A network)
PHONO   ............................70dB
TV/AUX............................91dB
MIC...............................69dB
FM Tuner Section
Frequency Range.............87.5MHz to 108MHz
50dB
Quieting Sensitivity
Stereo   ...............   38dBf (21.9μV 75 ohms)
Signal-to-Noise Ratio (at 65dBf)
Mono..............................74dB
Stereo   .............................68dB
Distortion (at 65dBf)
Mono (1kHz).........................0.5%
Stereo (1kHz)   ........................0.5%
Capture Ratio   .........................   1.0dB
Alternate Channel Selectivity (400kHz)   .........60dB
Stereo Separation (1kHz)...................40dB
Frequency Response.........40Hz to 16,000Hz±1dB
Spurious Response Ratio...................70dB
Image Response Ratio.....................50dB
IF Response Ratio   .......................80dB
AM Suppression Ratio.....................50dB
Antenna Input . . 300 ohms balanced, 75 ohms unbalanced
AM Tuner Section
Frequency Range . . . .525 kHz to 1,602kHz ( 9kHz step)
                                     520kHz to 1,610kHz (10kHz step)
Sensitivity
IHF, ferrite antenna   .................300μV/m
IHF, external antenna..................   30μV
Selectivity.............................20dB
Signal-to-Noise Ratio......................47dB
Image Response Ratio.....................40dB
IF Response Ratio   .......................40dB
Antenna.................Ferrite loostick antenna
Tape Deck Section
System...........Compact cassette, 2-channel stereo
Motor......................DC servo motor x 1
Heads . . . "Hard Permalloy" Recording/Playback head x 1
                  "Ferrite" Erasing head x 1
Fast Winding Time........   Approximately 90 seconds
(C-60 tape)
Wow and Flutter   .......No more than 0.06% (WRMS)
Frequency Response
Metal tape..................          40Hz to 15,000Hz
Chromium dioxide tape.........40Hz to 14,000Hz
Normal tape   ................       40Hz to 13,000Hz
Signal-to-Noise Ratio
Dolby NR OFF.......................50dB
Dolby NR ON........................58dB
Turntable Section
Drive system........................Belt drive
Motor.........................DC servo motor
Turntable.......300mm diam. aluminum alloy die-cast
Tone arm   ...............220mm straight pipe arm
Cartridge...............   MM (moving magnet) type
Stylus:  PN-110/II
Speeds......................33-1/3 and 45 rpm
Wow and Flutter   .......No more than 0.08% (WRMS)
Miscellaneous
Power Requirements.........   AC 110/120/220/240V
(switchable), 50/60Hz
Power Consumption......................64W
Dimensions......420(W) x 148(H) x 395(D)mm (max.)
                        16-9/16(W)x5-13/16(H) x 15-9/16(D) in
Weight (without package)...........10.5kg (23lb 2oz)
Furnished Parts
FM T-type Antenna   ........................   1
EP Adaptor..............................   1

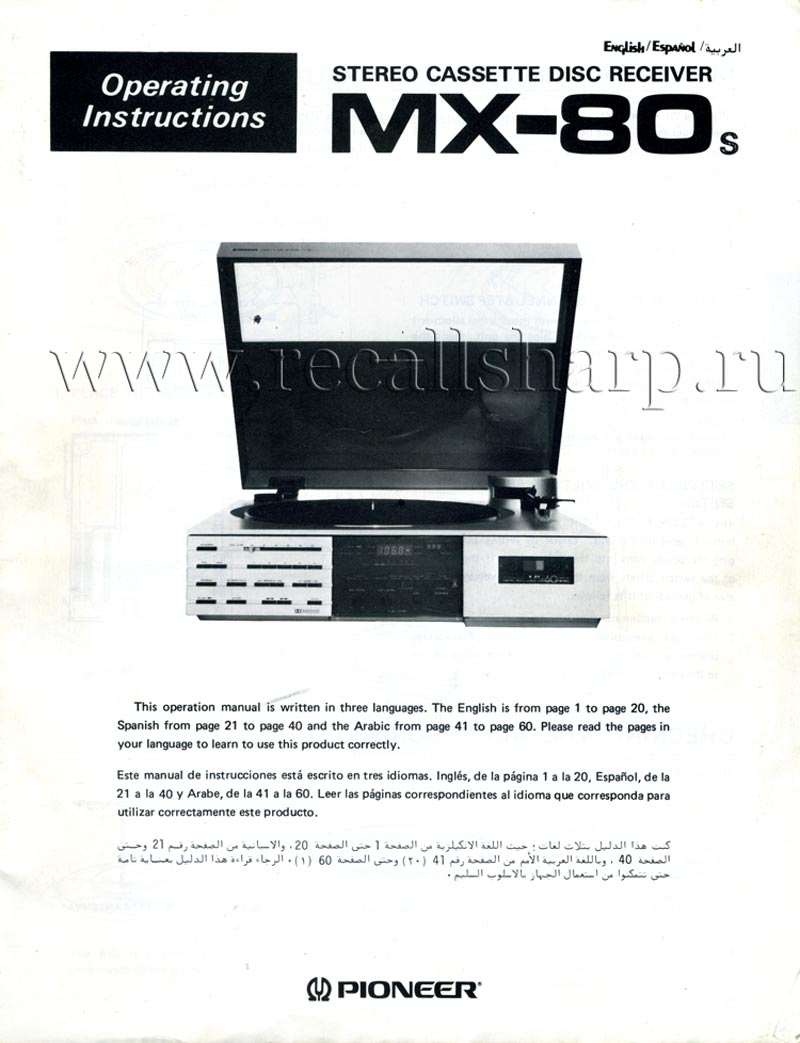

Operating Instructions.......................   1
* Measured pursuant  to  the  Federal  Trade  Commission's   Trade Regulation rule on Power Output Claims for Amplifier.
NOTE:
Specifications and design subject to possible modification without
notice.
