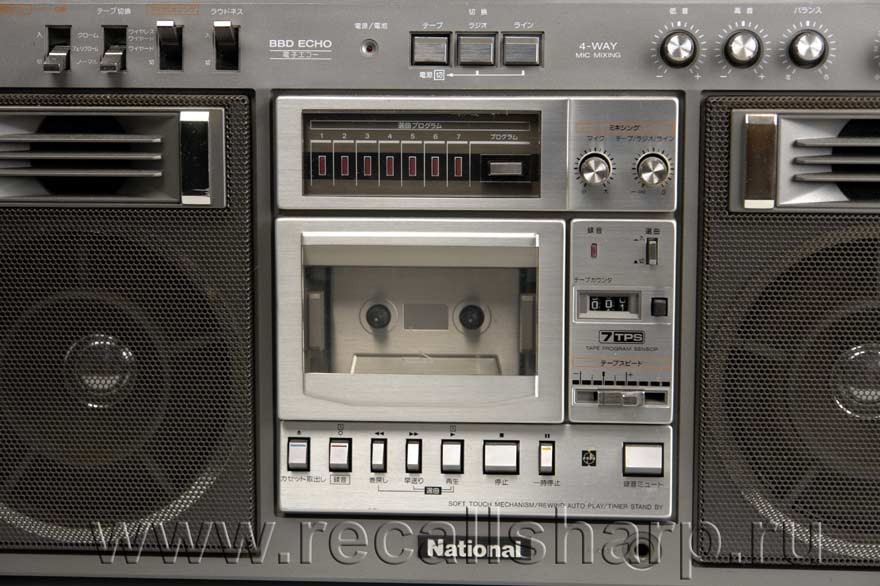

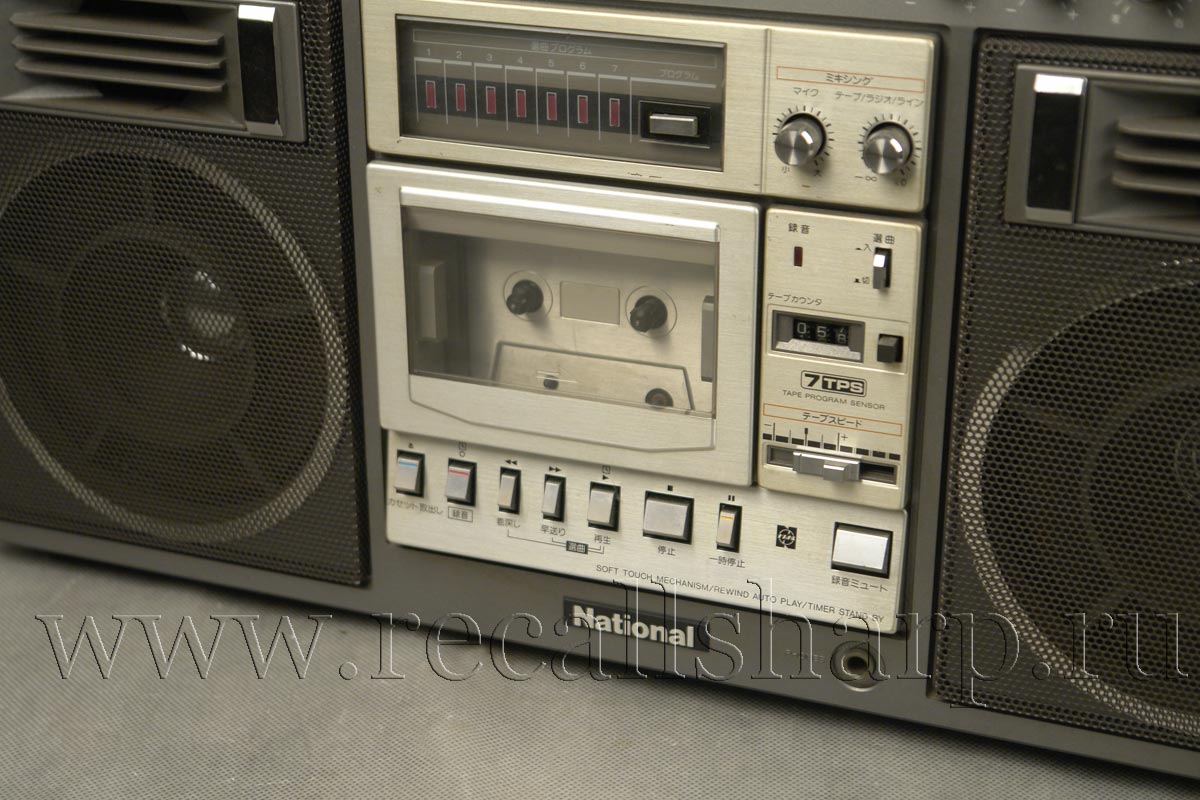

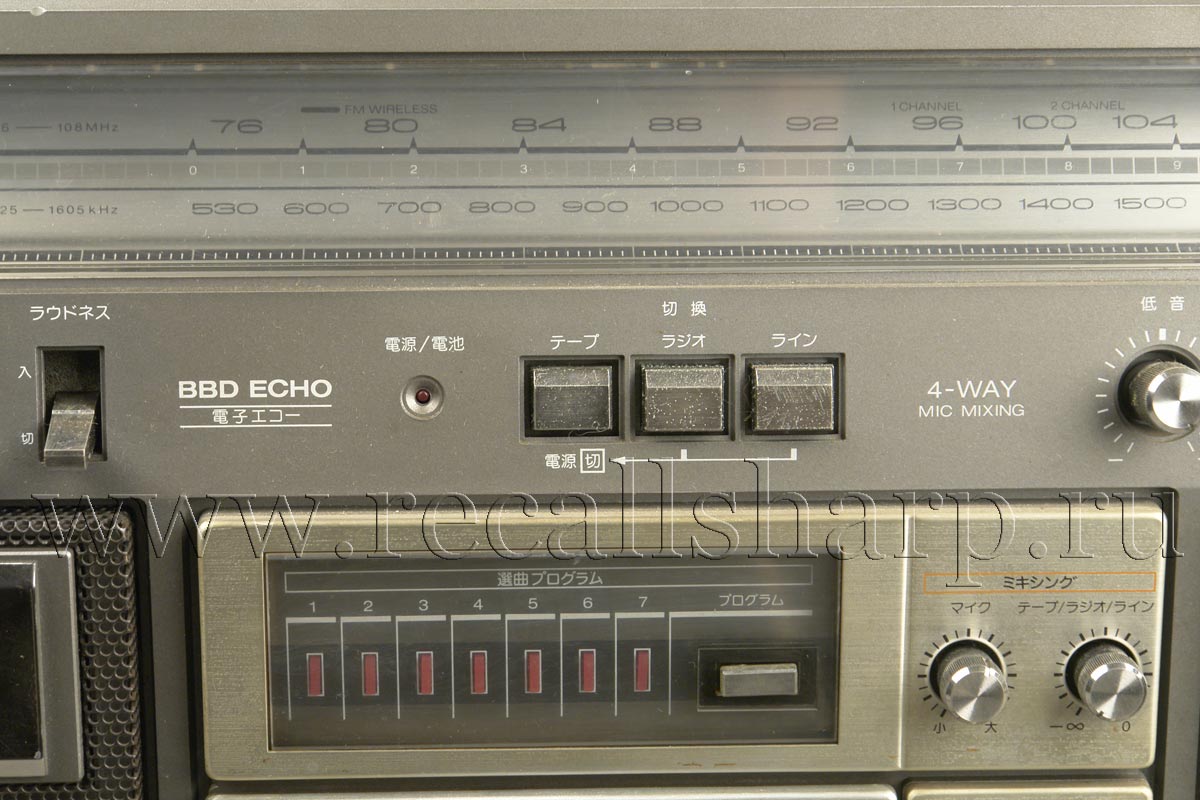

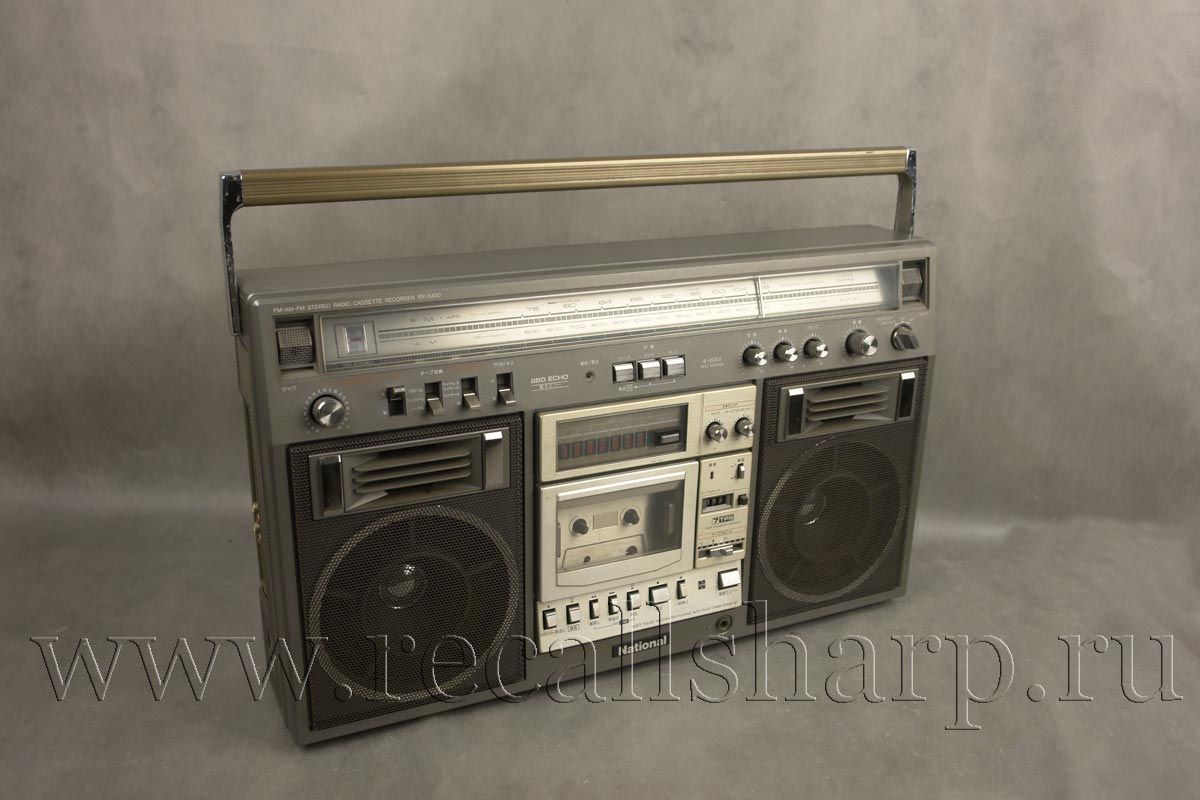

National RX-5400
 ìîþ êîëëåêöèþ    Ñðàâíèòü


Ãîä íà÷àëà âûïóñêà: 1980
Ðåãèîí: ßïîíèÿ

SPECIFICATIONS


RADIO FREQUENCY RANGE:            FM;       76-108MHz
                                                             AM;  525-1605 kHz

Intermediate frequency:                       FM:          10.7 MHz

                                                             AM:          455 kHz


Sensitivity:                                            FM;    1μV/m    50mW (S/N 6db)
                                                             AM; 70
μV /m /   50mW


 POWER REQUIREMENT:                  AC; 100V(90
˜110 V), 50/60Hz
 Power consumption;                          14 W
                                                           Battery; 12 V (8-UM-1, "D" size batteries)
                                                           Car battery; with optional car battery cord RP-957A
POWER OUTPUT:                             10 W (5 Wx2) (EIAJ/DC.)

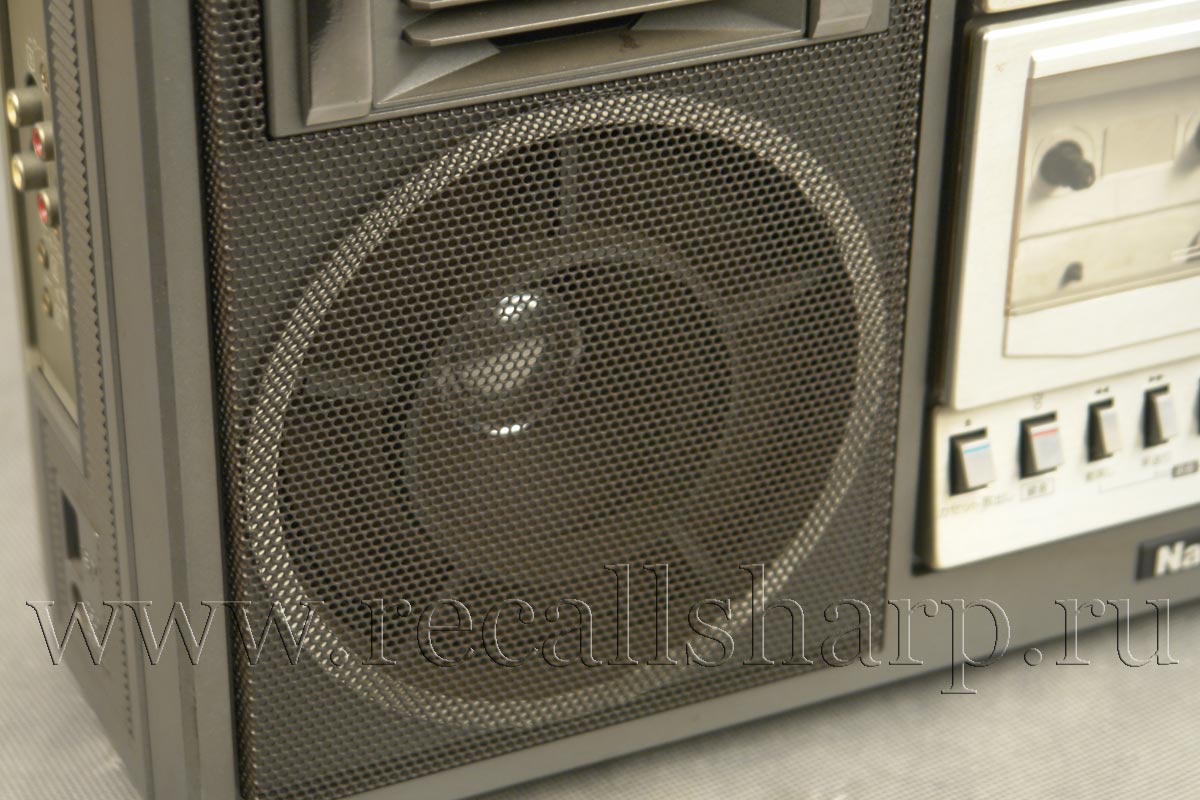

SPEAKERS:                                       Woofer; 16 cmx2 PM dynamic speaker 3
Ω
                                                            Tweeter; 5 cm PM dynamic speaker 4
Ω
FREQUENCY RANGE:                     40-12,000 Hz (with normal tape)
                                                          40-14,000 Hz (with FeCr tape)
                                                          40-14,000 Hz (with tape corresponding to CrO2 type)
Wow & Flutter:                                  0,055%(WRMS)

RECORDING SYSTEM:                     AC bias, AC erase
TAPE SPEED:                                    4.8cm/s.
PROGRAM TIME:                               1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME:                               Approx. 90 seconds With C-60 cassette tape
TRACK SYSTEM:                               4-track 2-channel stereo recording and playback

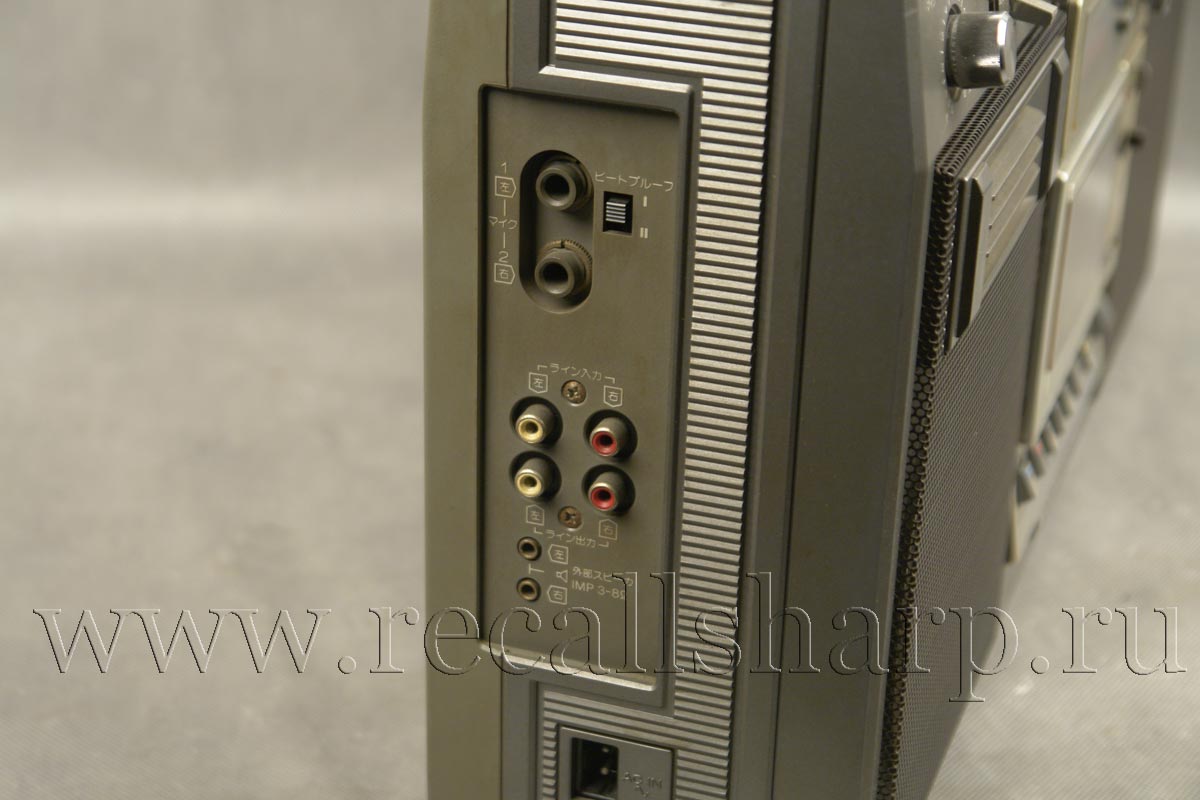

JACKS:
INPUT;                                            MIC; sensitivity 0.25 mV/applicable microphone impedance
                                                      200Ω
-600Ω (recommended microphone RP-8135)

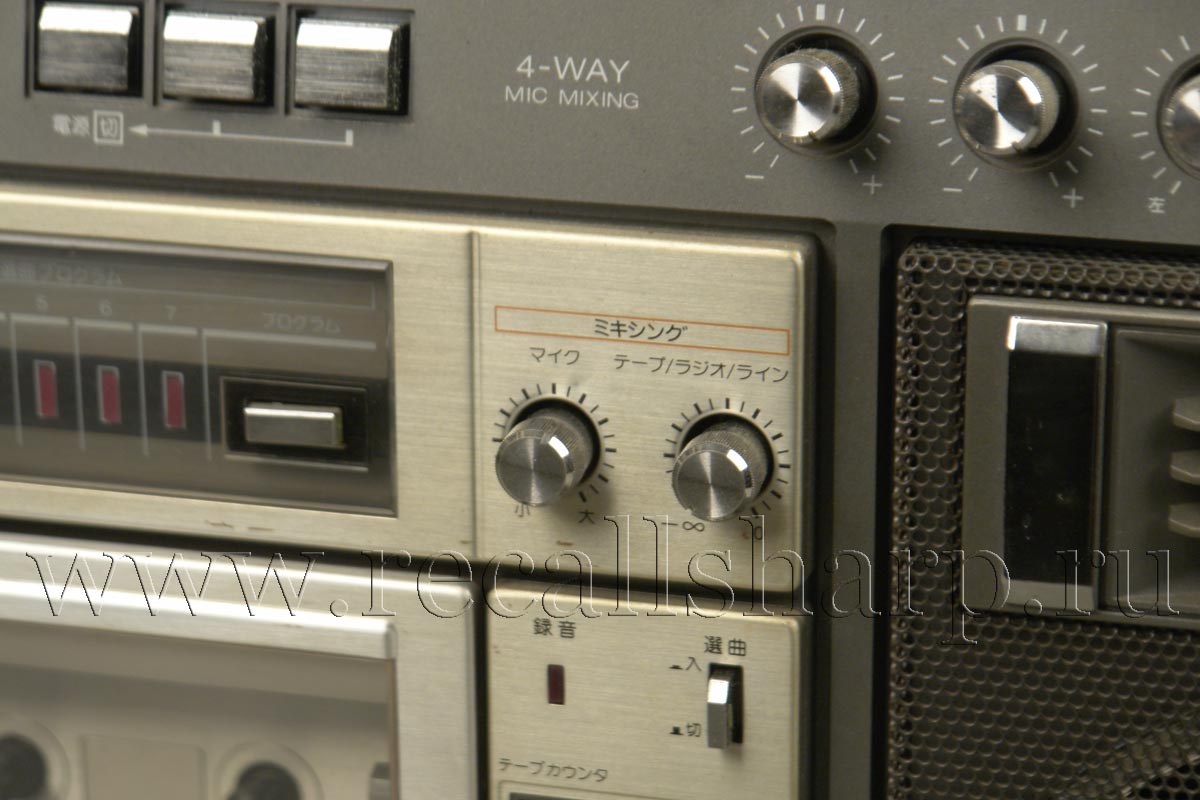

                                                      MIX MIC; sensitivity 0.8 mV/applicable microphone impedance
                                                      200-600Ω

                                                     LINE IN; sensitivity 130 mV/47 kΩ
over
                                                     PHONO; sensitivity 3.9 mV/47 kΩ
over
OUTPUT;                                        LINE OUT; sensitivity 0.42 V/2.2kΩ
under
                                                        EXTSP;3-8Ω

                                                        HEADPHONES; 8Ω
OTHERS;                                        DC IN; 13.2V (12-15 V)
                                                        AC IN
                                                        EXT ANTENNA and EARTH
                                                        PHONO EARTH
DIMENSIONS:                                    563 mm (W) x 325 mm (H) x 139 mm (D)


WEIGHT:                                            7.5kg  without batteries
Specifications are subject to change without notice.
