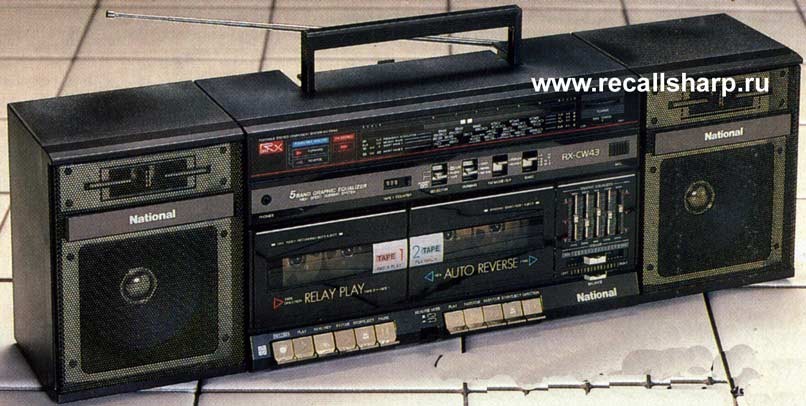

National RX-CW43



: 1987


SPECIFICATIONS

<RADIO>

Radio Frequency Range:

FM; 88-108 MHz
SW2; 7.0-22 MHz
MW; 525-1605 kHz
SW1 2.3-7.0 MHz



Frequency Range:

70-12,000 Hz


Recording System: DC bias,

Erasing system Magnet erase

Track System: 4-track 2-channel stereo recording and playback


Tape speed: 4.8 cm/s



PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME: Approx. 110 seconds with C-60 cassette tape

Power Requirement:
<GENERAL>
Power Requirement:
AC; 110-127/200-220/230-250V , 50/60 Hz

Power consumption; 30W (AC only)

Battery; 12 V (Eight "UM-1", D size batteries)

Car Battery; with optional car battery cord RP-9550

Power Output: 15W (7.5Wx2)…(RMS max)


Speaker: Woofer; 12cm PM Dynamic Speaker (3Ω)

Tweeter; 2cmx4cm Ceramic Speaker(1.5kΩ)


Jacks:
Input;
MIX MIC; sensitivity 5 mV/applicable microphone impedance

200-600 Ohm

LINE IN; sensitivity 300 mV/50 kΩ

Output;

EXT SP; 2.7- 8 Ω

HEADPHONES;32Ω(Ø3.5mm)

Dimensions: Total Size

(WxHxD) 637x199x162 mm

Main unit

344(W)x199(H)x162(D)

Speaker Box

151(W)x199(H) x133(D)


Weight: 5.0 kg without batteries
(not included)


:
Panasonic RX-CW43 L
