AKAI 1929 . . 90- , .

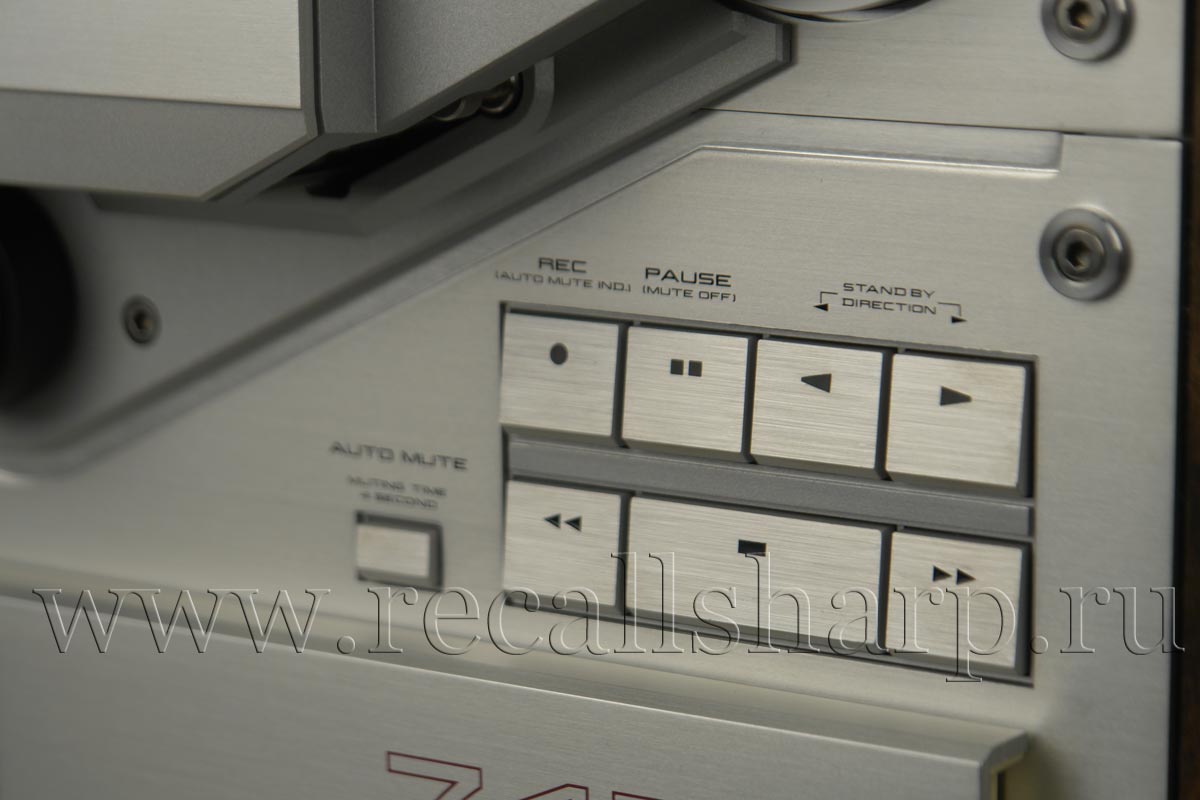

Akai GX-747



: 1981


SPECIFICATIONS
Track System............4 Track 2 Channel Stereo System
Reel Capacity............Up to 10" reel
Heads.................GX head for recording x 2
GX head for playback x 2
Erase head x 2

Motors................AC Servo motor for capstan drive x 1
AC Eddy current motor for reel drive x 2

Tape Speed.............19 cm/s ±0.8% (7-1/2 ips.)
9.5 cm/s +1.0% (3-3/4 ips.)

Wow & Flutter...........Less than 0.03% WRMS, 0.07%

DIN 45500 at 19 cm/s
Less than 0.04% WRMS, 0.09% DIN
45500 at 9.5 cm/s

Tape Winding Time.........75 sec. using 360 m
(1,200 ft.)

Tape Frequency Response........25 to 33,000 Hz ±3 dB at 19 cm/s
25 to 26,000 Hz ±3 dB (0 VU)
25 to 25,000 Hz ±3 dB at 9.5 cm/s
25 to 15,000 Hz ±3 dB (0 VU)

Signal to Noise Ratio........Better than 65 dB at 19 cm/s DIN
45500
Harmonic Distortion........Less than 0.4% at 19 cm/s
Input.................MIC: 0.25 mV (input impedance 5.0
kohms)
Required microphone impedance:
600 ohms
Line: 70 mV (input impedance 100
kohms)

Output................Line: 0.775V at 0 VU
Required load impedance: more than
20 kohms
Phone: 100 mV/8 ohms at 0 VU

DIN..................Input: 2 mV (input impedance 10
kohms)
Output: 0.3V
Required load impedance: more than
20 kohms

Power Requirements........120V 60 Hz for U.S.A. & Canada
220V 50 Hz for Europe except U.K.
240V 50 Hz for U.K. & Australia
110V/120V/220V/240V, 50/60 Hz
switchable for the other countries.

Dimensions.............440(W) x 483(H) x 256(D) mm
(17.3 x 19.0 x 10.1 inches)

Weight................21 kg (46.4 lbs)
STANDARD ACCESSORIES
Empty Reel..................................1
Connection Cords........................1 set
Sensing Tape Kit..........................1
Reel Adaptor.................................2
Operator's Manual........................1
* For improvement purposes, specifications and design are subject to change without notice.


:
Akai GX-747 100 volt
