RMG International B.V. Professional Audio LPR 35 (mod.34520)

AKAI 1929 . . 90- , .

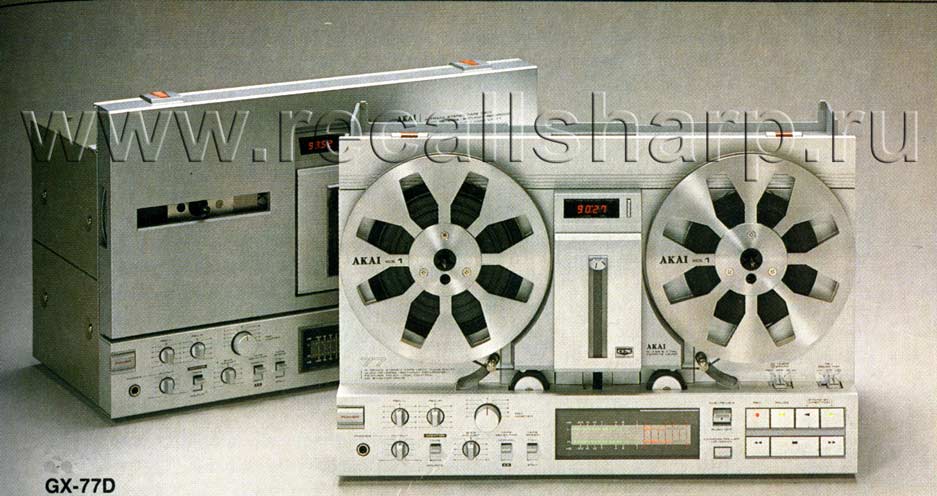

Akai GX-77 D



: 1981


SPECIFICATIONS
Track System............ 4 Track 2 Channel Stereo System
Reel Capacity............Up to 7" reel
Heads................. GX head for recording x 2
GX head for playback x 2
Erase head x 2

Motors................ FG Servo D.C. motor for capstan
drive x 1
D.C. motor for reel drive x 2

Tape Speed.............19 cm/s ±0.8% (7-1/2 ips.)
9.5 cm/s 1.0% (3-3/4 ips.)

Wow & Flutter...........Less than 0.03% WRMS, 0.07%
DIN 45 500 at 19 cm/s
Less than 0.04% WRMS, 0.10%
DIN 45 500 at 9.5 cm/s
Tape Winding Time.........80 sec. using 360 m (1,200 ft.) Tape
Frequency Response........25 to 33,000 Hz 3 dB (-20 VU) at
(Using a EE tape) 19 cm/s; 25 to 26,000 Hz 3 dB
(0 VU)
25 to 25,000 Hz 3 dB (-20 VU) at
9.5 cm/s; 25 to 15,000 Hz 3 dB
(0 VU)

Signal to Noise Ratio........Better than 63 dB at 19 cm/s
DIN 45500
Harmonic Distortion........Less than 0.5% at 19 cm/s
Input................. Line: 70 mV (input impedance 47 kohms)

Output................Line: 0.775V at 0 VU
Required load impedance:
more than 20 kohms
Phone: 1.3 mW/8 ohms at 0 VU DIN..................Input 2.0 mV
(input impedance 10 kohms)
Output: 0.3V
Required load impedance:
more than 20 kohms

Power Requirements........120V 60 Hz for U.S.A. & Canada
220V 50 Hz for Europe except U.K.
240V 50 Hz for U.K. & Australia
110V/120V/220V/240V, 50/60 Hz
switchable for the other countries.

Dimensions.............440(W) x 244(H) x 227(D) mm
(17.3 x 9.6 x 8.9 inches)

Weight................17.0 kg
(37.5 lbs)
STANDARD ACCESSORIES
Sensing Tab Kit............................. 1 set
Connection Cords............................ 1 set
Empty Reel............................... 1
Operator's Manual............................ 1
* For improvement purposes, specifications and design are subject to change without notice.


:
Akai GX-77 100volt
Akai GX-77 Black 100 volt
