Год начала выпуска: 1980
Регион: Европа
TECHNICAL DATA
Track System: 4 track, 2 channel stereo/monaural system

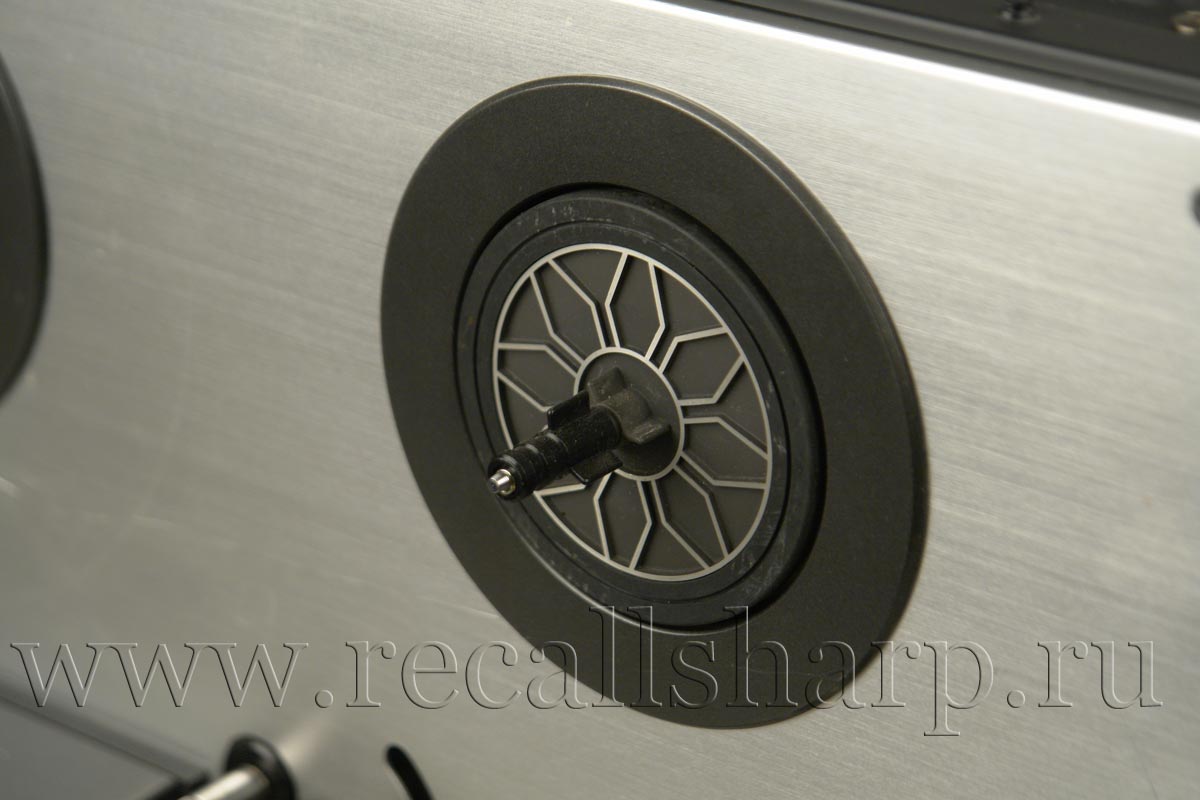

Reel Capacity: Up to 7" reel
Tape Speed: 7-1/2 and 3-3/4 ips
Wow and Flutter: Less than 0.08% WRMS
Frequency Response: 30 Hz to 24,000 Hz (±3 dB) at 7-1/2 ips
30 Hz to 16,000 Hz (±3 dB) at 3-3/4 ips
Distortion: Less than 1% (1,000 Hz "0" VU)
Signal-to-Noise Ratio: Better than 60 dB (measured via tape
with peak recording level)
Erase Ratio: Better than 70 dB
Bias Frequency: 100 kHz

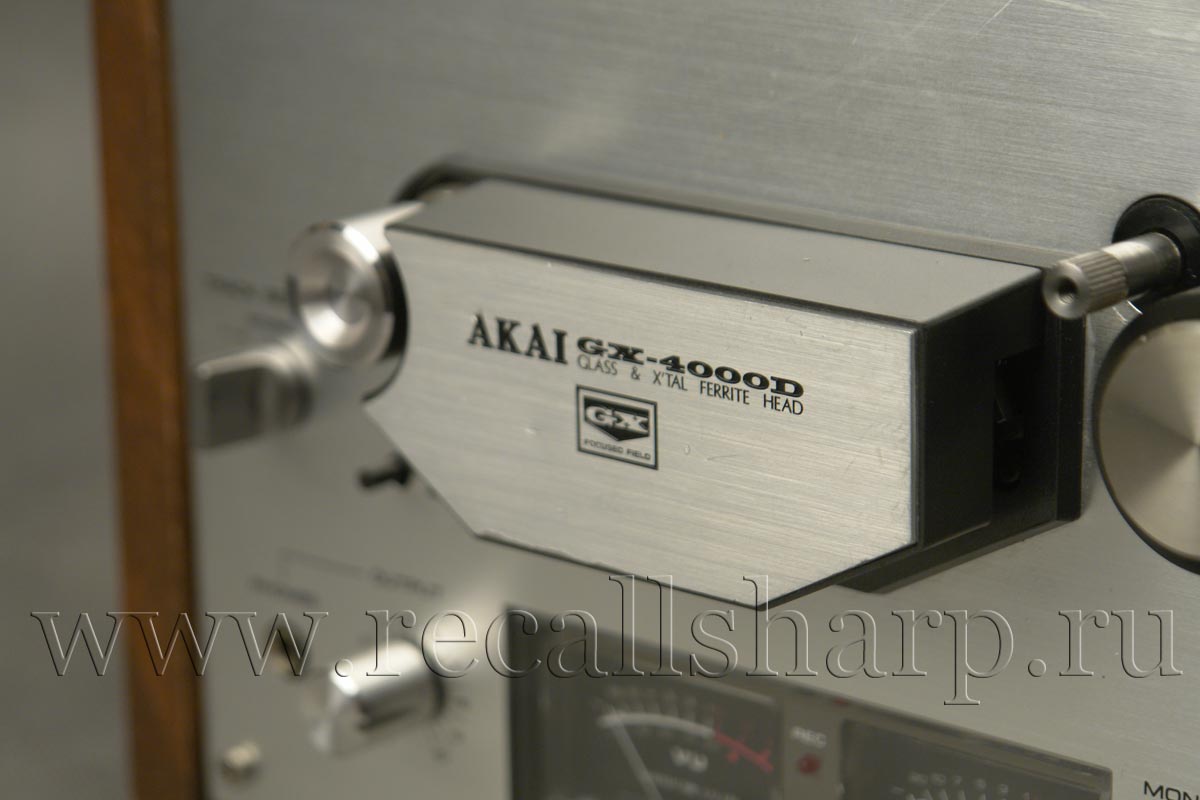

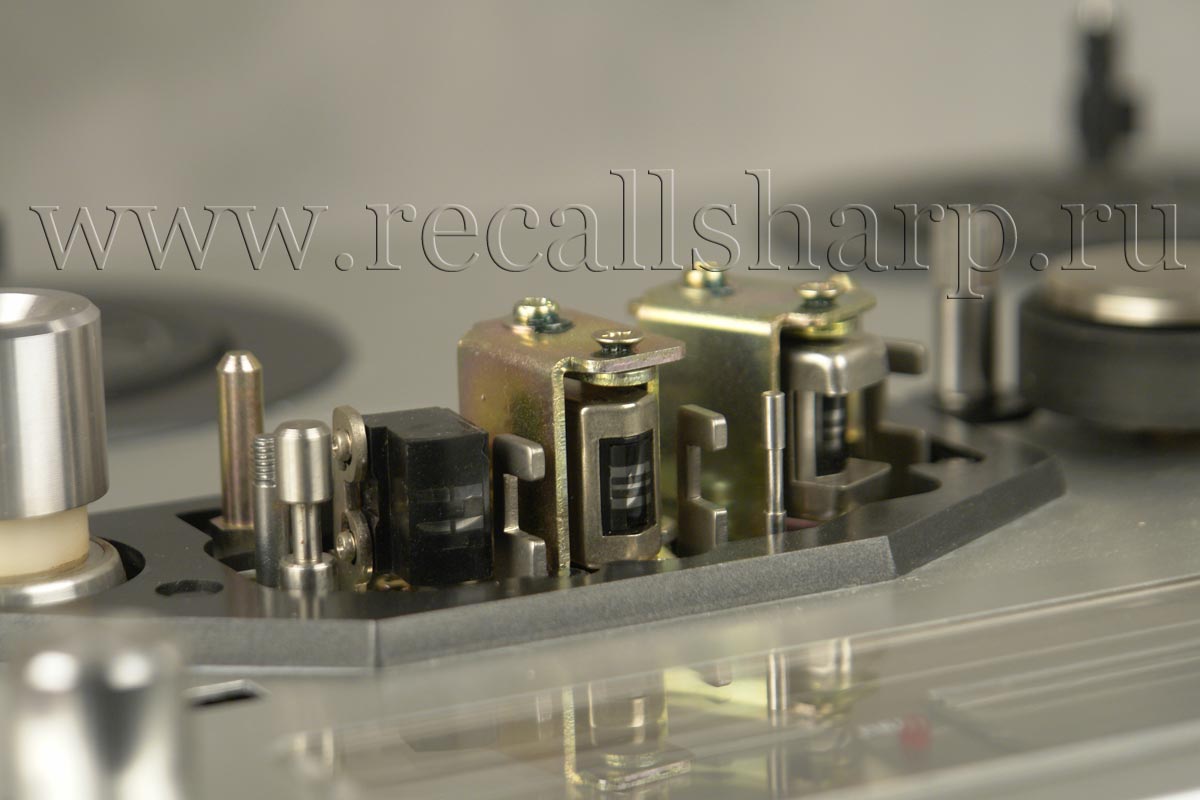

Heads: (3): 1 GX playback head, 1 GX recording head,
1 erase head
Motor: (1): 4-pole induction motor
Fast Forward and Rewind Time: 200 seconds using a 1200 ft.
tape
Output Jacks: Line (2): 0.775V ("0" VU). Required load
impedance: More than 50 kohms
Phone (1): 100 mV/8 ohms
Input Jacks: Microphone (2): 0.25 mV. Required microphone
impedance: 600 ohms
Line (2): 70 mV
Din Jack: Input: 2 mV Output: 0.3V
Power Requirements: 120V, 60 Hz for Canada & U.S.A.
220/240V, 50 Hz for European Countries & Australia
110/120/220/240V (switchable), 50/60 Hz for the other
Countries
Dimensions: 440(W) x 315(H) x 230(D) mm (1 7.3 x 12.4 x 9.1")
Weight: 13.2 kg. (29.1 lbs) * For improvement purposes, specifications and design are
subject to change without notice.
STANDARD ACCESSORIES
Connection Cord..................................1

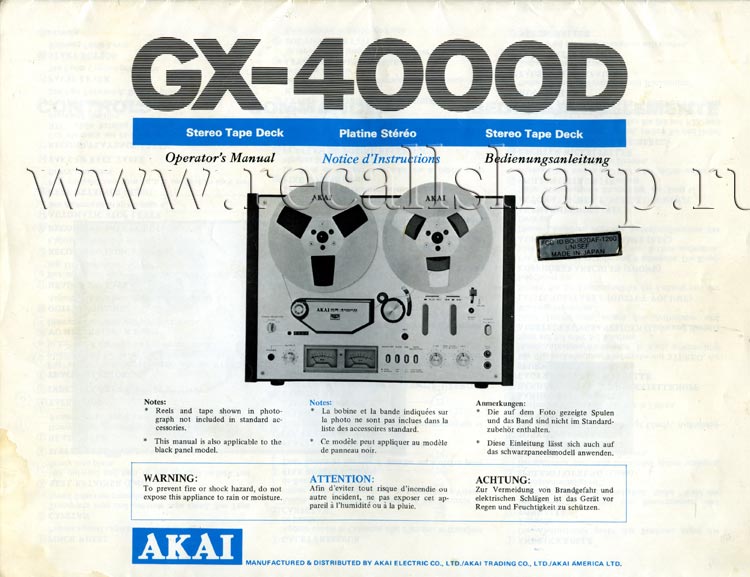

Operator's Manual.................................1
|
