Aiwa 1951 . 1967 . 2002 Aiwa - Sony, .

, ...

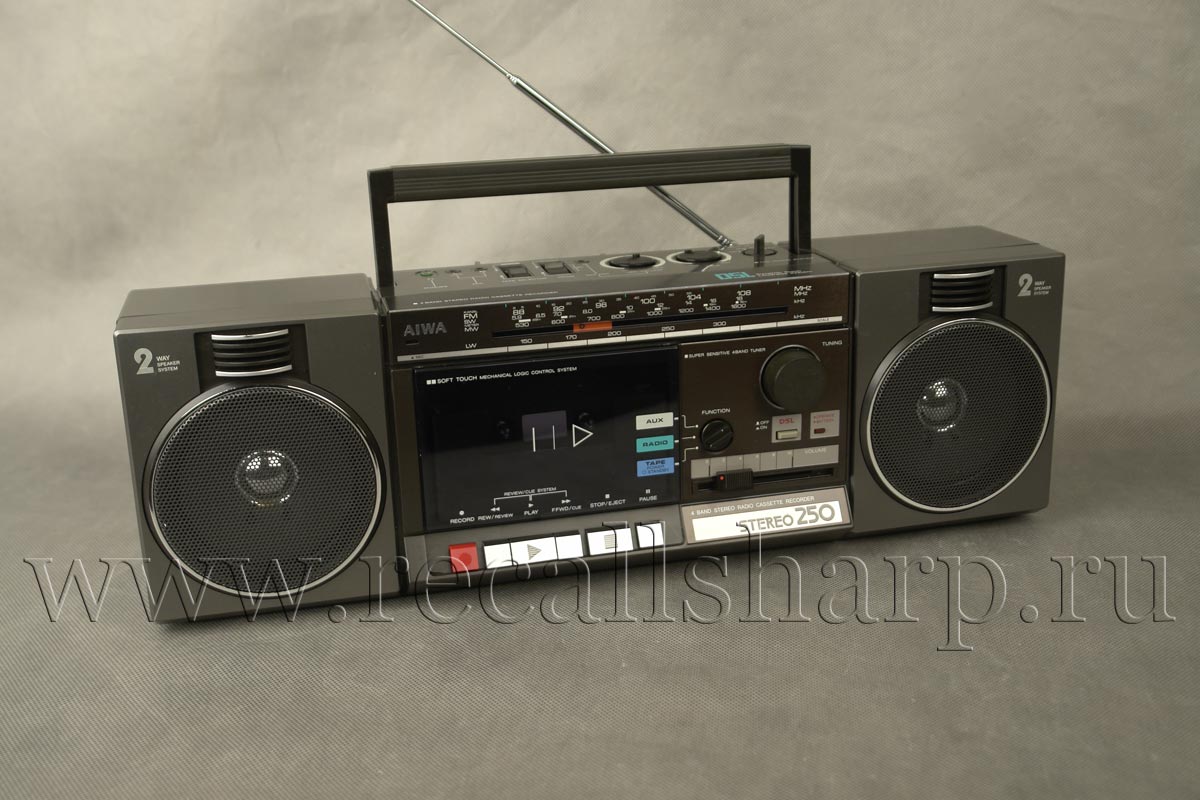

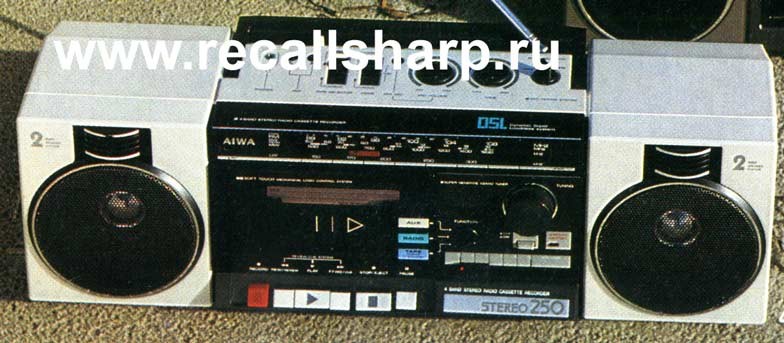

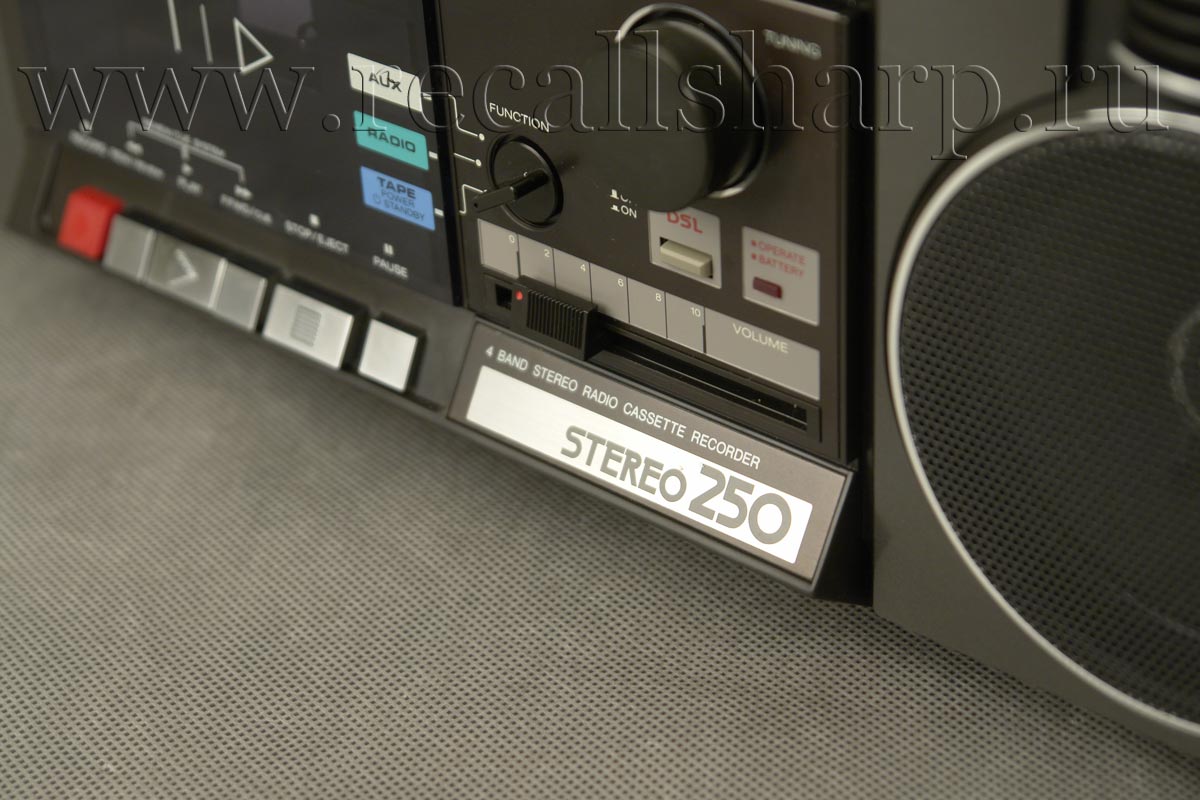

Aiwa CS-250 Z



: 1983


SPECIFICATIONS

GENERAL
Power source: AC 110/220/240V, 50/60Hz

DC 9V (6 UM-1, batteries or external DC supply)

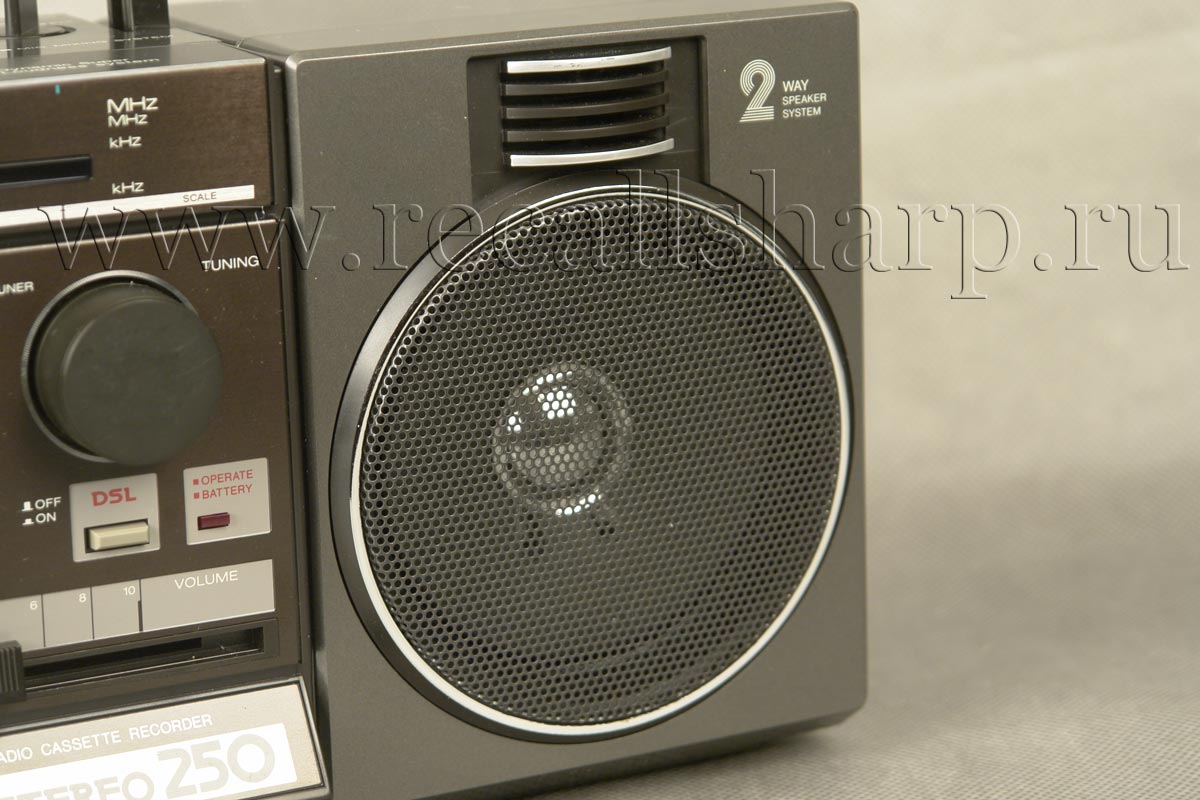

Speakers: 100mm (Woofer) 2;

20mm (Tweeter) 2
Output power: 7W ( 3.5 W. + 3.5W.)
Semiconductors: 6-IC's (Integrated circuits)

17-Transistors

1-FET's

11-Diodes

1-LED
Dimensions: Width; 478mrn

Depth; 159mm

Height; 139mm
Weight: 3.2 kg. (without batteries)

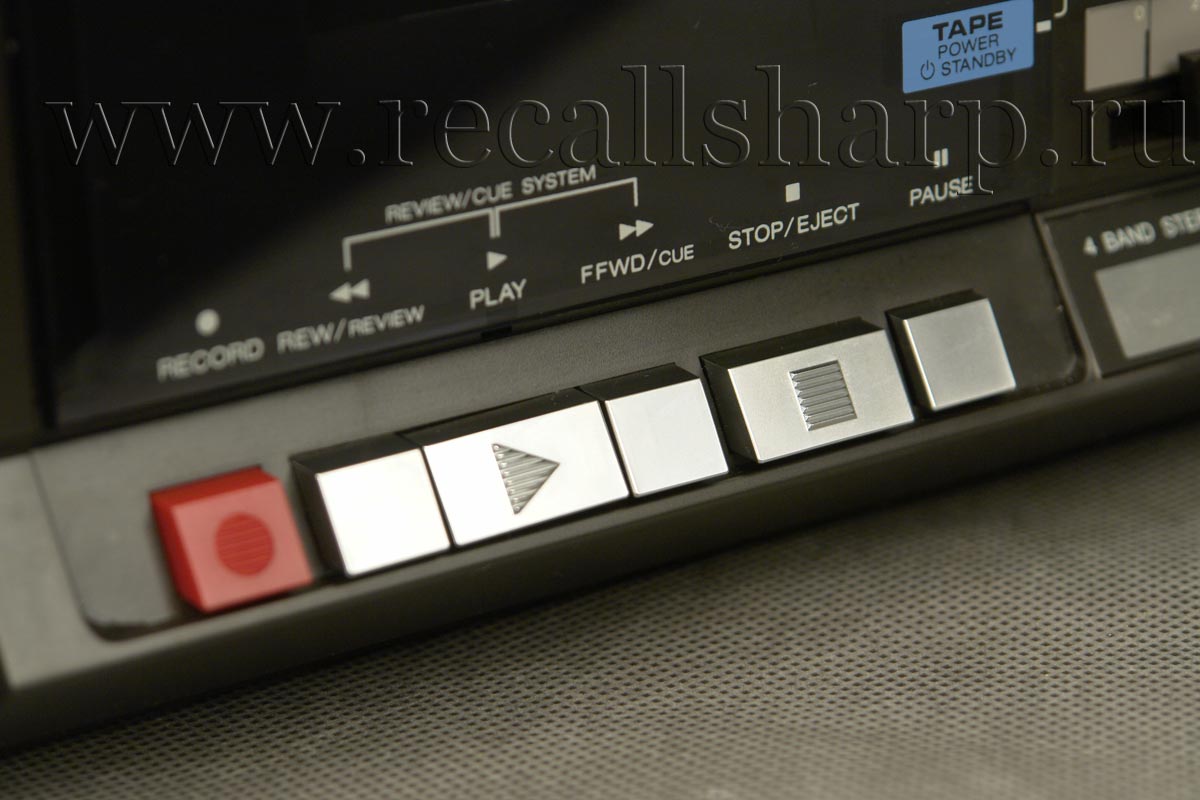

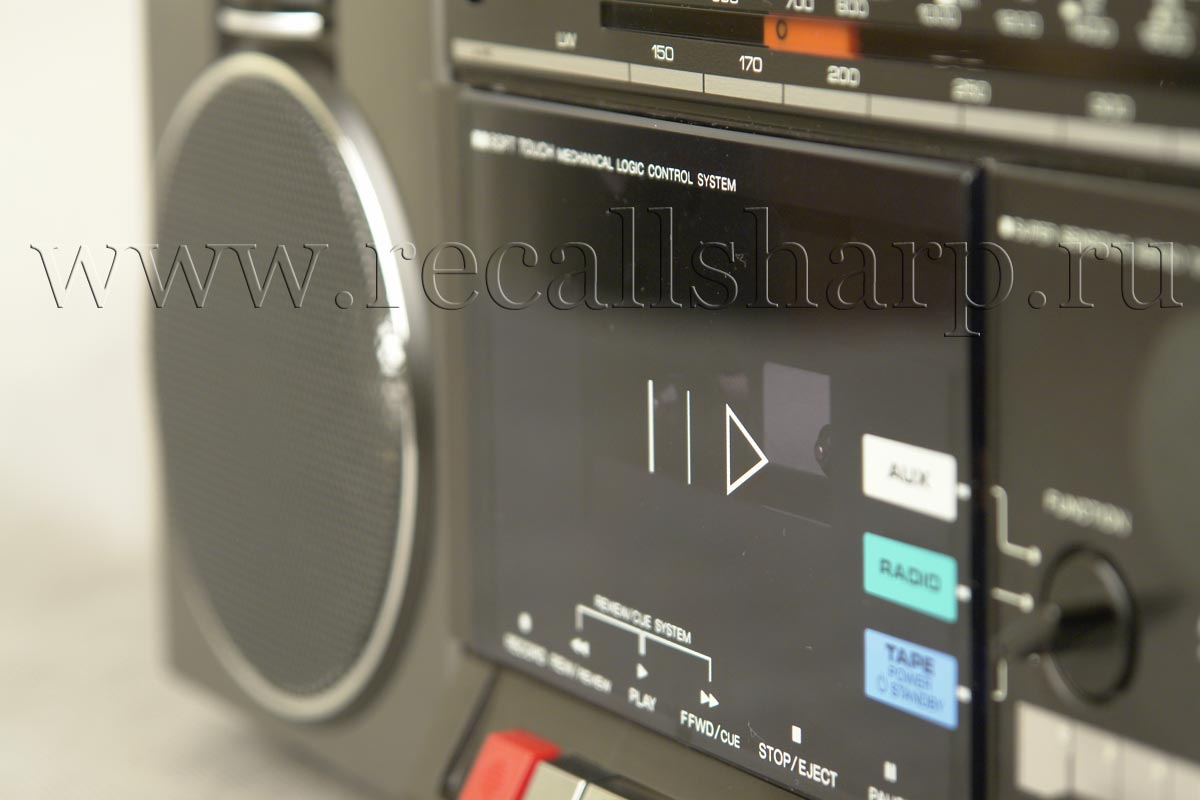

TAPE RECORDER/PLAYER
Tape: Philips-type compact cassette tape
Frequency response:

40Hz to 15000Hz (CrO2 tape)

40Hz to 12500HZ (normal tape)
S/N ratio: 52 dB(normal tape)
Wow and flutter: 0.08% WRMS

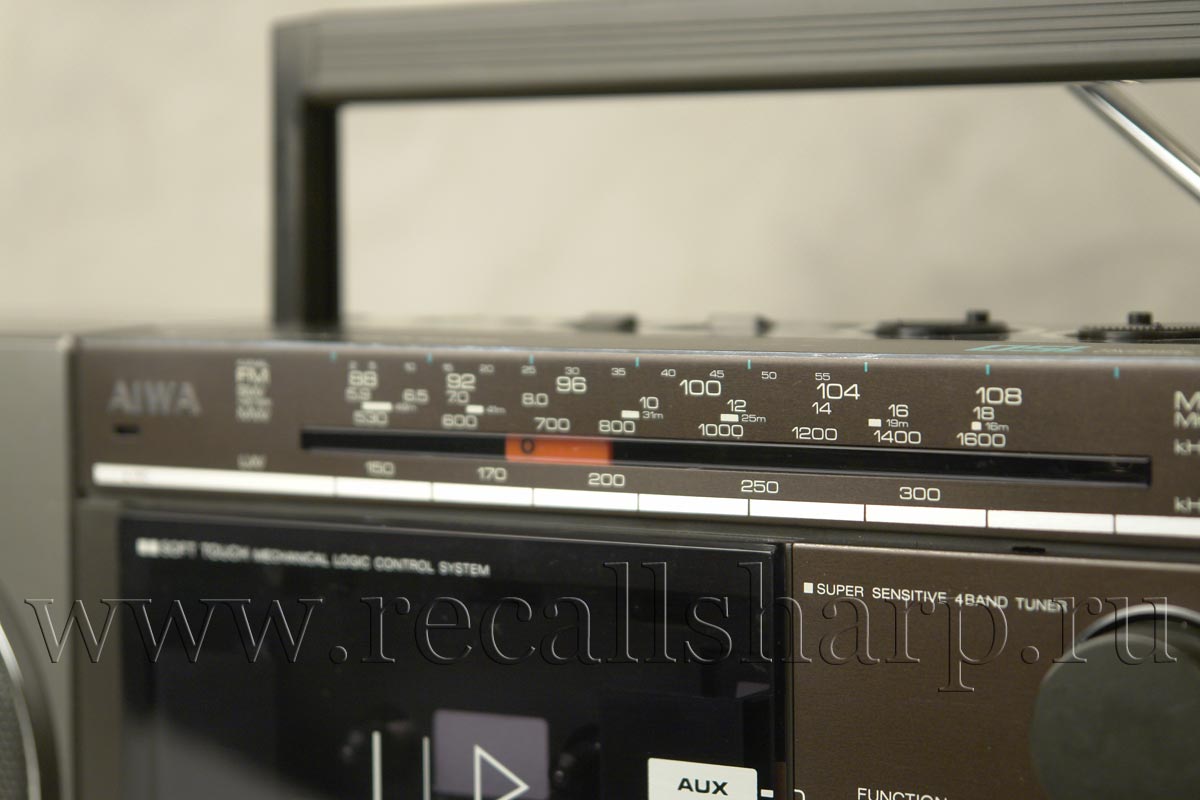

RADIO

Frequency range: AM; 530 kHz to 1605 kHz

SW; 5.9MHz to 18 MHz

LW; 150kHz to 285 kHz

FM; 87.5 MHz to 108MHz

The manufacturer reserves the right to vary specifications, design, or use alternative materials as may be deemed necessary or desirable at any time, any such change or variations being of a kind as not to reduce the quality, performance or appearance.
