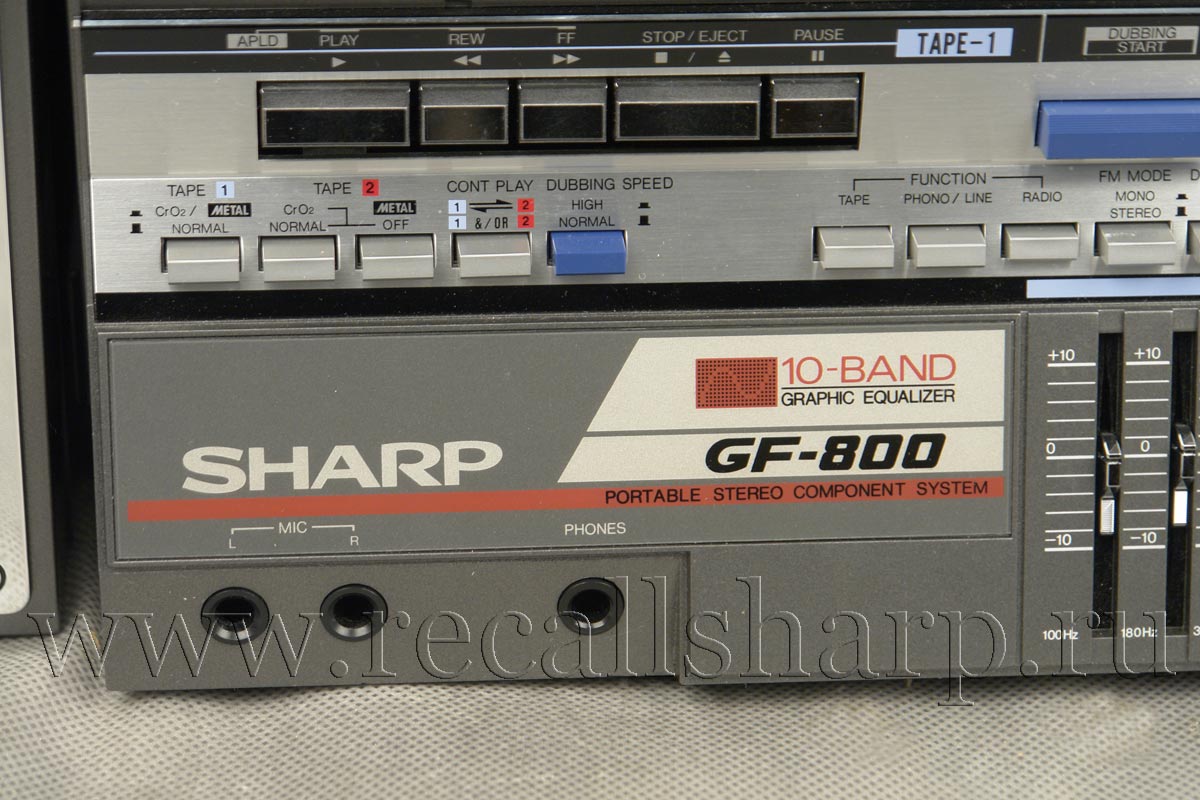

Sharp GF-800 H (D)



: 1985

PDF:

SPECIFICATIONS (SHARP 800H)
Power source: AC 110V - 127V and 220 -240V, 50/60Hz

DC 1 5V (UM/SUM-1 or R20 type 10,

or external 15V DC)
Output power: MPO:30W (15W + 15W) (AC operation)

(DIN 45 324) RMS: 26W (13W +13W) (DC operation, 10% distortion)
Dimensions: Width; 680 mm (26-13/16")
Height;225mm (8-7/8")

Depth; 180mm (8-1/4")
Weight: 8.8kg(19.4lbs.) without batteries

TAPE RECORDER
Tape: Compact cassette tape
Frequency response: 30Hz- 14,000Hz (normal tape)
30Hz -16,000Hz (CrO2 tape)
30Hz - 17,000Hz (metal tape)
Signal/noise ratio: 55 dB (Deck 1, playback)

60 dB (Deck 2, recording with Dolby NR)
Input impedance: External mic; 600 ohms

Phono/line in; 50 kohms/50 kohms
Loaded impedance: Headphones; 8 ohms 32 ohms

External speakers; 8 ohme- 16 ohms

Line out; 0.6V/50 kohms

RADIO
Frequency range: LW:150 kHz -285 kHz

MW:526.5kHz -1606.5kHz

SW:5.95 MHz-18 MHz

FM; 87.6MHz - 108 MHz

SPEAKER
Speakers: 16cm (6-1/2") free-edge woofer 2 ,

5 cmtweeter 2
Impedance: 8 ohms
Input: 26W (maximum)


:
