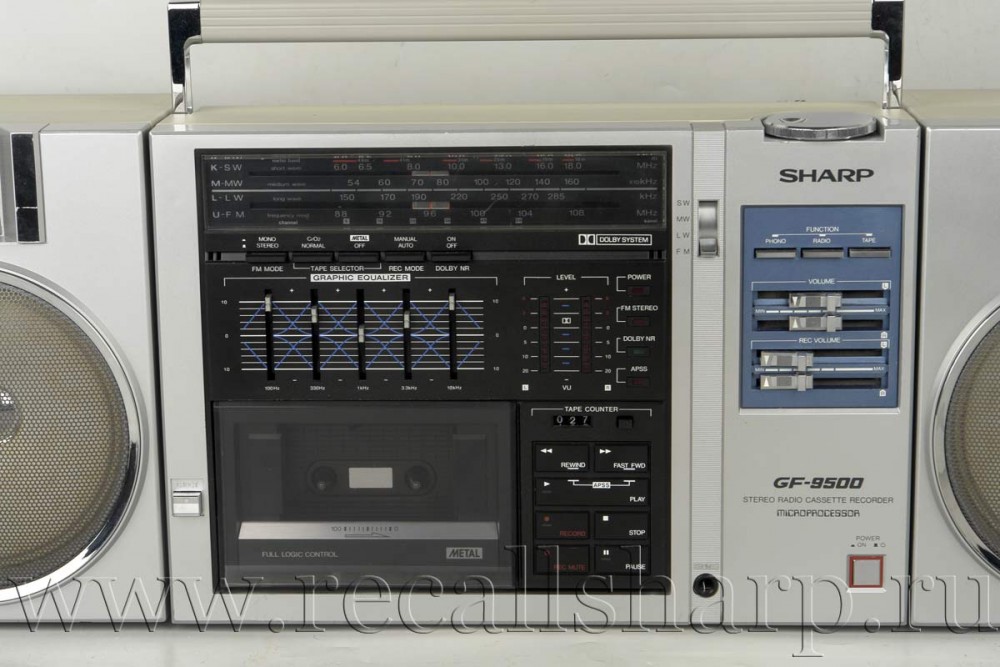

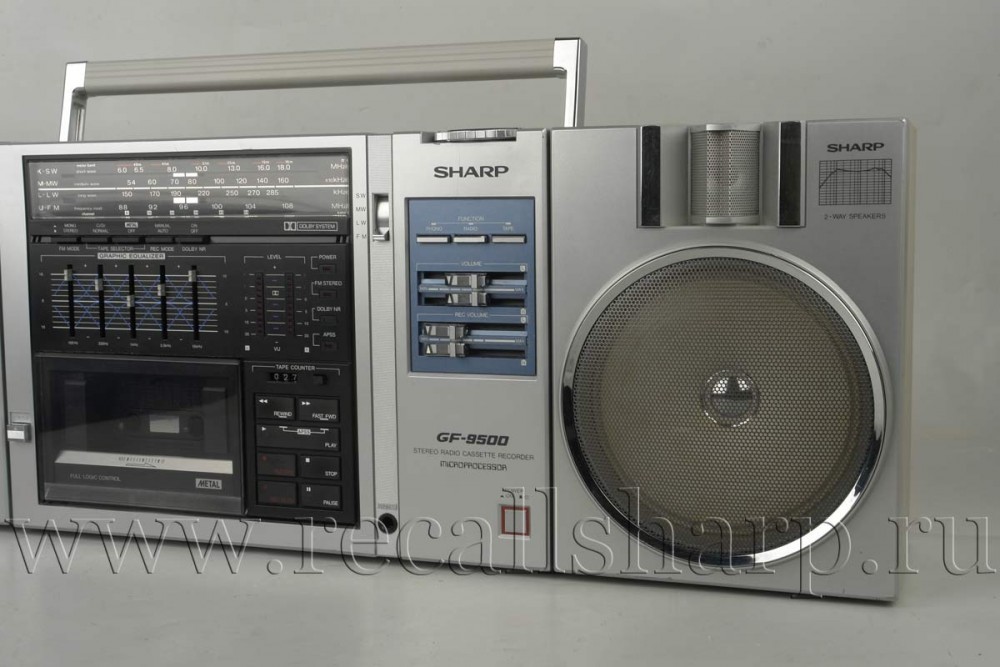

Sharp GF-9500 H



: 1982


SPECIFICATIONS

Power source: AC 110V ~ 120V and 220V ~ 240V,

50/60Hz

DC 15V (UM/SUM-1, R 20, HP-2 or D type x 10, or external 15V DC)

Output power: MPO; 20W (10W + 10W) (AC operation)

(DIN 45 324) RMS; 15W (7.5W + 7.5W) (DC operation)

Semiconductors: 15 ICs

51 transistors

40 diodes

9 LEDs

Dimensions: Width; 670mm (26-3/8")

Depth; 125mm (4-15/16")

Height; 225mm (8-7/8")

Weight: 6.4kg (14 lbs.) without batteries

TAPE RECORDER Tape: Compact cassette tape

Frequency response: 40Hz - 14,000Hz (normal tape)

40Hz - 16,000Hz (Cr02 tape)

40Hz - 17,000Hz(metal tape)

Signal/noise ratio: 50dB (normal tape, Dolby NR off)

60dB (metal tape, Dolby NR on)

Wow and flutter: 0.15%(DIN45 511)

Input sensitivity and impedance: External mic;600ohms

Phono;50kohms

Record/playback DIN socket; 0.7mV/5.6kohms

Output level and loaded impedance:Headphones;8ohms— 25ohms

External speakers;3.2ohms 8ohms

Record/playback DIN socket;

0.65V/50 kohms

RADIO

Frequency range: LW; 150 kHz-285 kHz

MW; 520 kHz - 1,620 kHz

SW; 5.95 MHz- 18.0MHz

FM; 87.6 MHz- 108MHz

SPEAKERS


Speakers: 16cm(6-1/2")woofer x2


Horn type tweeter x2


Impedance: 3.2 ohms


Maximum power handling capacity:


10W (maximum)

Sharp reserves the right to make design and specification changes for product improvement.













:
