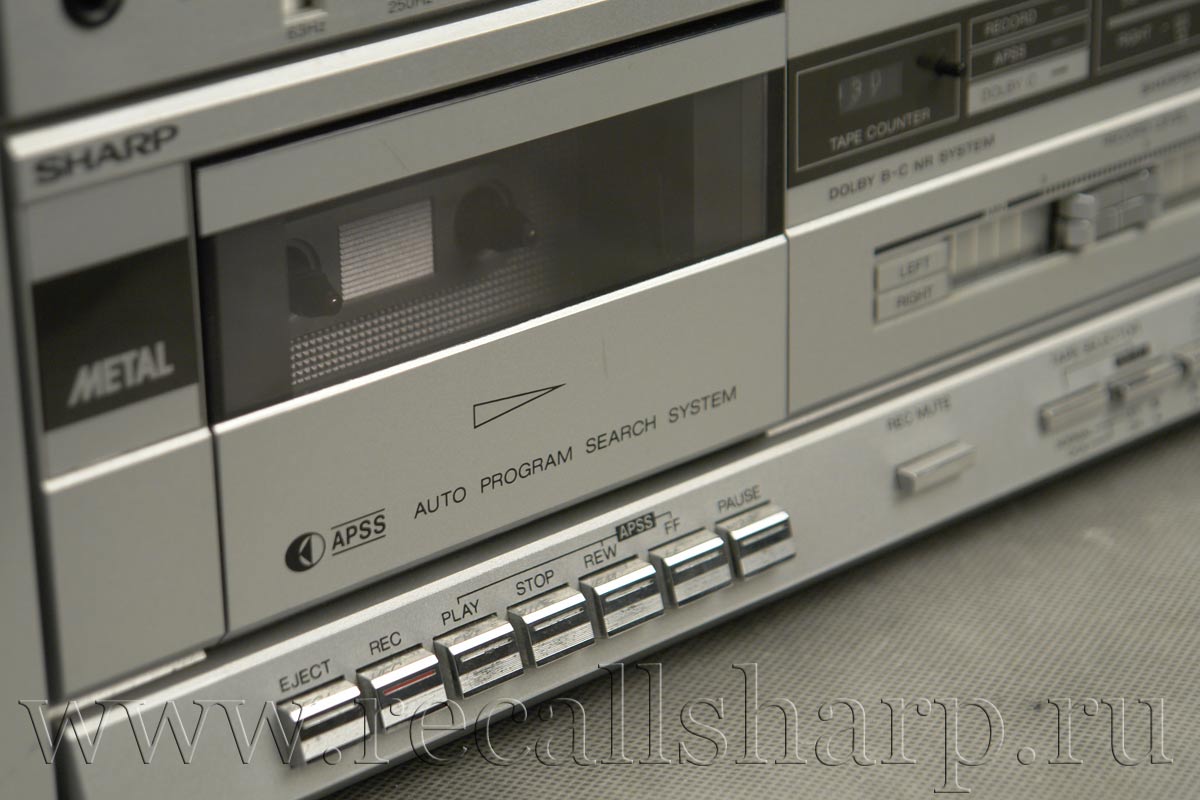

Sharp GX-300 H



: 1982


SPECIFICATIONS
GENERAL
Power source: AC 110V, 220V or 240V, 50/60Hz
DC 15V (UM/SUM-1, R 20, HP-2 or D type x 10, or external 15V DC)

Power consumption: 120W (AC)

Semiconductors: 16 ICs (Integrated circuits)
30 transistors 1 FET
31 diodes
15 LEDs (Light Emitting Diode)

Dimensions: (Main unit)
Width; 330 mm (13") Height; 250 mm (9-7/8") Depth; 202 mm (8") (System)
Width; 683 mm (26-7/8") Height; 250mm (9-7/8") Depth; 208 mm (8-1/4")

Weight: (Main unit) 6.1 kg (13.4 lbs)
(without batteries) (System) 11.1 kg (24.4 lbs)
AMPLIFIER
Music power output: 2 x 25W/4 ohms, at 0.8% T.H.D.

Continuous power output: 2 x 15W/4ohms, at 0.8% T.H.D.
(AC operation)

Frequency response: 70Hz — 30kHz (±3 dB)

Graphic equalizer: 63Hz (±10dB)
250Hz (±10dB)
1kHz (±10dB)
4kHz (±10dB)
16kHz (±10dB)
Input sensitivity/impedance:
AUX (DIN); 150mV/47 k ohms

PHONO (DIN); 3mV/47 k ohms, 100pF
Output impedance: Speakers; 4 ohms
Headphones; 8 ohms
CASSETTE DECK
Tape: Compact cassette tape
Tape speed: 4.8cm/sec.
Frequency response:

Normal tape;

40—12,500Hz ± 3dB
40-13,000Hz (DIN 45 500)

Cr02 tape;

40-13,000Hz ± 3dB
40-14,000Hz (DIN 45 500)

Metal tape;

40-14,000Hz ±3dB
40-15,000Hz (DIN 45 500)

S/N ratio: Dolby NR off; 52 dB
Dolby NR on(B-type); 10dB (at over 5kHz)

Dolby NR on(C-type); 20dB (1kHz -10kHz)

Wow and flutter: ±0.2% (DIN record/playback)
±0.14% (DIN playback)

TUNER
Frequency range:

FM; 87.6 ~ 108 MHz
MW; 520 ~ 1620 kHz

LW; 148.5 ~ 370 kHz

Usable sensitivity (mono):
FM; 2.0mV (40kHz deviation, S/N
26dB) MW; 350mV/m (30% modulation, S/N
20dB) LW; 250mV/m (30% modulation, S/N 10dB)

FM stereo sensitivity: 50mV (40kHz deviation, S/N 46dB) FM S/N ratio (mono): 65 dB
FM selectivity: 50 dB (+- 300kHz, 40kHz deviation)
Total harmonic distortion:
FM; 0.3% (Mono)
0.4% (Stereo) MW/LW; 1.2%

FM stereo separation: 30 dB
SPEAKER BOX
The specifications can be applied to either of the right or left
speaker enclosure:
Type: 2-way
Enclosure: Closed type
Speaker: 16cm (6-1/2") woofer
5cm (2") tweeter
Frequency response: 50 ~20,000Hz (DIN 45 500)
Rated power: 25W (DIN 45 573)
Music power: 32W (DIN 45 500)
Rated impedance: 4 ohms
Sound pressure level: 86 dB/W at 1m
Dimensions: Width; 174 mm(6-7/8")
Height; 250 mm (9-7/8") Depth; 208 mm (8-1/4")
Weight: 2.5 kg (5.5 lbs)
SHARP reserves the right to make design and specification changes for product improvement.






:
